Defining the F670-IN4-F32 / F670-OUT4-F32

F670 cards are fully compatible with the Kramer 670T/670R and 671T/671R HDMI/DVI
transmitters and receivers for non-HDCP content.

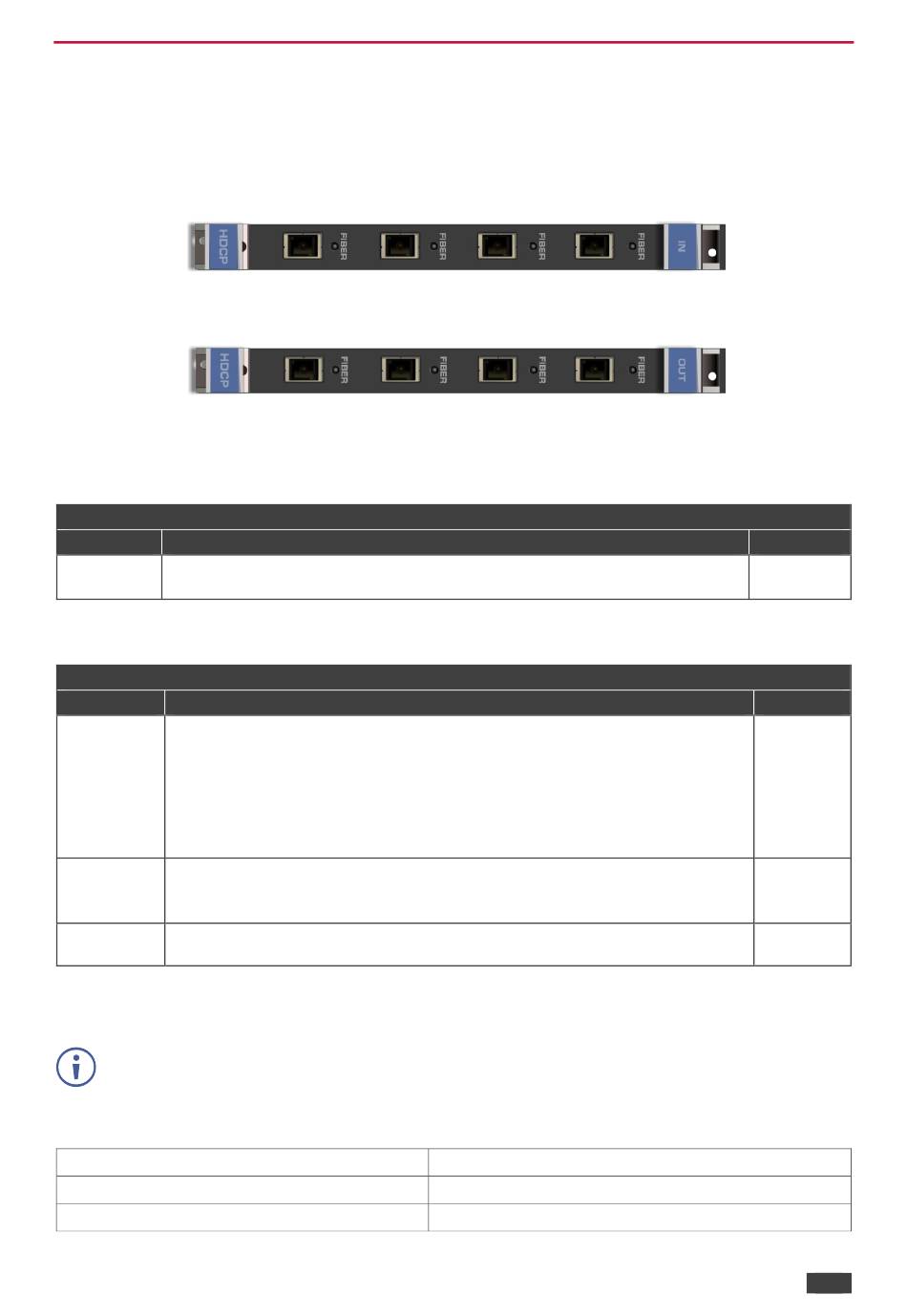

The F670-IN4-F32 is a 4-Input HDMI over OM3 Fiber Card (F-32):
The F670-OUT4-F32 is a 4-Output HDMI over OM3 Fiber Card (F-32):
F670-IN4-F32 / F670-OUT4-F32 Configuration
The F670-IN4-F32 configuration table appears as follows:
F670-IN4-F32 Input Card
Parameter Description
HDCP Turn HDCP on and off.
*0=EN, 1=DIS.
The F670-OUT4-F32 configuration table appears as follows:
F670-OUT4-F32 Output Card
Parameter Description
HDMI Sets the output signal format (Display, HDMI, DVI).
Display—the output is set automatically based on the EDID of the connected
display.
HDMI—Force the output to be HDMI.
DVI—Force the output to be DVI.
Note: When selecting the DVI option and fast switching is enabled, you must
ensure that the source is DVI compatible.
Deep Color Sets maximum color bit depth (Auto, 8 bit).
Auto—Set the color depth automatically.
8 bit—Limit the color depth to 8 bits.
Switch When switching between different sources the switching time can be reduced
Speed by setting the fast switch level (Ex-fast Switch, Fast Switch or Normal Switch).
F670-IN4-F32 / F670-OUT4-F32 Technical Specifications
F670 cards must be used with multi-mode glass fiber cables with SC connections, such as
the Kramer C-SC/SC/OM3.
The following table defines the technical specifications.
PORTS:
BANDWIDTH PER CHANNEL:
TOTAL BANDWIDTH:
VS-3232DN-EM – Using the Input / Output Cards
4 SC
2.25Gbps
6.75Gbps
Kramer Electronics Ltd.
Default
0
Default
Display
Auto
Normal
Switch
