Defining the DT-IN4-F32 / DT-OUT4-F32

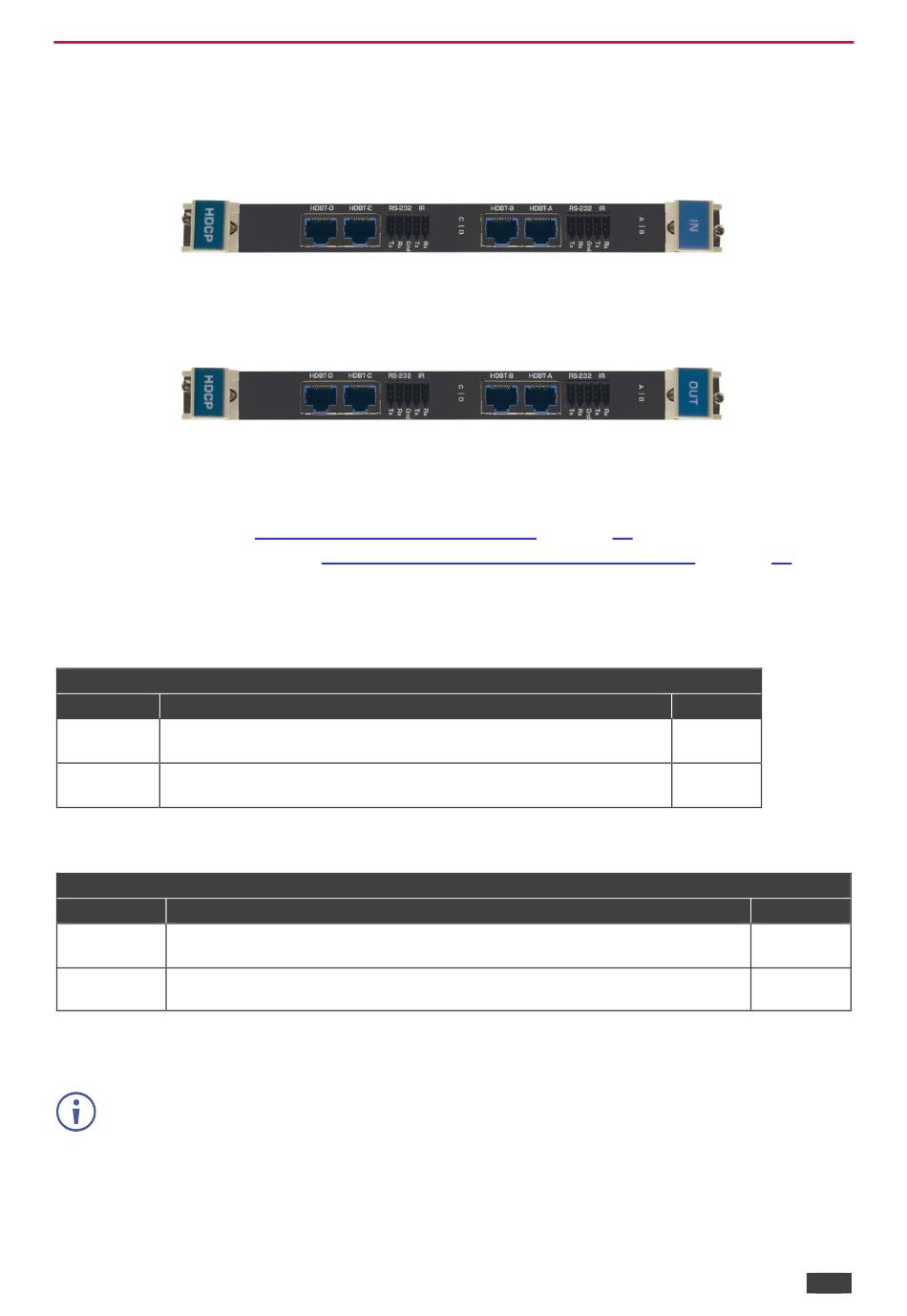

The DT-IN4-F32 is a 4-Input 4K60 4:2:0 HDMI over HDBaseT card (F-32).
The DT-IN4-F32 inputs four HDBaseT signals with bidirectional RS-232 and IR from the line
to the chassis:
The DT-OUT4-F32 is a 4-Output 4K60 4:2:0 HDMI over HDBaseT card (F-32).
The DT-OUT4-F32 outputs four HDBaseT, bidirectional RS-232 and IR signals from the
chassis to the line:
The DT-IN4-F32 and DT-OUT4-F32 cards feature Kramer Equalization and re-Klocking™
technology. The cards include terminal block for connecting RS-232 and an IR emitter, such
as the C-A35M/IRE, or an IR receiver, such as the C-A35M/IRRN. For information on the IR
wiring scheme, see
connecting via RS-232, see
DT-IN4-F32 / DT-OUT4-F32 Configuration
The DT-IN4-F32 configuration table appears as follows:
DT-IN4-F32 Input Card
Parameter Description
Reset Input Re-power: power cycle the port.
Factory default: perform a factory reset of the port to default values.
HDCP Turn HDCP on and off.
*1=EN, 0=DIS.
The DT-OUT4-F32 configuration table appears as follows:
DT-OUT4-F32 Output Card
Parameter Description
Reset Re-power: power cycle the port.
Output
Factory default: perform a factory reset of the port to default values.
Switch When switching between different sources the switching time can be reduced
Speed by setting the fast switch level (Fast Switch or Normal Switch).
DT-IN4-F32 / DT-OUT4-F32 Technical Specifications
HDBT cards must be used with twisted pair cables with RJ-45 connections, such as Kramer
BC-UNIKAT shielded twisted pair (U/FTP) cables.
VS-3232DN-EM – Using the Input / Output Cards
IR Wiring Scheme for HDBT Cards
Connecting to the VS-3232DN-EM via RS-232
Kramer Electronics Ltd.
on page 49. For information on
on page 15.
Default
Re-power
1
Default
Re-power
Normal
Switch
