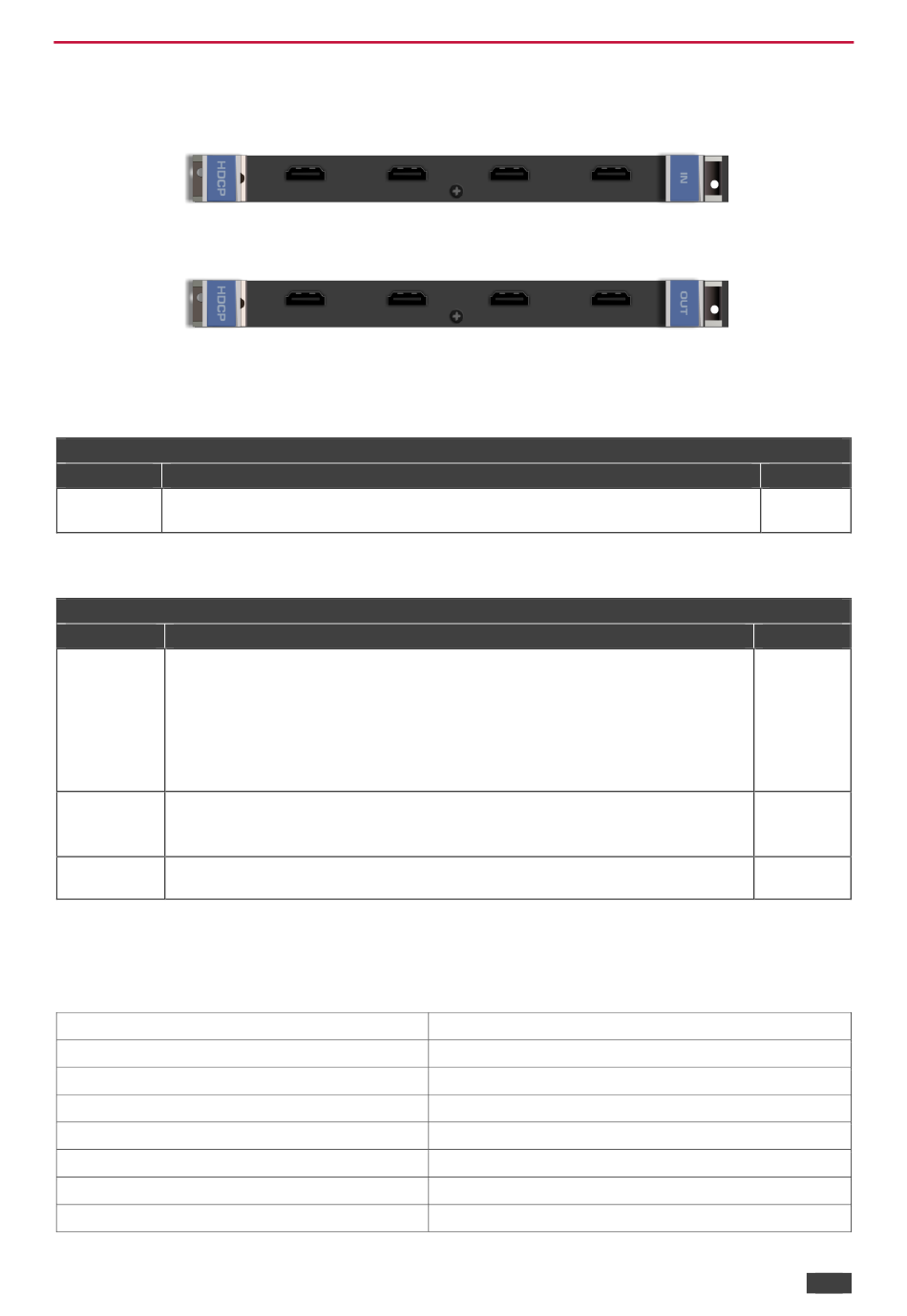

Defining the H-IN4-F32 / H-OUT4-F32
The H-IN4-F32 is a 4-Input HDMI Card (F-32):
The H-OUT4-F32 is a 4-Output HDMI Card (F-32):
H-IN4-F32 / H-OUT4-F32 Configuration
The H-IN4-F32 configuration table appears as follows:
H-IN4-F32 Input Card
Parameter
Description
HDCP
Turn HDCP on and off.
*0=EN, 1=DIS.
The H-OUT4-F32 configuration table appears as follows:
H-OUT4-F32 Output Card
Parameter
Description
HDMI
Sets the output signal format (Display, HDMI, DVI).
Display—the output is set automatically based on the EDID of the connected
display.
HDMI—Force the output to be HDMI.
DVI—Force the output to be DVI.
Note: When selecting the DVI option and fast switching is enabled, you must
ensure that the source is DVI compatible.
Deep Color
Sets maximum color bit depth (Auto, 8 bit).
Auto—Set the color depth automatically.
8 bit—Limit the color depth to 8 bits.
Switch
When switching between different sources the switching time can be reduced
Speed
by setting the fast switch level (Ex-fast Switch, Fast Switch or Normal Switch).
H-IN4-F32 / H-OUT4-F32 Technical Specifications
The following table defines the technical specifications.
PORTS:
BANDWIDTH PER CHANNEL:
TOTAL BANDWIDTH:
MAXIMUM RANGE:
3D PASS THROUGH:
POWER CONSUMPTION:
OPERATING TEMPERATURE:
STORAGE TEMPERATURE:
VS-3232DN-EM – Using the Input / Output Cards
4 HDMI
2.25Gbps
6.75Gbps
15m (49ft)
Supported
Input / Output card: 9W
0° to +40°C (32° to 104°F)
–40° to +70°C (–40° to 158°F)
Kramer Electronics Ltd.
Default
0
Default
Display
Auto
Normal
Switch
50
