Using the Test Module to
Troubleshoot Video Problems
The VS-3232DN-EM
used to diagnose video issues in an operating environment.
The test module may be used in various ways to isolate video problems.
The following examples are based on the video signal paths shown in
VS-3232DN-EM
•
32 inputs and 32 outputs
•
The test module is installed and configured (see
•
33 configured inputs and 33 configured outputs (see
Input and Output Ports

Testing the Projector Output

Signal path: c to d; d to projector.
To test the projector output:
1. Configure Input 33 to Output 33 (see
2. Connect Output 33 to the projector.
3. Set the generated video resolution (see
Video on page 36).
4. Set the pattern for the generated video (see
Video on page 37).
5. Verify that the projector output is as expected.
VS-3232DN-EM – Using the Test Module to Troubleshoot Video Problems
includes a test module that acts as an AV signal generator and can be
device installed as follows:
on page 35)

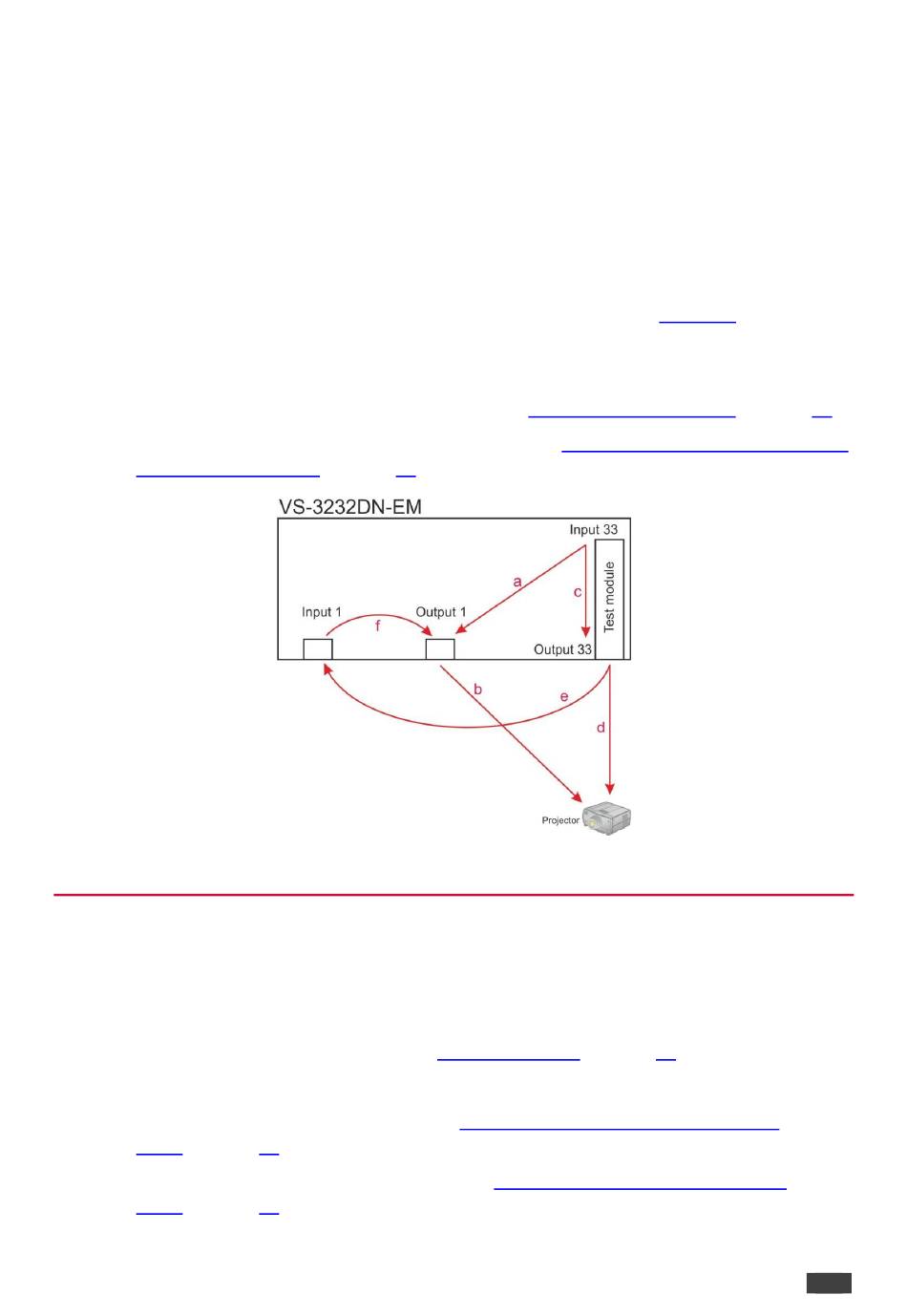

Figure 16: Signal Paths for Isolating Video Problems
Installing the Test Module
Configuring the Number of Installed
Switching Actions on page 21).
Setting the Resolution of the Generated
Setting the Pattern of the Generated
Kramer Electronics Ltd.
Figure 16 and a
on page 37)
