Connecting The Ethernet Port Via A Network Hub Or Switch - Kramer VS-3232DN-EM User Manual

For TCP/IPv4 you can use any IP address in the range 192.168.1.1 to 192.168.1.255
(excluding 192.168.1.39) that is provided by your IT department.
7. Click OK.
8. Click Close.

Connecting the Ethernet Port via a Network Hub or Switch

You can connect the Ethernet port of the
hub or using a straight-through cable with RJ-45 connectors.
VS-3232DN-EM – Connecting the VS-3232DN-EM

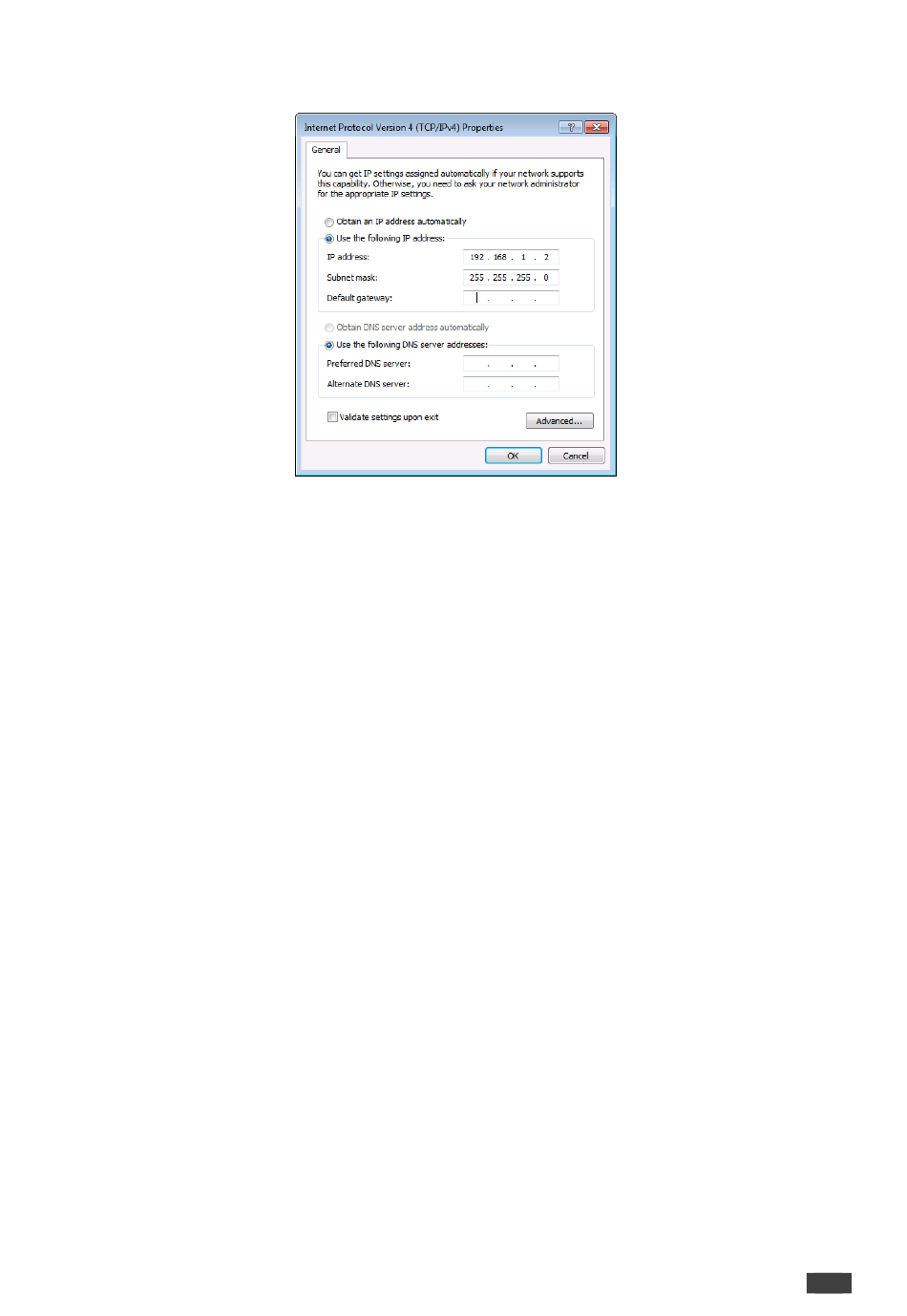

Figure 10: Internet Protocol Properties Window
VS-3232DN-EM
Kramer Electronics Ltd.
to the Ethernet port on a network
