HUMIDITY:
DIMENSIONS:
PRODUCT WEIGHT:
SHIPPING WEIGHT:
STANDARD COMPLIANCE:
SAFETY REGULATORY COMPLIANCE:
ENVIRONMENTAL REGULATORY
COMPLIANCE:

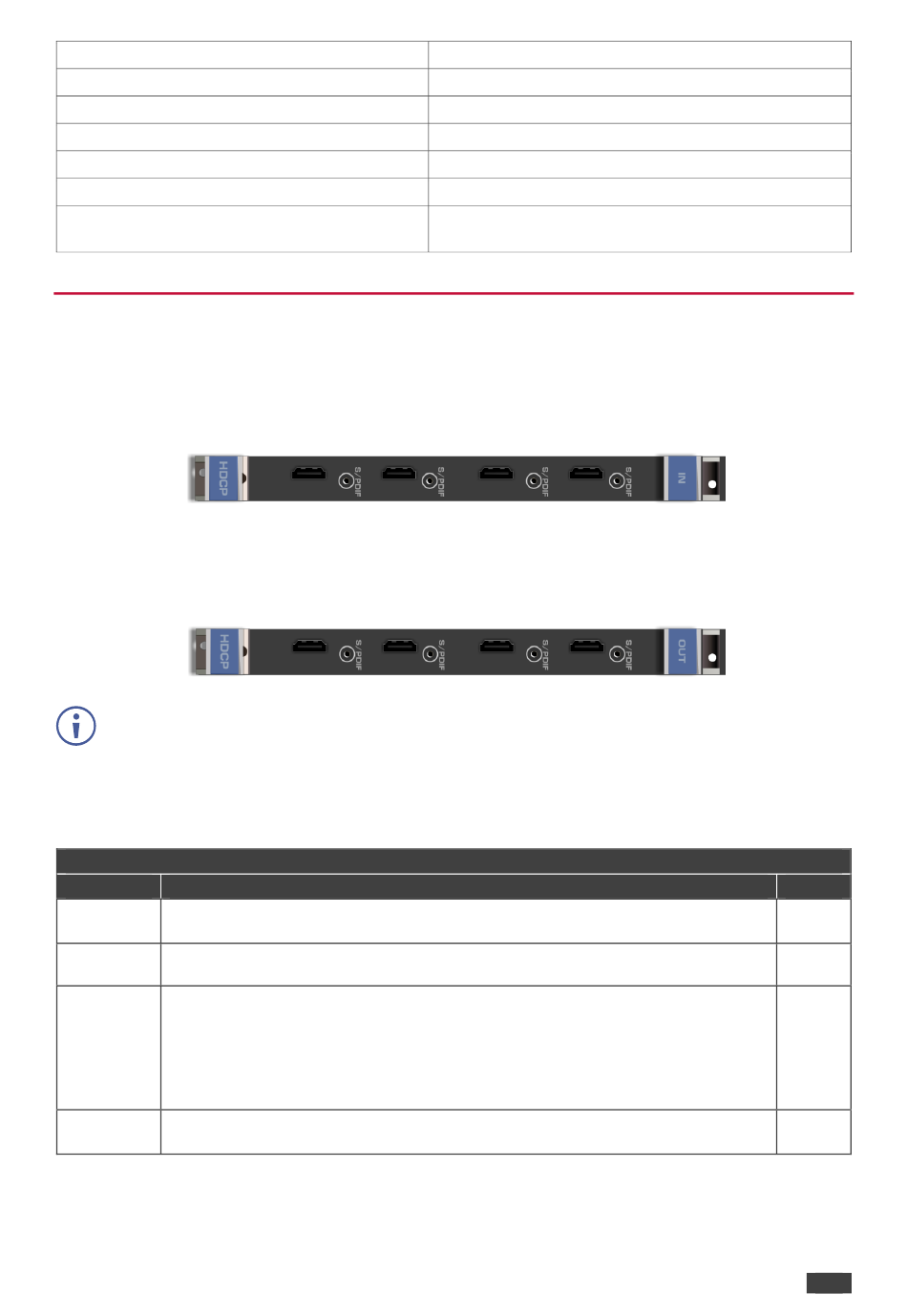

Defining the HAD-IN4-F32 / HAD-OUT4-F32

The HAD-IN4-F32 is a 4-Input HDMI with Digital Audio Card (F-32).
The HAD-IN4-F32 inputs four HDMI signals to the chassis with optional embedding of digital
S/PDIF audio to each HDMI port on the card:
The HAD-OUT4-F32 is a 4-Output HDMI with Digital Audio Card (F-32).
The HAD-OUT4-F32 outputs four HDMI signals from the chassis with de-embedding of digital
S/PDIF audio from each HDMI port on the card:
Each audio jack enables audio insertion/extraction only to/from its corresponding HDMI port.
HAD-IN4-F32 / HAD-OUT4-F32 Configuration
The HAD-IN4-F32 configuration table appears as follows:
HAD-IN4-F32 Input Card
Parameter Description
HDCP Turn HDCP on and off.
*0=EN, 1=DIS.
Color Selects the color space of the internal video bus (input is converted to this color
Space space for internal processing only): RGB, Auto.
Audio Selects the audio source:
Select
Auto—Audio signal selection is controlled by the presence or absence of a plug
in the RCA port. When present, AUD-Digital is selected, when absent, AUD-
Embedded is selected.
AUD-Embedded—HDMI audio is selected.
AUD-Digital—S/PDIF audio is selected.
Reset Input Re-power—Power cycles the port.
Factory—Performs a factory reset to default values of the port.
VS-3232DN-EM – Using the Input / Output Cards
10% to 90%, RHL non-condensing
22cm x 18.8cm x 2cm (8.7" x 7.4" x 0.8") W, D, H
0.23 kg (0.51 lbs) approx.
0.37 kg (0.82 lbs) approx.
HDCP 1.4, HDMI 1.3a
CE, FCC
Complies with appropriate requirements of RoHs and
WEEE
Kramer Electronics Ltd.
Default
0
Auto
Auto
-
