Kramer VS-3232DN-EM User Manual page 11

9 BREAKAWAY Button
10 DEFAULT SETUP Button
11 OUTPUTS/INPUTS
LCD Display
12 IR Receiver
13 IR LED
14 TAKE Button
15 MENU Button
16 LOCK Button
17 Power Supply
18
19 POWER LED
20 ERROR LED
# Feature
◄ (Backward)
21
22 1, 2, 3, 4, 5, 6, 7, 8,
9, 0
► (Forward)
23
VS-3232DN-EM – Introduction
Press to exit a menu (see
Menus
Press to recall the default setup (see
Setup
Displays the outputs (upper row) switched to the selected
inputs (lower row), (see
Displays user interface messages and menus.
Infrared remote control sensor (for future use).
Lights yellow when receiving commands from the IR
remote control transmitter (for future use).
Press to confirm actions (see
Action
Press once to enable the ALL, OFF, STO and RCL buttons
(see
Press again to enter the configuration menu (see
the Config Menu
When in a Menu, press to cycle through the menu items.
Press and hold for approximately 2 sec to lock/unlock the
front panel buttons (see
Buttons
Supplies power to the device.
Lights green when power supply is active and the device is
powered on.
Lights red when an error is detected. Briefly lights red
immediately following a power disruption (e.g., cable
disconnection, power off, and so on).

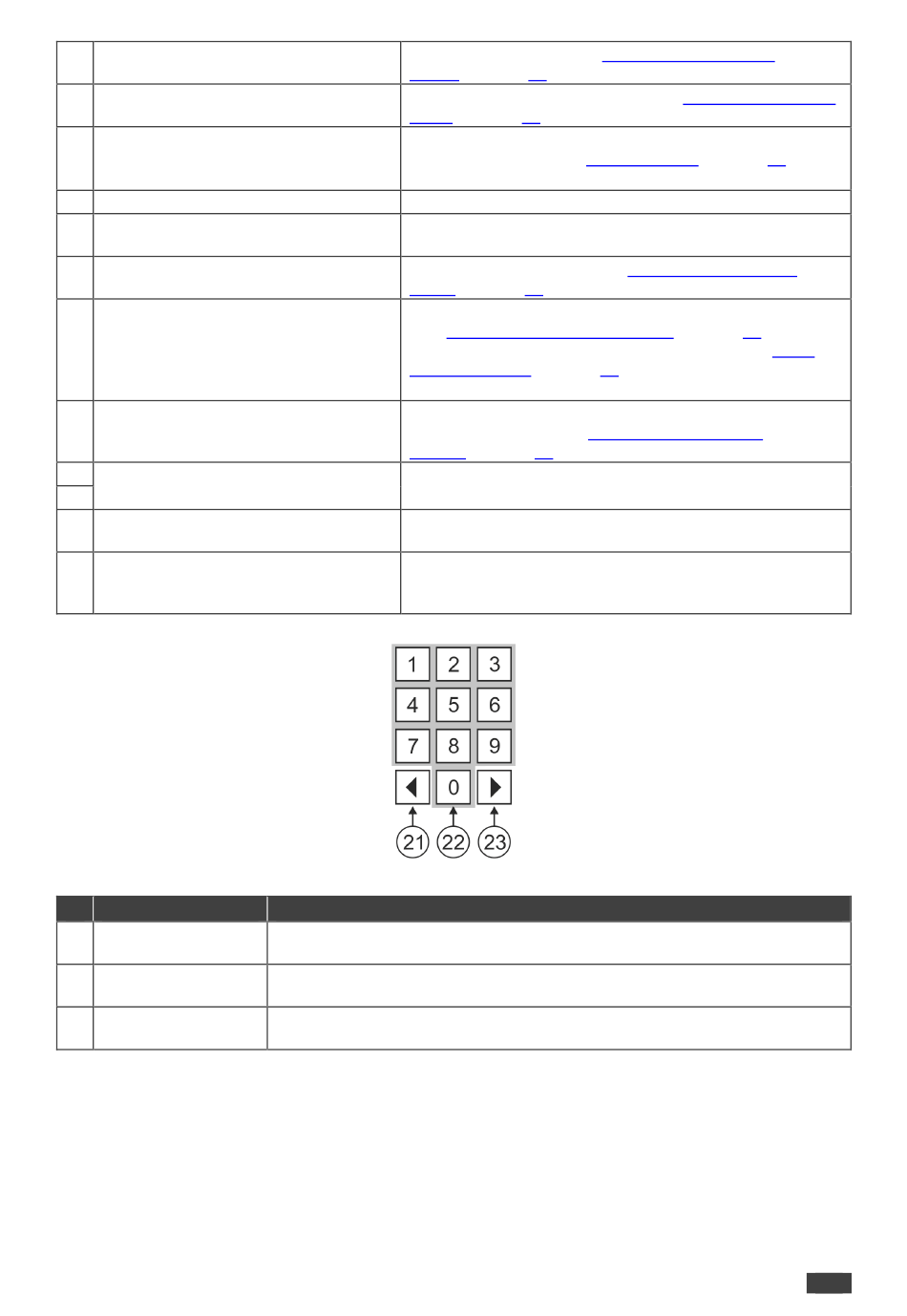

Figure 2: VS-3232DN-EM Front Panel Numeric Keypad
Function
Press to shift the display right (the LCD display only shows 13 cross-points
out of a total of 32).
Numeric keypad, 1 to 0.
Press to shift the display left (the LCD display only shows 13 cross-points out
of a total of 32).
Using the Configuration
on page 24).
on page 23).
Startup Display
on page 21).
Using the Configuration Menus
on page 28).
Locking the Front Panel
on page 23).
Kramer Electronics Ltd.
Recalling the Default
on page 19).
Confirming a Switching
on page 24).
Using
8
