Defining the VGAA-IN4-F32 / VGAA-OUT4-F32

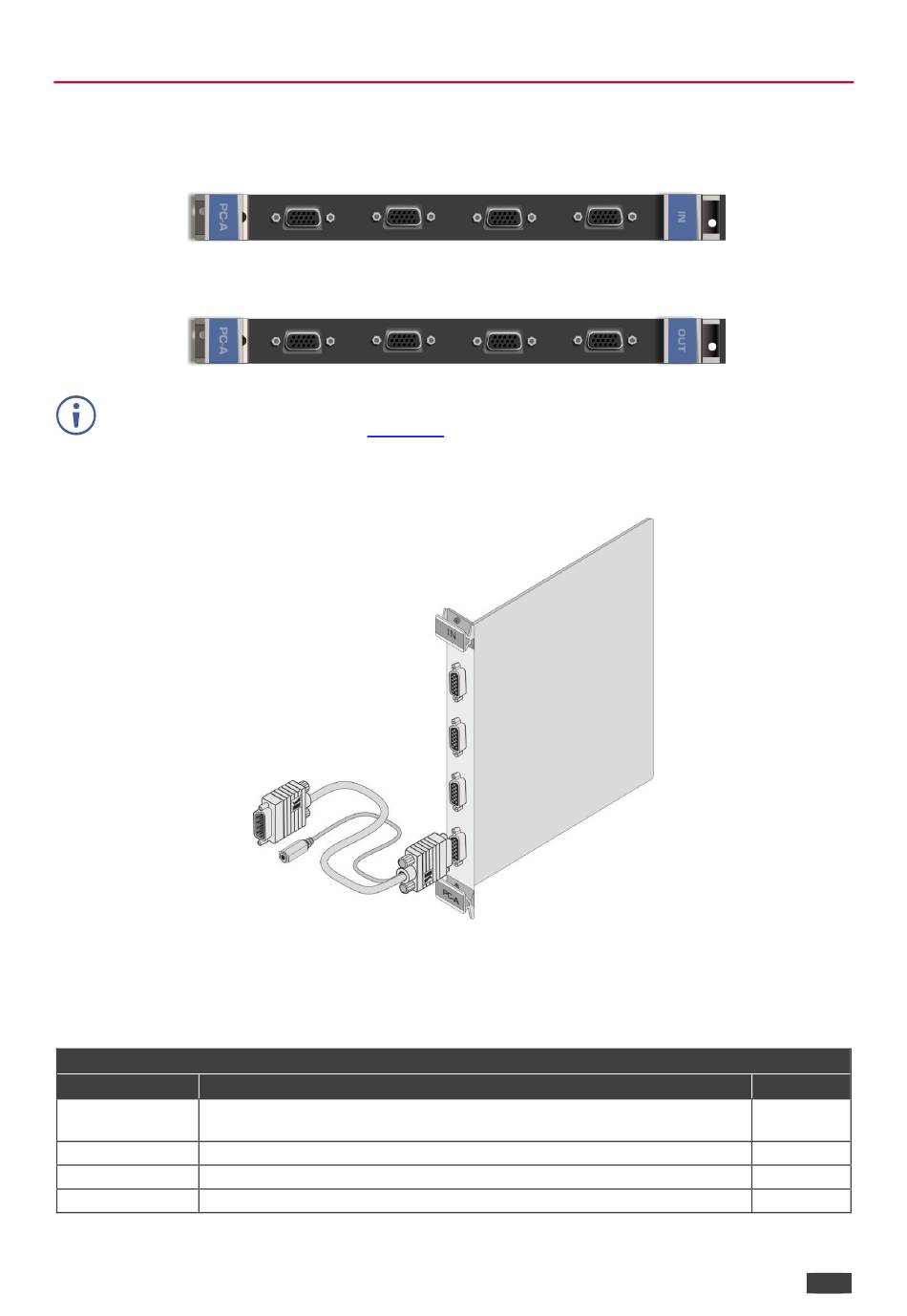

The VGAA-IN4-F32 is a 4-Input VGA with Analog Audio Card (F-32):
The VGAA-OUT4-F32 is a 4-Output VGA with Analog Audio Card (F-32):
Audio output is accessed by connecting the four supplied Kramer C-GF/GMAF-30 cables to
each VGA port as illustrated in
When a multi-channel audio input signal is routed to a card with stereo analog audio outputs,
the analog audio out connectors output the front right and front left audio channels only.
VGAA-IN4-F32 / VGAA-OUT4-F32 Configuration
The VGAA-IN4-F32 configuration table appears as follows:
VGAA-IN4-F32 Input Card
Parameter Description
Resolution Auto, User Defined, Auto Adjust, (see note below table).
Detect
Phase Mode Auto, User Defined, Auto Adjust, (see note below table).
Brightness (0–63)
Contrast (0–63)
VS-3232DN-EM – Using the Input / Output Cards
Figure 15.
Figure 15: Accessing Audio over VGA
Kramer Electronics Ltd.
Default
Auto
Auto
32
32
64
