Using the Test Video Card

Defining the Test Video Card

The Test Video card is a 1-Input/Output DVI Card (F-32), preinstalled in the
VS-3232DN-EM
For information on using the Test Video card for troubleshooting video problems, see
the Test Module to Troubleshoot Video Problems

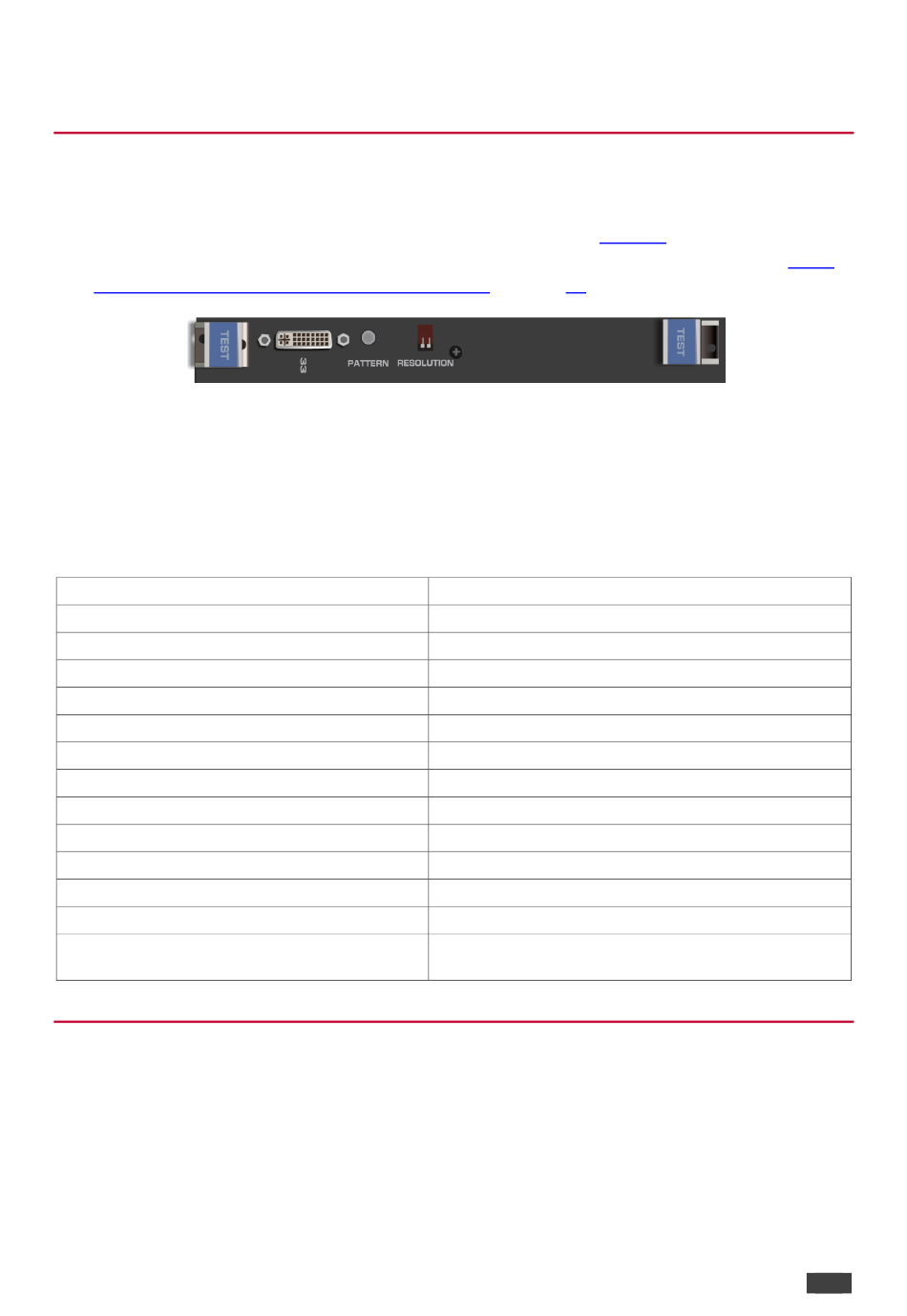

Test Video Card Configuration
N/A
Test Video Card Technical Specifications
The following table defines the technical specifications.
PORTS:
BANDWIDTH PER CHANNEL:
TOTAL BANDWIDTH:
3D PASS THROUGH:
POWER CONSUMPTION:
OPERATING TEMPERATURE:
STORAGE TEMPERATURE:
HUMIDITY:
DIMENSIONS:
PRODUCT WEIGHT:
SHIPPING WEIGHT:
STANDARD COMPLIANCE:
SAFETY REGULATORY COMPLIANCE:
ENVIRONMENTAL REGULATORY
COMPLIANCE:

Setting the Resolution of the Generated Video

The test module generates a range of both PC and HD resolutions which are selected by a
combination of DIP-switches and an on-board jumper (labeled B3). Install the jumper to select
HD resolutions or remove the jumper to select PC resolutions.
VS-3232DN-EM – Using the Test Video Card
for initial setup and installation purposes (see Figure 3
on page 69.
1 DVI-D on a DVI Molex 24-pin (F) connector
2.25Gbps
6.75Gbps
Not Supported
5W
0° to +40°C (32° to 104°F)
–40° to +70°C (–40° to 158°F)
10% to 90%, RHL non-condensing
22cm x 18.8cm x 2cm (8.7" x 7.4" x 0.8") W, D, H
0.15 kg (0.33 lbs) approx.
0.3 kg (0.66 lbs) approx.
HDCP 1.4
CE, FCC, UL
Complies with appropriate requirements of RoHs and
WEEE
Kramer Electronics Ltd.
for more information).
