Defining The Dtaxr-In4-F32 / Dtaxr-Out4-F32 - Kramer VS-3232DN-EM User Manual

The following table defines the technical specifications.
PORTS:
BANDWIDTH PER CHANNEL:
TOTAL BANDWIDTH:
MAXIMUM RANGE:
3D PASS THROUGH:
POWER CONSUMPTION:
OPERATING TEMPERATURE:
STORAGE TEMPERATURE:
HUMIDITY:
DIMENSIONS:
PRODUCT WEIGHT:
SHIPPING WEIGHT:
STANDARD COMPLIANCE:
SAFETY REGULATORY COMPLIANCE:
ENVIRONMENTAL REGULATORY
COMPLIANCE:

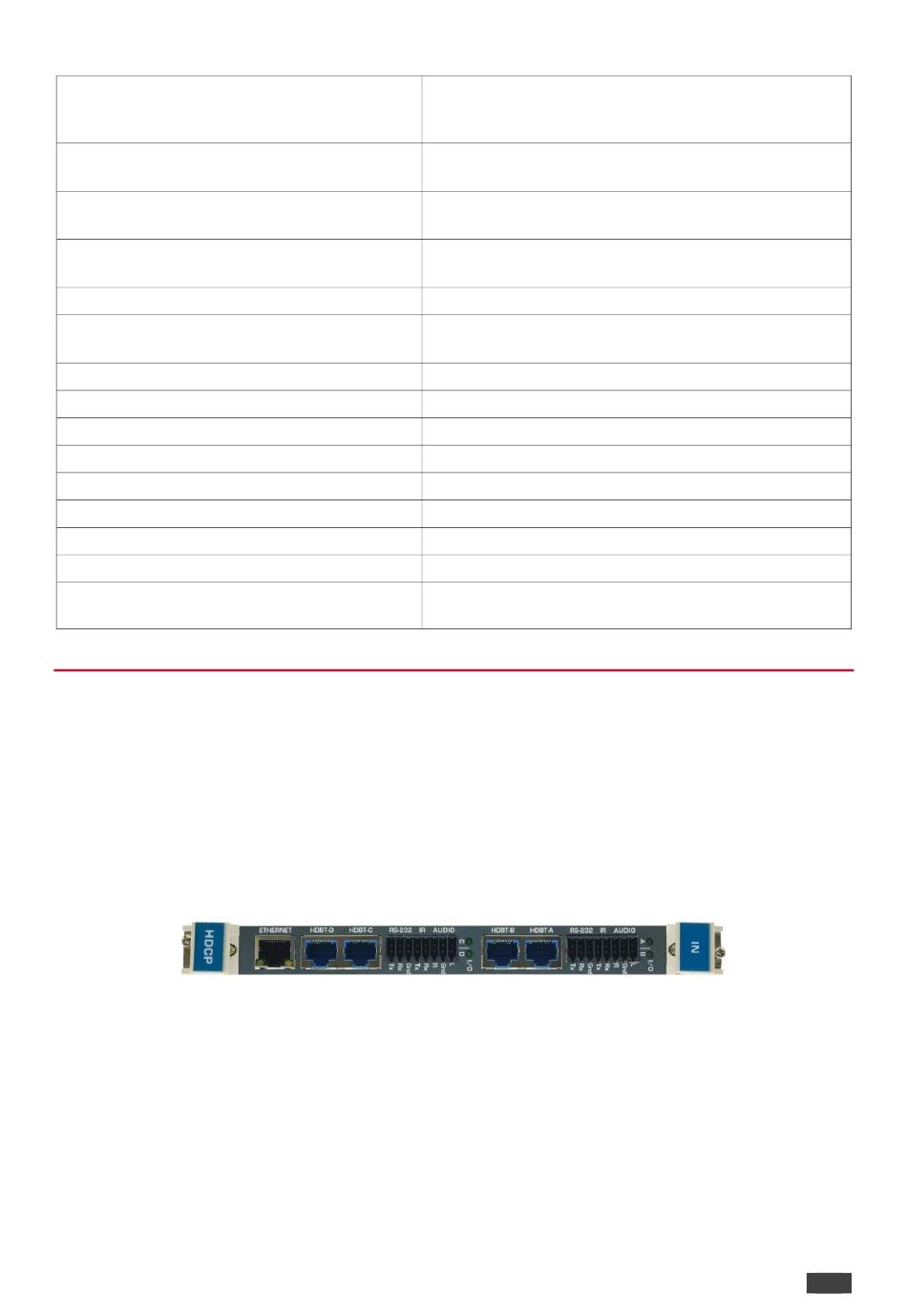

Defining the DTAxr-IN4-F32 / DTAxr-OUT4-F32

The DTAxr-IN4-F32 is a 4-input 4K60 4:2:0 HDMI over HDBaseT card with selectable
embedded or de-embedded analog audio (F-32). The DTAxr-IN4-F32 inputs four extended
reach HDBaseT signals with analog audio, bidirectional RS-232, and IR from the line to the
chassis.
The DTAxr-IN4-F32 inputs four HDBaseT signals to the chassis with optional embedding/de-
embedding of unbalanced stereo audio to/from each HDBT port on the card:
The DTAxr-OUT4-F32 is a 4-output 4K60 4:2:0 HDMI over HDBaseT card with selectable
embedded or de-embedded analog audio (F-32). The DTAxr-OUT4-F32 outputs four
extended reach HDBaseT signals with analog audio, bidirectional RS-232, and IR from the
chassis to the line.
VS-3232DN-EM – Using the Input / Output Cards
4 HDBaseT TP on RJ45 connectors
4 RS-232 Serial ports and 4 IR ports on a 10-pin
terminal block
Video: 3.4Gbps
Serial Data: 115200
Video: 10.2Gbps
Serial Data: 115200
40m (130ft) – 4K @60Hz 4:2:0 or 4K @30Hz 4:4:4
70m (230ft) – 1080p 12 bit (deep color)
Supported
Input card: 28W
Output card: 20W
0° to +40°C (32° to 104°F)
–40° to +70°C (–40° to 158°F)
10% to 90%, RHL non-condensing
2cm x 16.4cm x 18.9cm (0.8" x 6.5" x 7.4") W, D, H
0.23 kg (0.5 lbs) approx.
0.37 kg (0.8 lbs) approx.
HDCP 1.4, HDMI 1.3a, HDBaseT, HDTV compatible
CE
Complies with appropriate requirements of RoHs and
WEEE
