The following table defines the technical specifications.
PORTS:
BANDWIDTH PER CHANNEL:
TOTAL BANDWIDTH:
MAXIMUM RANGE:
3D PASS THROUGH:
POWER CONSUMPTION:
OPERATING TEMPERATURE:
STORAGE TEMPERATURE:
HUMIDITY:
DIMENSIONS:
PRODUCT WEIGHT:
SHIPPING WEIGHT:
STANDARD COMPLIANCE:
SAFETY REGULATORY COMPLIANCE:
ENVIRONMENTAL REGULATORY
COMPLIANCE:
INCLUDED ACCESSORIES:
About the Power Connect™ Feature
The Power Connect™ feature here means that the
TP transmitters and receivers (for example, the TP-573 and TP-574).
Serial Data Flow on DGKat Plus RS-232 Cards
Serial data present on the RS-232 port of a DGKat input /output card is not transmitted via the
switcher. This data is transmitted over the TP cable of the same input / output card (see
Figure 14).
VS-3232DN-EM – Using the Input / Output Cards
4 TP DGKat ports on RJ-45
4 Serial ports on 3-pin terminal blocks
Video: 1.65Gbps
Serial Data: 19200
Video: 4.95Gbps
Serial Data: 19200
90m (300ft) – 1080p @60Hz when using BC-UNIKAT
cable
Supported
Input card: 22W
Output card: 19W
0° to +40°C (32° to 104°F)
–40° to +70°C (–40° to 158°F)
10% to 90%, RHL non-condensing
22cm x 18.8cm x 2cm (8.7" x 7.4" x 0.8") W, D, H
0.28 kg (0.62 lbs) approx.
0.43 kg (0.95 lbs) approx.
HDCP 1.4, HDMI 1.3a
CE, FCC
Complies with appropriate requirements of RoHs and
WEEE
Screwdriver

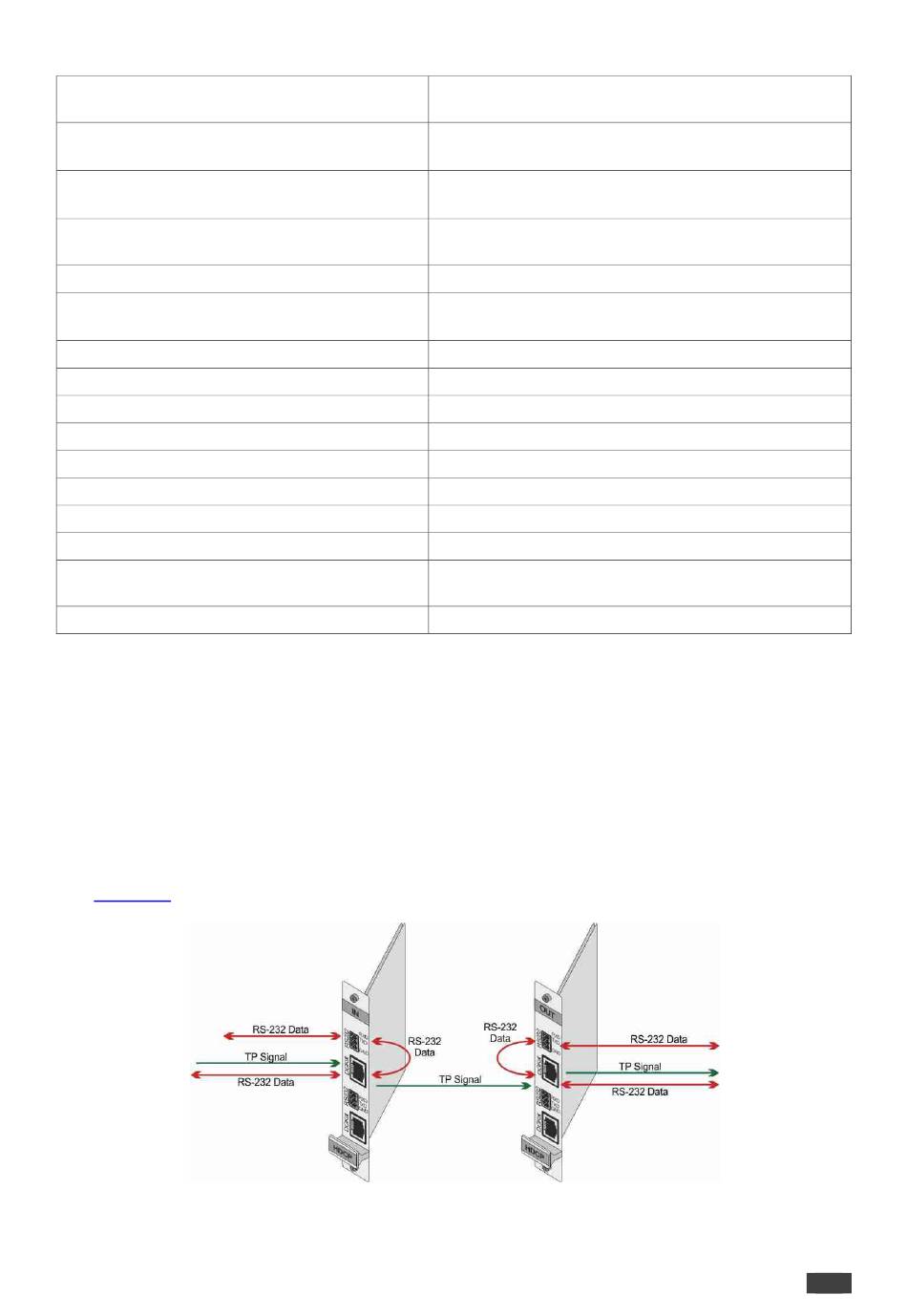

Figure 14: DGKat Card Serial Data Transmission
VS-3232DN-EM can supply power to the
