MAXIMUM RANGE:
3D PASS THROUGH:
POWER CONSUMPTION:
OPERATING TEMPERATURE:
STORAGE TEMPERATURE:
HUMIDITY:
DIMENSIONS:
PRODUCT WEIGHT:
SHIPPING WEIGHT:
STANDARD COMPLIANCE:
SAFETY REGULATORY COMPLIANCE:
ENVIRONMENTAL REGULATORY
COMPLIANCE:

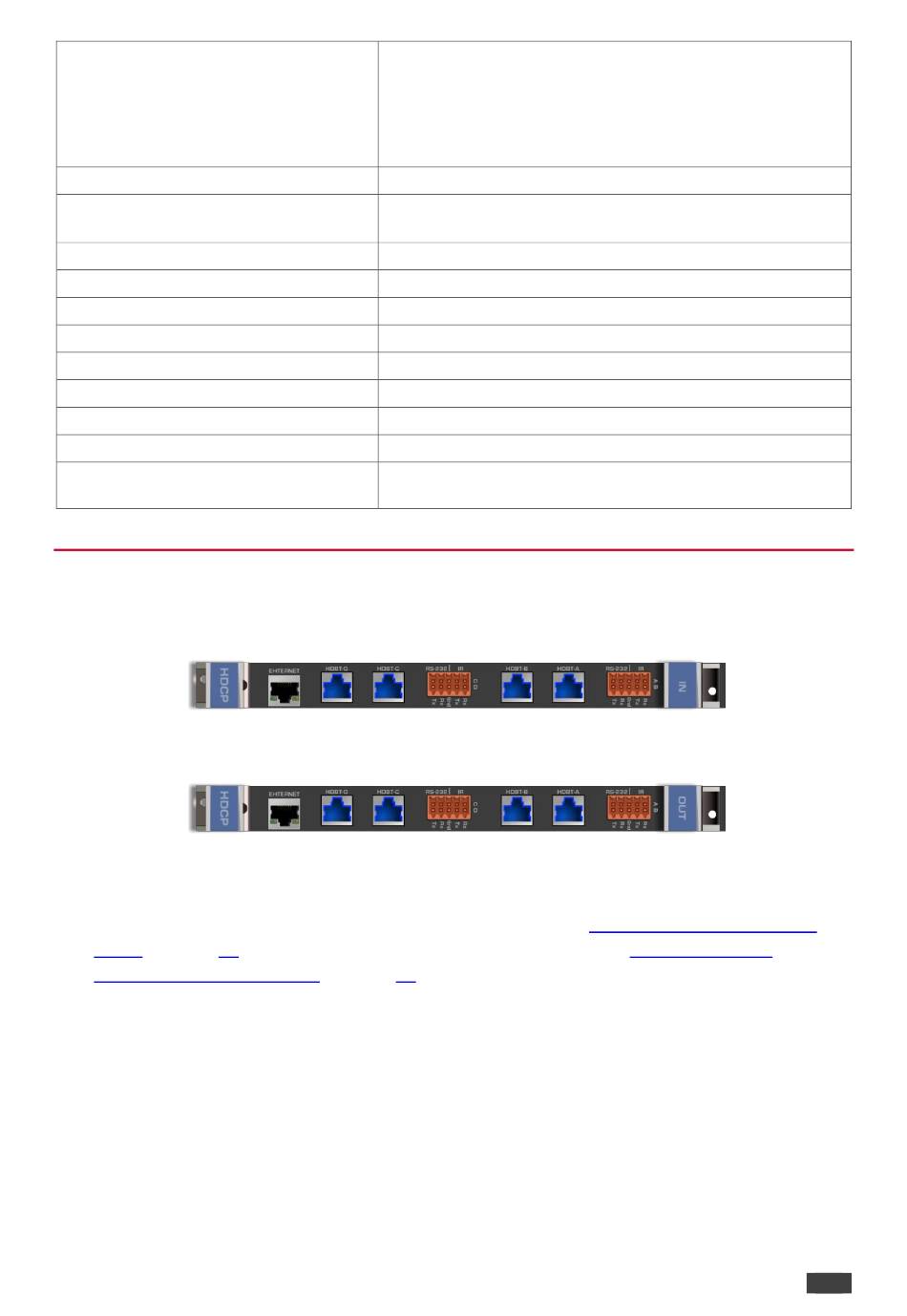

Defining the HDBT-IN4-F32 / HDBT-OUT4-F32

The HDBT-IN4-F32 is a 4-Input HDMI over HDBaseT Card (F-32):
The HDBT-OUT4-F32 is a 4-Output HDMI over HDBaseT Card (F-32):
The HDBT-IN4-F32 and HDBT-OUT4-F32 cards include a terminal block for connecting via
RS-232 or an IR emitter, such as the C-A35M/IRE, or an IR receiver, such as the
C-A35M/IRRN. For information on the IR wiring scheme, see
Cards on page 49. For information on connecting via RS-232, see
VS-3232DN-EM via RS-232
VS-3232DN-EM – Using the Input / Output Cards
100m (330ft) – 4K @60Hz 4:2:0 or 4K @30Hz 4:4:4 (normal
mode)
130m (430ft) – 2K (normal mode)
180m (590ft) – 1080p @60Hz @24bpp (ultra-mode) when
using
BC-UNIKAT cables
Supported
Input card: 34W
Output card: 26W
0° to +40°C (32° to 104°F)
–40° to +70°C (–40° to 158°F)
10% to 90%, RHL non-condensing
22cm x 18.8cm x 2cm (8.7" x 7.4" x 0.8") W, D, H
0.23 kg (0.5 lbs) approx.
0.37 kg (0.8 lbs) approx.
HDCP 1.4, HDMI 1.3a, HDBaseT, HDTV compatible
CE
Complies with appropriate requirements of RoHs and WEEE
on page 15.
Kramer Electronics Ltd.
IR Wiring Scheme for HDBT
Connecting to the
47
