10.3

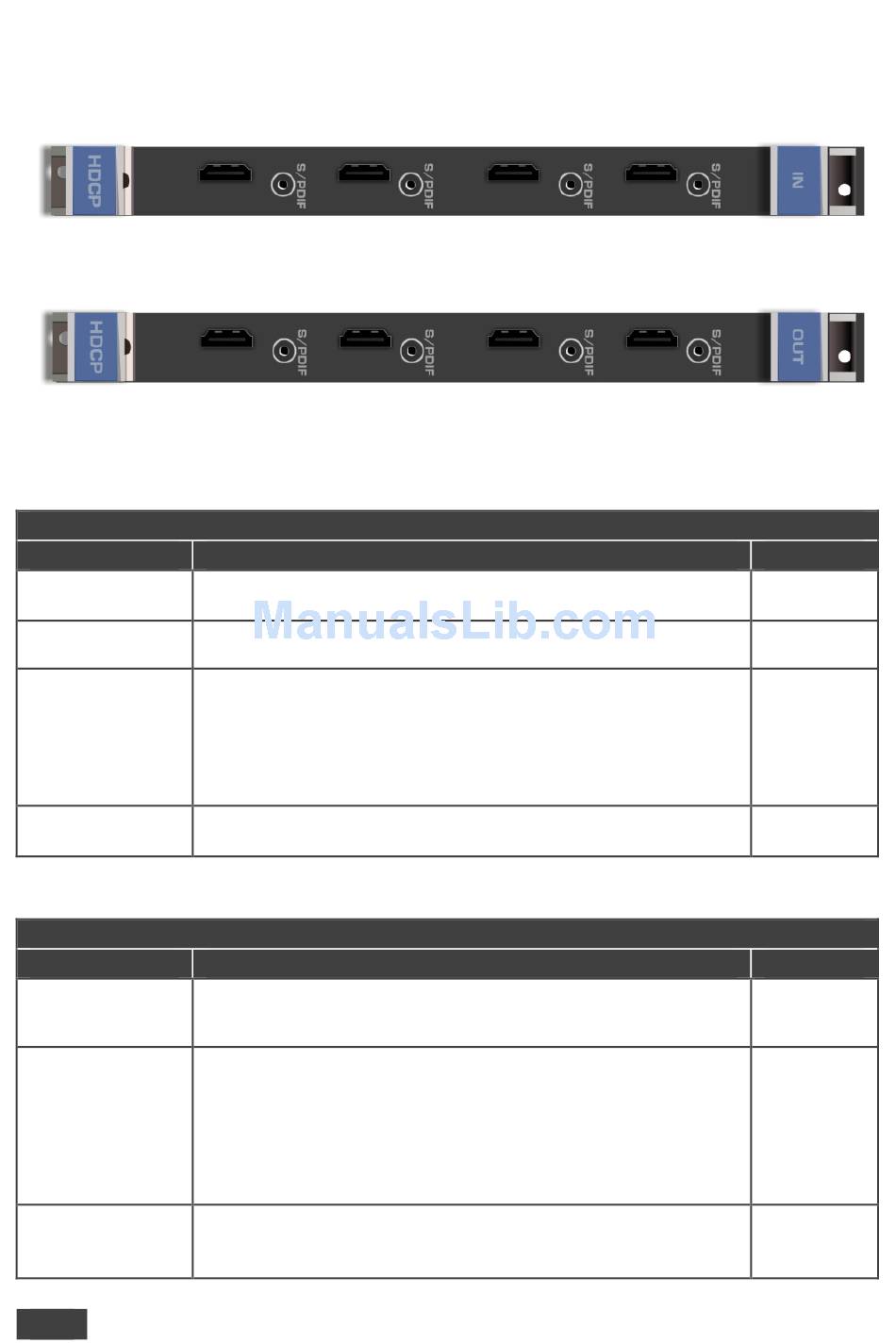

Defining the HAD-IN4-F32 / HAD-OUT4-F32

The HAD-IN4-F32 is a 4-Input HDMI with Digital Audio Card (F-32):
The HAD-OUT4-F32 is a 4-Output HDMI with Digital Audio Card (F-32):
10.3.1 HAD-IN4-F32 / HAD-OUT4-F32 Configuration
The HAD-IN4-F32 configuration table appears as follows:
HAD-IN4-F32 Input Card
Parameter
HDCP
Color Space
Audio Select
Reset Input
The HAD-OUT4-F32 configuration table appears as follows:
HAD-OUT4-F32 Output Card
Parameter
Switch Speed
HDMI
Deep Color
54
Description
Turn HDCP on and off.
*0=EN, 1=DIS.
Selects the color space of the internal video bus (input is converted
to this color space for internal processing only): RGB, Auto.
Selects the audio source:
Auto—Audio signal selection is controlled by the presence or
absence of a plug in the RCA port. When present, AUD-Digital is
selected, when absent, AUD-Embedded is selected.
AUD-Embedded—HDMI audio is selected.
AUD-Digital—S/PDIF audio is selected.
Re-power—Power cycles the port.
Factory—Performs a factory reset to default values of the port.
Description
When switching between different sources the switching time can be
reduced by setting the fast switch level (Ex-fast Switch, Fast Switch
or Normal Switch).
Sets the output signal format (Display, HDMI, DVI).
Display—the output is set automatically based on the EDID of the
connected display.
HDMI—Force the output to be HDMI.
DVI—Force the output to be DVI.
Note: When selecting the DVI option and fast switching is enabled,
you must ensure that the source is DVI compatible.
Sets maximum color bit depth (Auto, 8 bit).
Auto—Set the color depth automatically.
8 bit—Limit the color depth to 8 bits.
VS-3232DN - Using the Input / Output Cards
Default
0
Auto
Auto
-
Default
Normal
Switch
Display
Auto
