13

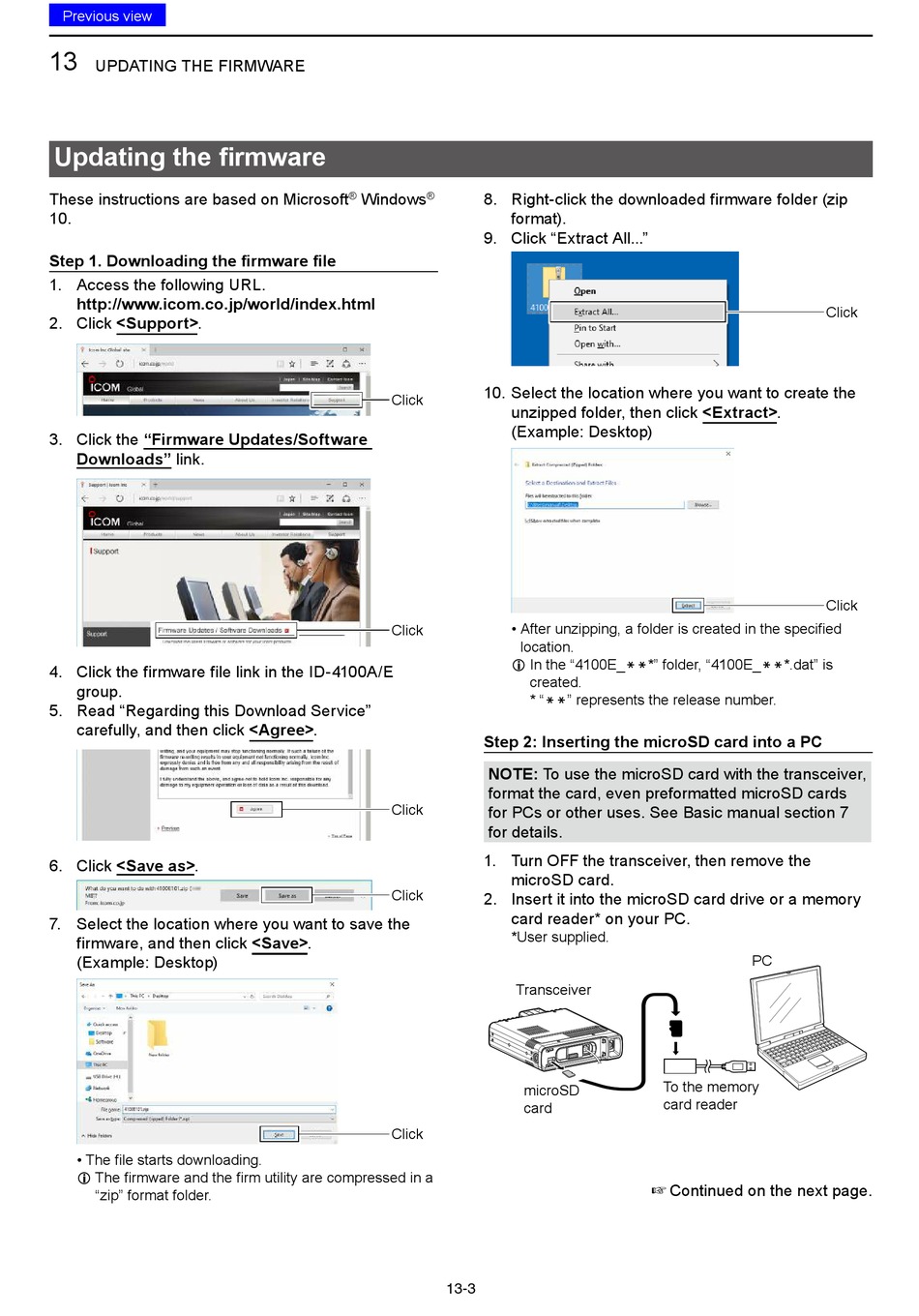

UPDATING THE FIRMWARE
Updating the firmware
These instructions are based on Microsoft
10.
Step 1. Downloading the firmware file
1. Access the following URL.
http://www.icom.co.jp/world/index.html
2. Click <Support>.
3. Click the "Firmware Updates/Software
Downloads" link.
4. Click the firmware file link in the ID-4100A/E
group.
5. Read "Regarding this Download Service"
carefully, and then click <Agree>.
6. Click <Save as>.
7. Select the location where you want to save the
firmware, and then click <Save>.
(Example: Desktop)
• The file starts downloading.
L The firmware and the firm utility are compressed in a
"zip" format folder.
® Windows ® 8. Right-click the downloaded firmware folder (zip
format).
9. Click "Extract All..."
10. Select the location where you want to create the
Click
unzipped folder, then click <Extract>.
(Example: Desktop)
• After unzipping, a folder is created in the specified
Click
location.
L In the "4100E_MM*" folder, "4100E_MM*.dat" is
Step 2: Inserting the microSD card into a PC
NOTE: To use the microSD card with the transceiver,
format the card, even preformatted microSD cards
Click
for PCs or other uses. See Basic manual section 7
for details.
1. Turn OFF the transceiver, then remove the
microSD card.
Click
2. Insert it into the microSD card drive or a memory
card reader* on your PC.
*User supplied.
Transceiver
Click
13-3
created.
* "MM" represents the release number.
To the memory
microSD
card reader
card
☞ Continued on the next page.
Click
Click
PC
