2

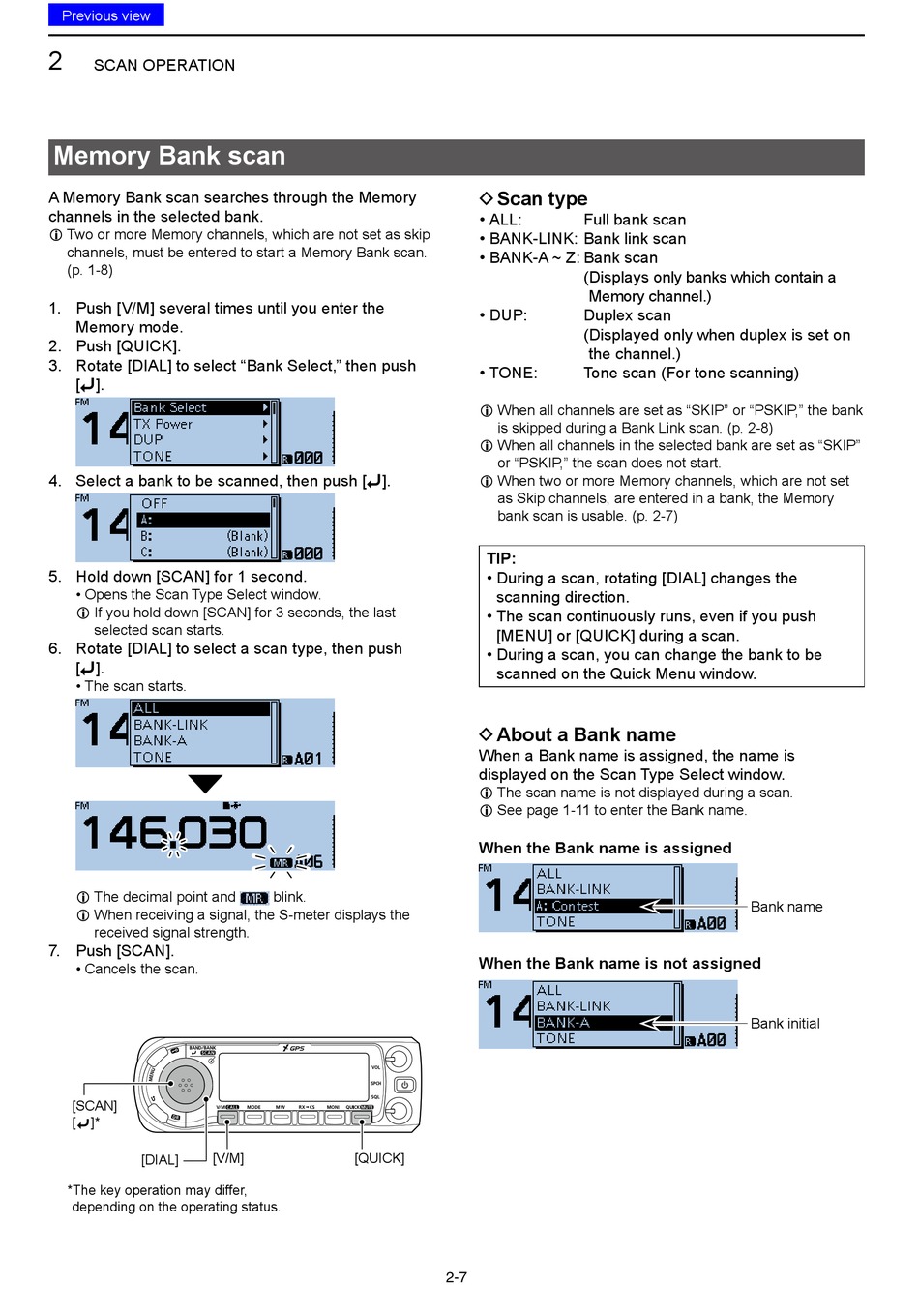

SCAN OPERATION
Memory Bank scan
A Memory Bank scan searches through the Memory
channels in the selected bank.
L Two or more Memory channels, which are not set as skip
channels, must be entered to start a Memory Bank scan.
(p. 1-8)
1. Push [V/M] several times until you enter the
Memory mode.
2. Push [QUICK].
3. Rotate [DIAL] to select "Bank Select," then push
[ï].
4. Select a bank to be scanned, then push [ï].
5. Hold down [SCAN] for 1 second.
• Opens the Scan Type Select window.
L If you hold down [SCAN] for 3 seconds, the last
selected scan starts.
6. Rotate [DIAL] to select a scan type, then push
[ï].
• The scan starts.
L The decimal point and
L When receiving a signal, the S-meter displays the
received signal strength.
7. Push [SCAN].
• Cancels the scan.
[SCAN]
[ ]*
[V/M]
[DIAL]
*The key operation may differ,
depending on the operating status.
blink.
[QUICK]
2-7
D Scan type
• ALL: Full bank scan
• BANK-LINK: Bank link scan
• BANK-A ~ Z: Bank scan
( Displays only banks which contain a
Memory channel.)
• DUP: Duplex scan
( Displayed only when duplex is set on
the channel.)
• TONE: Tone scan (For tone scanning)
L When all channels are set as "SKIP" or "PSKIP," the bank
is skipped during a Bank Link scan. (p. 2-8)
L When all channels in the selected bank are set as "SKIP"
or "PSKIP," the scan does not start.
L When two or more Memory channels, which are not set
as Skip channels, are entered in a bank, the Memory
bank scan is usable. (p. 2-7)
TIP:
• During a scan, rotating [DIAL] changes the
scanning direction.
• The scan continuously runs, even if you push
[MENU] or [QUICK] during a scan.
• During a scan, you can change the bank to be
scanned on the Quick Menu window.
D About a Bank name
When a Bank name is assigned, the name is
displayed on the Scan Type Select window.
L The scan name is not displayed during a scan.
L See page 1-11 to enter the Bank name.
When the Bank name is assigned
When the Bank name is not assigned
Bank name
Bank initial
