12
Bluetooth ® OPERATION
Connecting to an iOS™ device (Continued)

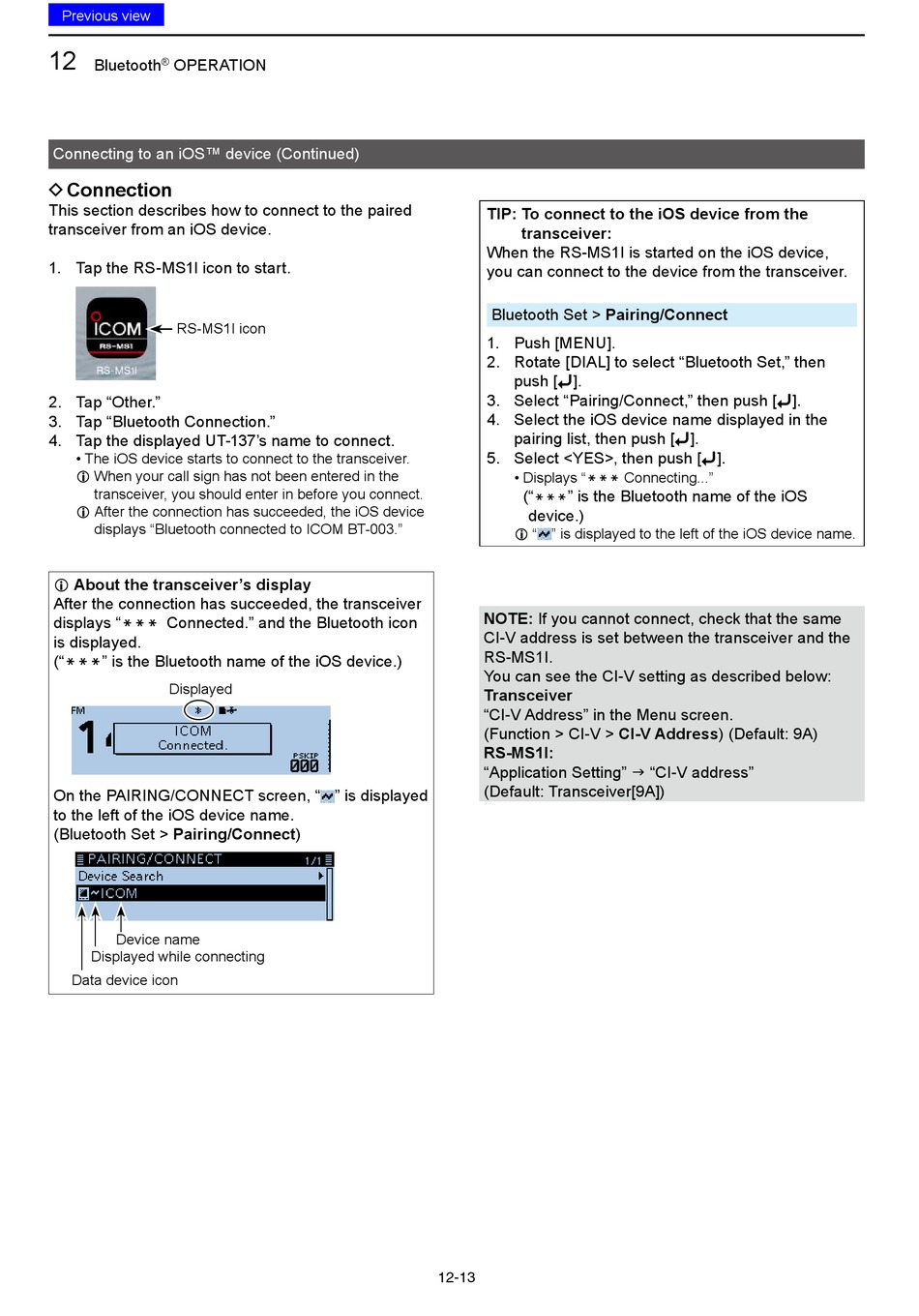

D Connection

This section describes how to connect to the paired
transceiver from an iOS device.
1. Tap the RS-MS1I icon to start.
RS-MS1I icon
2. Tap "Other."
3. Tap "Bluetooth Connection."
4. Tap the displayed UT-137's name to connect.
• The iOS device starts to connect to the transceiver.
L When your call sign has not been entered in the
transceiver, you should enter in before you connect.
L After the connection has succeeded, the iOS device
displays "Bluetooth connected to ICOM BT-003."
L About the transceiver's display
After the connection has succeeded, the transceiver
displays "MMM Connected." and the Bluetooth icon
is displayed.
("MMM" is the Bluetooth name of the iOS device.)
Displayed
On the PAIRING/CONNECT screen, " " is displayed
to the left of the iOS device name.
(Bluetooth Set > Pairing/Connect)
Device name
Displayed while connecting
Data device icon
TIP: To connect to the iOS device from the
transceiver:
When the RS-MS1I is started on the iOS device,
you can connect to the device from the transceiver.
Bluetooth Set > Pairing/Connect
1. Push [MENU].
2. Rotate [DIAL] to select "Bluetooth Set," then
push [ï].
3. Select "Pairing/Connect," then push [ï].
4. Select the iOS device name displayed in the
pairing list, then push [ï].
5. Select <YES>, then push [ï].
• Displays "MMM Connecting..."
( " " is the Bluetooth name of the iOS
MMM
device.)
L " " is displayed to the left of the iOS device name.
NOTE: If you cannot connect, check that the same
CI-V address is set between the transceiver and the
RS-MS1I.
You can see the CI-V setting as described below:
Transceiver
"CI-V Address" in the Menu screen.
(Function > CI-V > CI-V Address) (Default: 9A)
RS-MS1I:
"Application Setting"  "CI-V address"
(Default: Transceiver[9A])
12-13
