Firmware Update Information

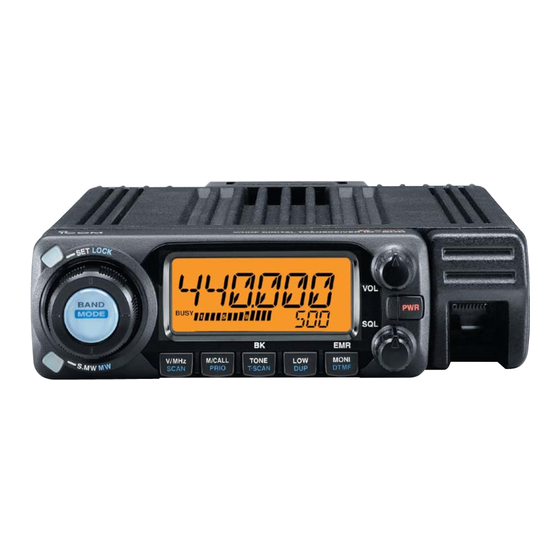

VHF/UHF DIGITAL TRANSCEIVER
ID-800H
This device complies with Part 15 of the FCC rules. Operation is sub-
ject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.

Advertisement

Table of Contents
loading

Related Manuals for Icom ID-800H

Summary of Contents for Icom ID-800H

  • Page 1 Firmware Update Information VHF/UHF DIGITAL TRANSCEIVER ID-800H This device complies with Part 15 of the FCC rules. Operation is sub- ject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference...

  • Page 2: Table Of Contents

    FOREWORD TABLE OF CONTENTS 1 DIGITAL MODE OPERATION ........1–22 Thank you for purchasing this Icom product. I Call sign programming ............1 The firmware of ID-800H VHF / UHF DIGITAL TRANSCEIVER D Your own call sign programming ........1 been updated as described in this information.

  • Page 3: Digital Mode Operation

    DIGITAL MODE OPERATION I Call sign programming r Push [BAND•MODE] for 1 sec. to enter call sign program- Four types of call sign memories are available for your own call sign “MyCALL,” other station call sign “UrCALL,” repeater ming mode. call sign “RPT1 C”...
  • Page 4 DIGITAL MODE OPERATION z Push [ B(D-OFF)] to enter call sign set mode. NOTE: During the call sign programming mode (v to m) • Push [Y Y ] or [Z Z ] to select “CALLS,” if necessary. push [VFO/LOCK] to clear the entered call sign (the cursor x Push [ B(D-OFF)] or [...

  • Page 5: D Station Call Sign Programming

    DIGITAL MODE OPERATION D D Station call sign programming y Push [SET•LOCK] to select 2nd digit, then rotate [DIAL] Station call sign must be programmed for the specified sta- tion call as well as repeater operation in both digital voice and to select the desired character or code.
  • Page 6 DIGITAL MODE OPERATION z Push [ NOTE: During the call sign programming mode (v to n), B(D-OFF)] to enter call sign set mode. • Push [Y Y ] or [Z Z ] to select “CALLS,” if necessary. push [VFO/LOCK] to clear the entered call sign (the cursor x Push [ B(D-OFF)] or [...

  • Page 7: I Digital Voice Mode Operation

    DIGITAL MODE OPERATION I Digital voice mode operation q Set the desired frequency in VFO mode. z Set the desired frequency in VFO mode. (Instruction man- (Instruc- ual; pgs. 11, 12) tion manual; pgs. 11, 12) x Push and hold [BAND] for 1 sec. to enter the •...

  • Page 8: D When Sending A Cq

    DIGITAL MODE OPERATION D D When sending a CQ • Select “CQ” as the call sign z Push [ q Push [SET• LOCK] to enter call sign set mode. B(D-OFF)] to enter call sign set mode. • Push [Y Y ] or [Z Z ] to select “CALLS,” if necessary. •...

  • Page 9: D When Calling The Desired Station

    DIGITAL MODE OPERATION D D When calling the desired station • Select the desired call sign q Push [SET• LOCK] to enter call sign set mode. NOTE: The digital mode operation is vastly different from FM mode. One of the differences is in digital mode the •...

  • Page 10: I Digital Repeater Operation

    DIGITAL MODE OPERATION I Digital repeater operation yPush [SET•LOCK] to select 2nd digit, then rotate [DIAL] to select the desired character or code. Repeater call sign must be programmed for repeater opera- • 2nd digit blinks (1st digit stops blinking). •...
  • Page 11 DIGITAL MODE OPERATION z Push [ NOTE: During the call sign programming mode (v to n), B(D-OFF)] to enter call sign set mode. • Push [Y Y ] or [Z Z ] to select “CALLS,” if necessary. push [VFO/LOCK] to clear the entered call sign (the cursor x Push [ B(D-OFF)] or [...

  • Page 12: D Repeater Operation In The Same Zone

    DIGITAL MODE OPERATION D D Repeater operation in the same zone z Set the desired repeater’s frequency, offset and qSet the desired repeater’s frequency, offset and shift direc- shift direction in VFO mode. tion in VFO mode. (instruction manual; (instruction manual; p. 21) •...
  • Page 13 DIGITAL MODE OPERATION • Setting example 1 Zone Area 1 Repeater 1 Area 2 Repeater 2 Area 3 Repeater 3 Area 4 Repeater 4 : A11111 : A22222 (Gateway) : A33333 : A44444 Station A Station C : A2222A Station B : A4444C Internet Internet...

  • Page 14: D Repeater Operation Into Another Zone

    DIGITAL MODE OPERATION D D Repeater operation into another zone z Set the desired repeater’s frequency, offset and qSet the desired repeater’s frequency, offset and shift direc- shift direction in VFO mode. tion in VFO mode. (instruction manual; (instruction manual; p. 21) •...
  • Page 15 DIGITAL MODE OPERATION • Setting examle 2 Zone A Area 1 Repeater 1 Area 2 Repeater 2 Area 3 Repeater 3 Area 4 Repeater 4 : A11111 : A22222 (Gateway) : A33333 : A44444 Station A Station B : A2222A Internet Internet : A3333B...

  • Page 16: I Received Call Sign

    DIGITAL MODE OPERATION I Received call sign r Push one of [TONE•T-SCAN•BK], [LOW•DUP] or [MONI•DTMF•EMR] to exit call sign set mode. When a call in digital voice mode is received, the calling sta- tion and using repeater call signs being used can be stored into the received call record.

  • Page 17: D Received Station Call Sign Indication

    DIGITAL MODE OPERATION D D Received station call sign indication Important! ➥ Push and hold [TONE•T-SCAN•BK], until 2 beeps sound, The set call signs with the “One-touch reply using the call to display the received station call sign. record” operation as at below left are for temporary opera- •...

  • Page 18: I Copying The Call Sign

    DIGITAL MODE OPERATION I Copying the call sign D D Copying the call sign memory contents • Example— Copying the call sign memory “r15” into “r20” This function is convenient when saving additional notes for areas or unit number/initials (for mobile operation) (if several Rotate to select “r15”...

  • Page 19: D Copying The Set Call Sign Contents For Temporary Operation

    DIGITAL MODE OPERATION D D Copying the set call sign contents for temporary operation This is a way to program the set operating frequency with NOTE: other settings into a memory channel and the set call sign When call sign memories are full (no blank channel is avail- , from the call record, at the (“UrCALL,”...

  • Page 20: I Message Items

    DIGITAL MODE OPERATION I Message items D D TX message programming r Push [BAND•MODE] for 1 sec. to enter message pro- TX messages are available for up to 6 channels and each channel can be programmed with a message of up to 20 gramming mode.
  • Page 21 DIGITAL MODE OPERATION z Push [ B (D-OFF)] to enter message set • Available characters mode. (space) (”) (&) (’) (( ) ( )) (✱) • Push [Y Y ] or [Z Z ] to select “MESSAG” if necessary. x Push [ B(D-OFF)] or [ C (T-OFF)] several (–)

  • Page 22: D Message Transmission

    DIGITAL MODE OPERATION D D Message Transmission z Set the operating frequency, call signs and other Select the message transmission function ON and OFF. settings, such as repeater, as desired. When ON is selected, the transceiver transmits a text mes- x Push [ B (D-OFF)] to enter message set sage (pre-programmed).

  • Page 23: D Rx Message Indication

    DIGITAL MODE OPERATION D D RX message indication r Push [BAND•MODE] to display the message, then push [SET•LOCK] or [S.MW•MW] several times to scroll the When a call with a message is received, the message can be message. stored into the RX message record. The message is cleared once turning power OFF, or over- written when another message is received.

  • Page 24: I Break-In Communication

    DIGITAL MODE OPERATION I Break-in communication • How to use the break-in While operating with the call sign squelch, the squelch The break-in function allows you to break into an another sta- never opens (no audio sounds) even if a call is received, tion’s communications in both digital voice and low-speed unless your own call sign (“MyCALL”) is specified.

  • Page 25: Other Functions

    OTHER FUNCTIONS I Exiting set mode I Tuning step The key operation to exit from each set mode, “SET,” A “6.25 kHz” tuning step is additionally available with the “CALLS” and “MESSAG,” has been changed as follows. firmware update. The “6.25 kHz” tuning step can be used for all bands, except the 900 MHz band.

  • Page 26: I [F-1]/[F-2] Keys On Hm-133

    OTHER FUNCTIONS I [F-1]/[F-2] keys on HM-133 In addition to the current band condition, the set call signs and the condition of the set (“UrCALL,” “RPT1 C” and “RPT2 C”) mode and initial set mode settings can also be memorized into [F-1] and [F-2] keys ([FUNC] must be pushed before pushing with the firmware update.
  • Page 27 MEMO...
  • Page 28 A-6394D-2EX Printed in Japan 1-1-32 Kamiminami, Hirano-ku, Osaka 547-0003, Japan 2005 Icom Inc. ©...
