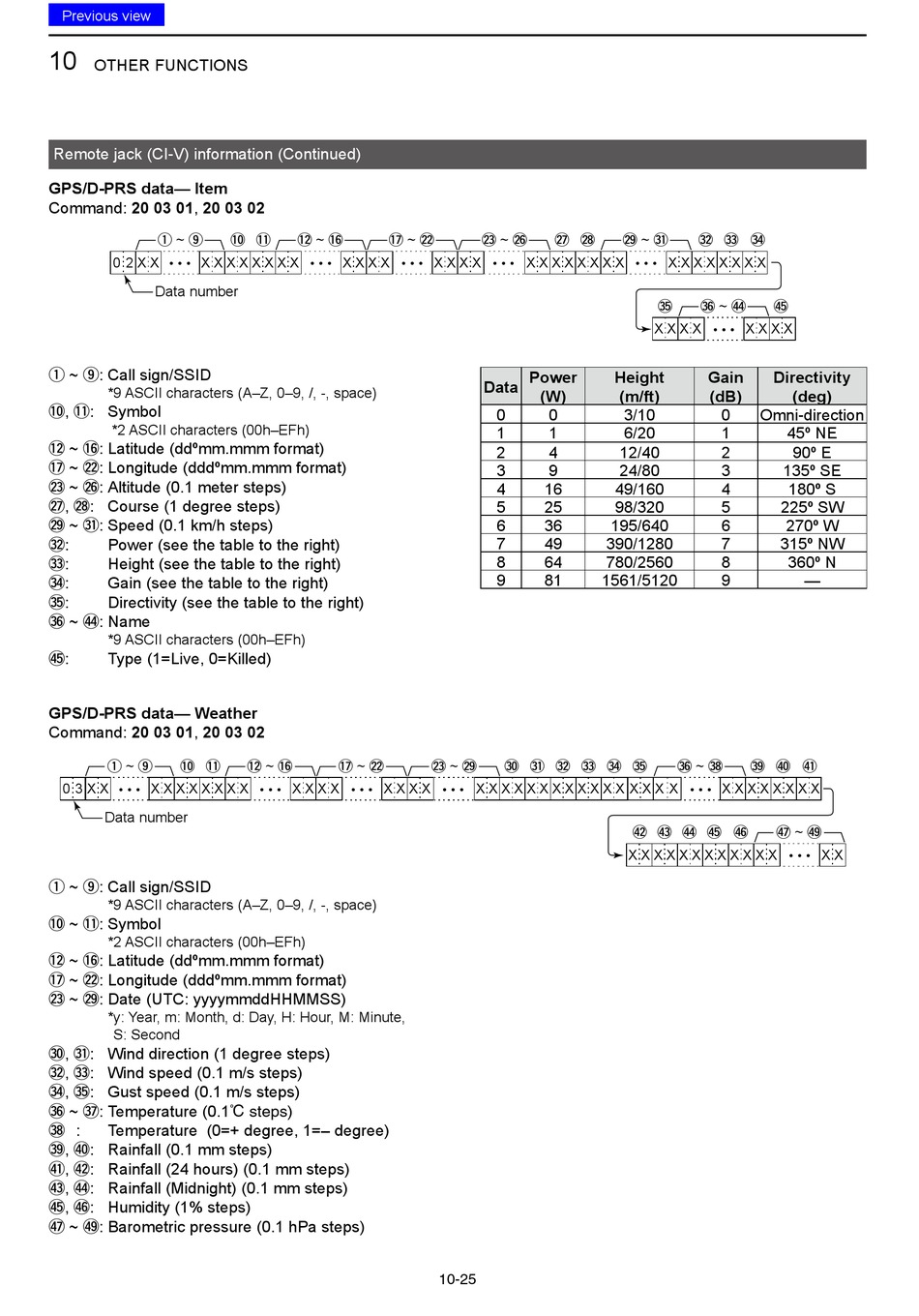

Remote jack (CI-V) information (Continued)
GPS/D-PRS data— Item
Command: 20 03 01, 20 03 02
q ~ o
0 2 X X X X X X X
• • •
Data number
q ~ o: Call sign/SSID
*9 ASCII characters (A–Z, 0–9, /, -, space)
!0 , !1 : Symbol
*2 ASCII characters (00h–EFh)
!2 ~ !6 : Latitude (ddºmm.mmm format)
!7 ~ @2 : Longitude (dddºmm.mmm format)
@3 ~ @6 : Altitude (0.1 meter steps)
@7 , @8 : Course (1 degree steps)
@9 ~ #1 : Speed (0.1 km/h steps)
#2 : Power (see the table to the right)
#3 : Height (see the table to the right)
#4 : Gain (see the table to the right)
#5 : Directivity (see the table to the right)
#6 ~ $4 : Name
*9 ASCII characters (00h–EFh)
$5 : Type (1=Live, 0=Killed)
GPS/D-PRS data— Weather
Command: 20 03 01, 20 03 02
q ~ o
!0 !1
0 3 X X X X X X X X X X
• • •
Data number
q ~ o: Call sign/SSID
*9 ASCII characters (A–Z, 0–9, /, -, space)
!0 ~ !1 : Symbol
*2 ASCII characters (00h–EFh)
!2 ~ !6 : Latitude (ddºmm.mmm format)
!7 ~ @2 : Longitude (dddºmm.mmm format)
@3 ~ @9 : Date (UTC: yyyymmddHHMMSS)
* y: Year, m: Month, d: Day, H: Hour, M: Minute,
S: Second
#0 , #1 : Wind direction (1 degree steps)
#2 , #3 : Wind speed (0.1 m/s steps)
#4 , #5 : Gust speed (0.1 m/s steps)
#6 ~ #7 : Temperature (0.1ç steps)
#8 : Temperature (0=+ degree, 1=– degree)
#9 , $0 : Rainfall (0.1 mm steps)
$1 , $2 : Rainfall (24 hours) (0.1 mm steps)
$3 , $4 : Rainfall (Midnight) (0.1 mm steps)
$5 , $6 : Humidity (1% steps)
$7 ~ $9 : Barometric pressure (0.1 hPa steps)
!2 ~ !6 !7 ~ @2
!0 !1
X X X X X X X
• • • • • •
!2 ~ !6 !7 ~ @2
X X X X X X X X
• • • • • •
@3 ~ @6
@7 @8
X X X X X X X X X X X X
• • •
Power
Data
(W)
0 0
1 1
2 4
3 9
4 16
5 25
6 36
7 49
8 64
9 81 1561/5120
@3 ~ @9
#0 #1 #2 #3 #4 #5
X X X X X X X X X X X X
• • •
10-25
@9 ~ #1
#2 #3 #4
X X X X X X X X
• • •
#6 ~ $4
#5 $5
X X X X X X X X
• • •
Height Gain Directivity
(m/ft) (dB)
3/10 0 Omni-direction
6/20 1
12/40 2
24/80 3
49/160 4
98/320 5
195/640 6
390/1280 7
780/2560 8
9
#6 ~ #8
#9 $0 $1
X X X X X X X X X X X X
• • •
$7 ~ $9
$2 $3 $4 $5 $6
X X X X X X X X X X X X
(deg)
45º NE
90º E
135º SE
180º S
225º SW
270º W
315º NW
360º N
—
• • • X X
