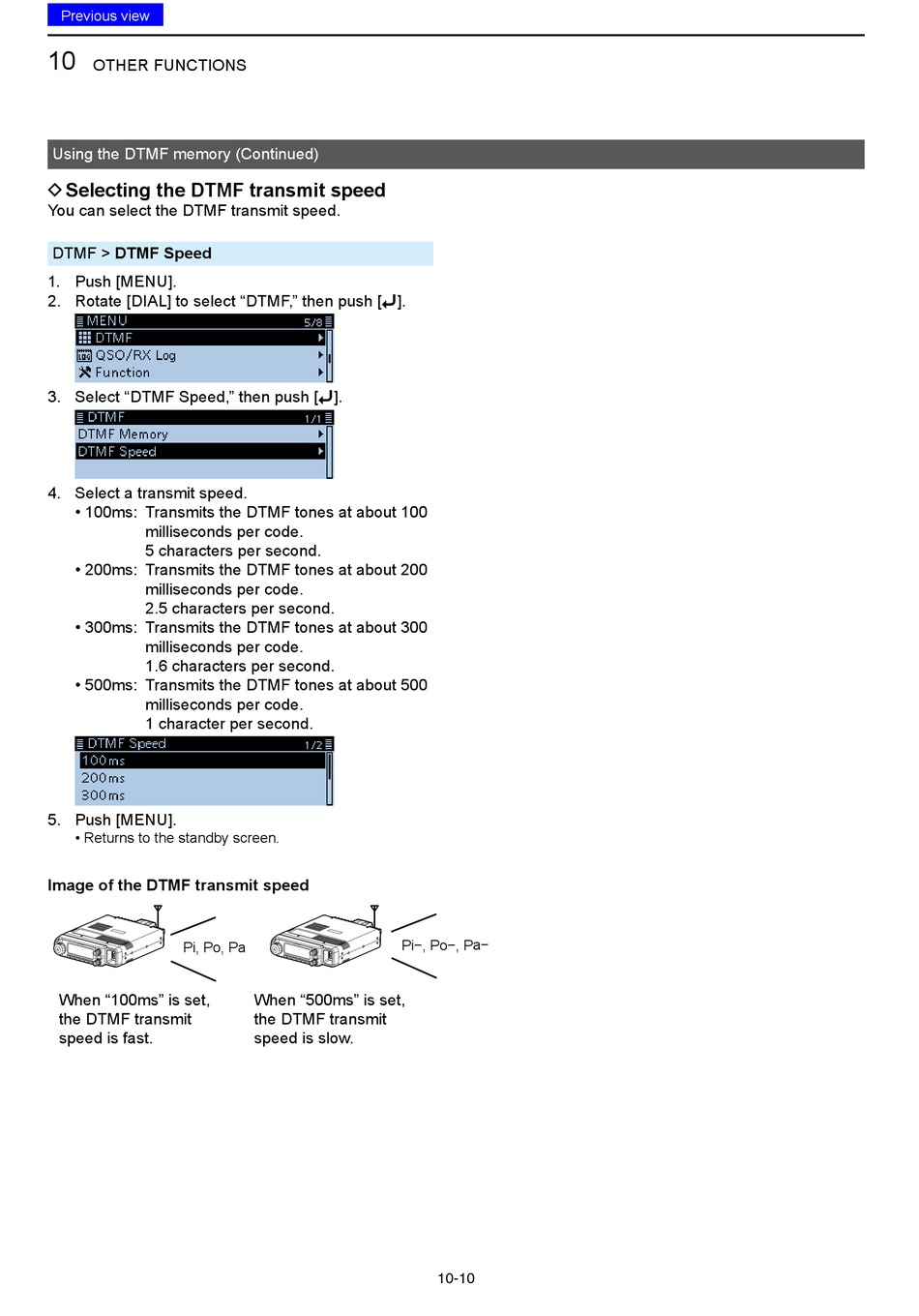

Icom ID-4100A Advanced Manual page 226

Previous view
10
OTHER FUNCTIONS
Using the DTMF memory (Continued)
D Selecting the DTMF transmit speed
You can select the DTMF transmit speed.
DTMF > DTMF Speed
1. Push [MENU].
2. Rotate [DIAL] to select "DTMF," then push [ï].
3. Select "DTMF Speed," then push [ï].
4. Select a transmit speed.
• 100ms: Transmits the DTMF tones at about 100
milliseconds per code.
5 characters per second.
• 200ms: Transmits the DTMF tones at about 200
milliseconds per code.
2.5 characters per second.
• 300ms: Transmits the DTMF tones at about 300
milliseconds per code.
1.6 characters per second.
• 500ms: Transmits the DTMF tones at about 500
milliseconds per code.
1 character per second.
5. Push [MENU].
• Returns to the standby screen.
Image of the DTMF transmit speed
When "100ms" is set,
the DTMF transmit
speed is fast.
When "500ms" is set,
the DTMF transmit
speed is slow.
10-10
