9

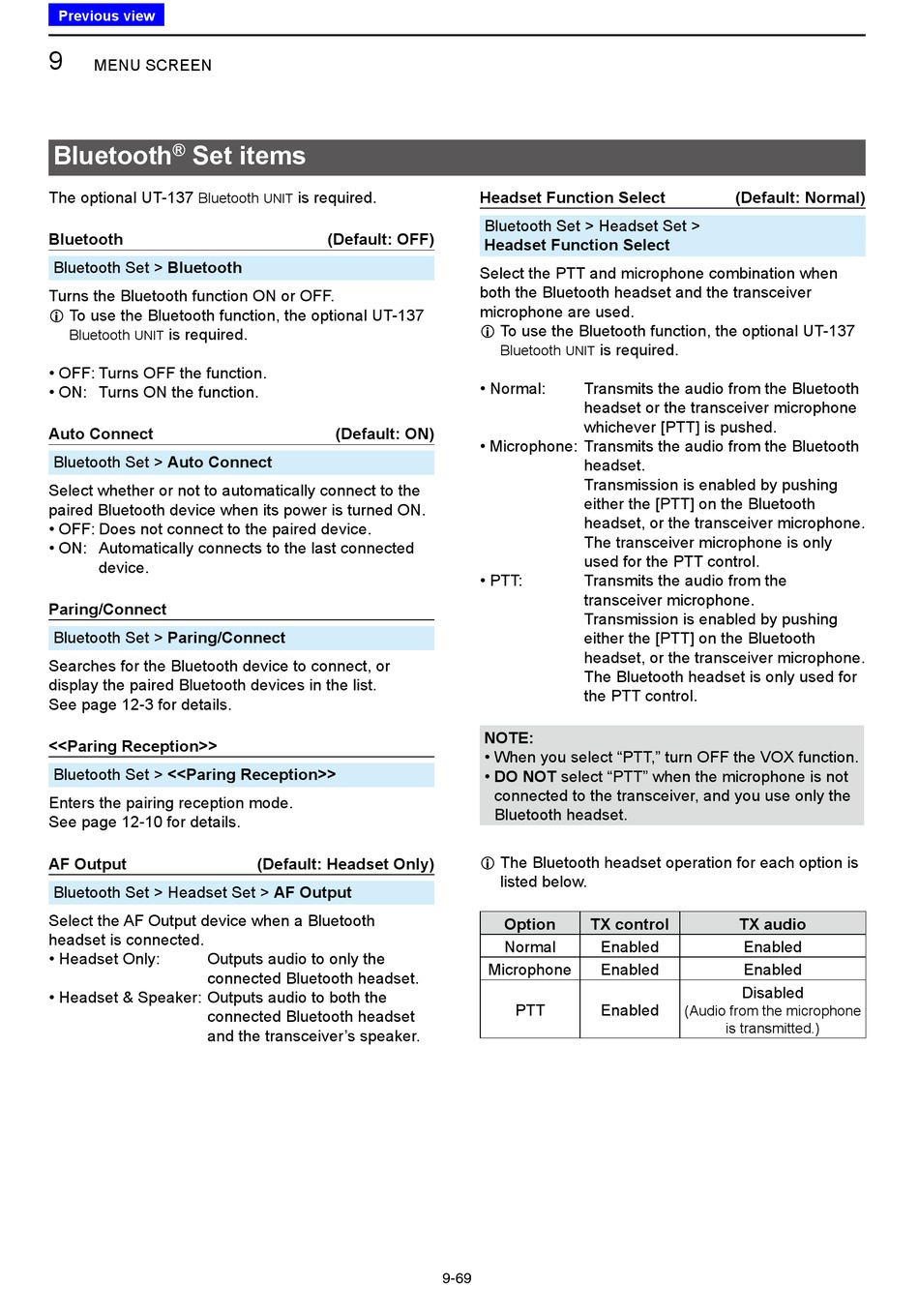

MENU SCREEN
Bluetooth Set items
®
The optional UT-137
Bluetooth
Bluetooth
Bluetooth Set > Bluetooth
Turns the Bluetooth function ON or OFF.
L To use the Bluetooth function, the optional UT-137
is required.
Bluetooth
unit
• OFF: Turns OFF the function.
• ON: Turns ON the function.
Auto Connect
Bluetooth Set > Auto Connect
Select whether or not to automatically connect to the
paired Bluetooth device when its power is turned ON.
• OFF: Does not connect to the paired device.
• ON: Automatically connects to the last connected
device.
Paring/Connect
Bluetooth Set > Paring/Connect
Searches for the Bluetooth device to connect, or
display the paired Bluetooth devices in the list.
See page 12-3 for details.
<<Paring Reception>>
Bluetooth Set > <<Paring Reception>>
Enters the pairing reception mode.
See page 12-10 for details.
AF Output
Bluetooth Set > Headset Set > AF Output
Select the AF Output device when a Bluetooth
headset is connected.
• Headset Only: Outputs audio to only the
connected Bluetooth headset.
• Headset & Speaker: Outputs audio to both the
connected Bluetooth headset
and the transceiver's speaker.
is required.
unit
(Default: OFF)
(Default: ON)
(Default: Headset Only)
Headset Function Select
Bluetooth Set > Headset Set >
Headset Function Select
Select the PTT and microphone combination when
both the Bluetooth headset and the transceiver
microphone are used.
L To use the Bluetooth function, the optional UT-137
is required.
Bluetooth
unit
• Normal: Transmits the audio from the Bluetooth
headset or the transceiver microphone
whichever [PTT] is pushed.
• Microphone: Transmits the audio from the Bluetooth
headset.
Transmission is enabled by pushing
either the [PTT] on the Bluetooth
headset, or the transceiver microphone.
The transceiver microphone is only
used for the PTT control.
• PTT: Transmits the audio from the
transceiver microphone.
Transmission is enabled by pushing
either the [PTT] on the Bluetooth
headset, or the transceiver microphone.
The Bluetooth headset is only used for
the PTT control.
NOTE:
• When you select "PTT," turn OFF the VOX function.
• DO NOT select "PTT" when the microphone is not
connected to the transceiver, and you use only the
Bluetooth headset.
L The Bluetooth headset operation for each option is
listed below.
Option TX control
Normal Enabled
Microphone Enabled
PTT Enabled
9-69
(Default: Normal)
TX audio
Enabled
Enabled
Disabled
(Audio from the microphone
is transmitted.)
