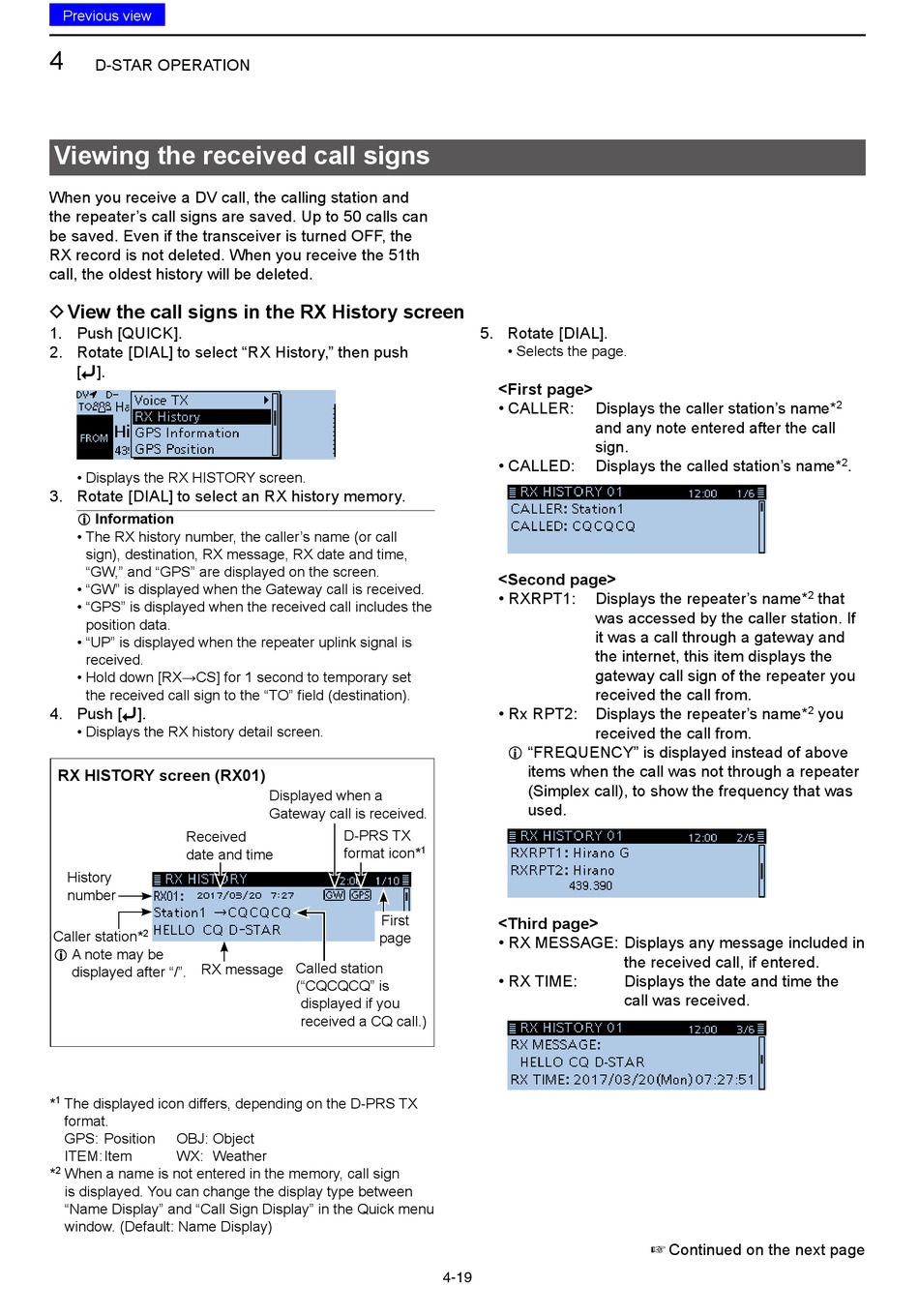

Viewing The Received Call Signs - Icom ID-4100A Advanced Manual

Previous view
4
D-STAR OPERATION

Viewing the received call signs

When you receive a DV call, the calling station and
the repeater's call signs are saved. Up to 50 calls can
be saved. Even if the transceiver is turned OFF, the
RX record is not deleted. When you receive the 51th
call, the oldest history will be deleted.
D View the call signs in the RX History screen
1. Push [QUICK].
2. Rotate [DIAL] to select "RX History," then push
[ï].
• Displays the RX HISTORY screen.
3. Rotate [DIAL] to select an RX history memory.
Information
L
• The RX history number, the caller's name (or call
sign), destination, RX message, RX date and time,
"GW," and "GPS" are displayed on the screen.
• "GW" is displayed when the Gateway call is received.
• "GPS" is displayed when the received call includes the
position data.
• "UP" is displayed when the repeater uplink signal is
received.
• Hold down [RX→CS] for 1 second to temporary set
the received call sign to the "TO" field (destination).
4. Push [ï].
• Displays the RX history detail screen.
RX HISTORY screen (RX01)
Received
date and time
History
number
Caller station* 2
L A note may be
RX message
displayed after "/".
* 1 The displayed icon differs, depending on the D-PRS TX
format.
GPS: Position OBJ: Object
ITEM: Item WX: Weather
* 2 When a name is not entered in the memory, call sign
is displayed. You can change the display type between
"Name Display" and "Call Sign Display" in the Quick menu
window. (Default: Name Display)
Displayed when a
Gateway call is received.
D-PRS TX
format icon*
1
First
page
Called station
( "CQCQCQ" is
displayed if you
received a CQ call.)
5. Rotate [DIAL].
• Selects the page.
<First page>
• CALLER: Displays the caller station's name*
and any note entered after the call
sign.
• CALLED: Displays the called station's name*
<Second page>
• RXRPT1: Displays the repeater's name*
was accessed by the caller station. If
it was a call through a gateway and
the internet, this item displays the
gateway call sign of the repeater you
received the call from.
• Rx RPT2: Displays the repeater's name*
received the call from.
L "FREQUENCY" is displayed instead of above
items when the call was not through a repeater
(Simplex call), to show the frequency that was
used.
<Third page>
• RX MESSAGE: Displays any message included in
• RX TIME:
4-19
the received call, if entered.
Displays the date and time the
call was received.
☞ Continued on the next page
