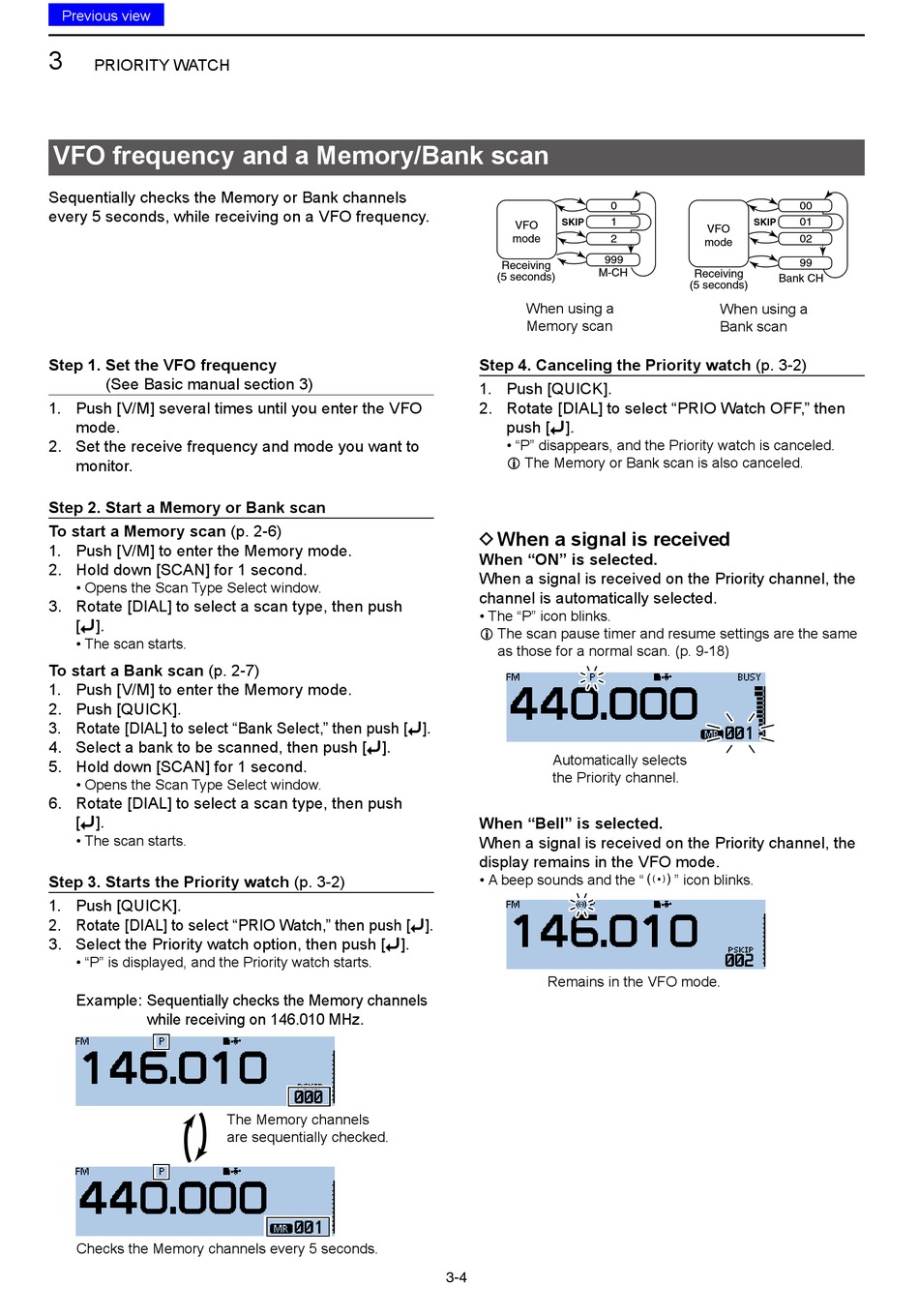

Icom ID-4100A Advanced Manual page 33

Previous view
3
PRIORITY WATCH
VFO frequency and a Memory/Bank scan
Sequentially checks the Memory or Bank channels
every 5 seconds, while receiving on a VFO frequency.
Step 1. Set the VFO frequency
(See Basic manual section 3)
1. Push [V/M] several times until you enter the VFO
mode.
2. Set the receive frequency and mode you want to
monitor.
Step 2. Start a Memory or Bank scan
To start a Memory scan (p. 2-6)
1. Push [V/M] to enter the Memory mode.
2. Hold down [SCAN] for 1 second.
• Opens the Scan Type Select window.
3. Rotate [DIAL] to select a scan type, then push
[ï].
• The scan starts.
To start a Bank scan (p. 2-7)
1. Push [V/M] to enter the Memory mode.
2. Push [QUICK].
3. Rotate [DIAL] to select "Bank Select," then push [ï].
4. Select a bank to be scanned, then push [ï].
5. Hold down [SCAN] for 1 second.
• Opens the Scan Type Select window.
6. Rotate [DIAL] to select a scan type, then push
[ï].
• The scan starts.
Step 3. Starts the Priority watch (p. 3-2)
1. Push [QUICK].
2. Rotate [DIAL] to select "PRIO Watch," then push [ï].
3. Select the Priority watch option, then push [ï].
• "P" is displayed, and the Priority watch starts.
Example: Sequentially checks the Memory channels
while receiving on 146.010 MHz.
Checks the Memory channels every 5 seconds.
The Memory channels
are sequentially checked.
0
1
SKIP
VFO
mode 2
999
Receiving
M-CH
(5 seconds)
When using a
Memory scan
Step 4. Canceling the Priority watch (p. 3-2)
1. Push [QUICK].
2. Rotate [DIAL] to select "PRIO Watch OFF," then
push [ï].
• "P" disappears, and the Priority watch is canceled.
L The Memory or Bank scan is also canceled.
D When a signal is received
When "ON" is selected.
When a signal is received on the Priority channel, the
channel is automatically selected.
• The "P" icon blinks.
L The scan pause timer and resume settings are the same
as those for a normal scan. (p. 9-18)
Automatically selects
the Priority channel.
When "Bell" is selected.
When a signal is received on the Priority channel, the
display remains in the VFO mode.
• A beep sounds and the "S" icon blinks.
Remains in the VFO mode.
3-4
00
01
SKIP
VFO
02
mode
99
Receiving
Bank CH
(5 seconds)
When using a
Bank scan
