USING A microSD CARD

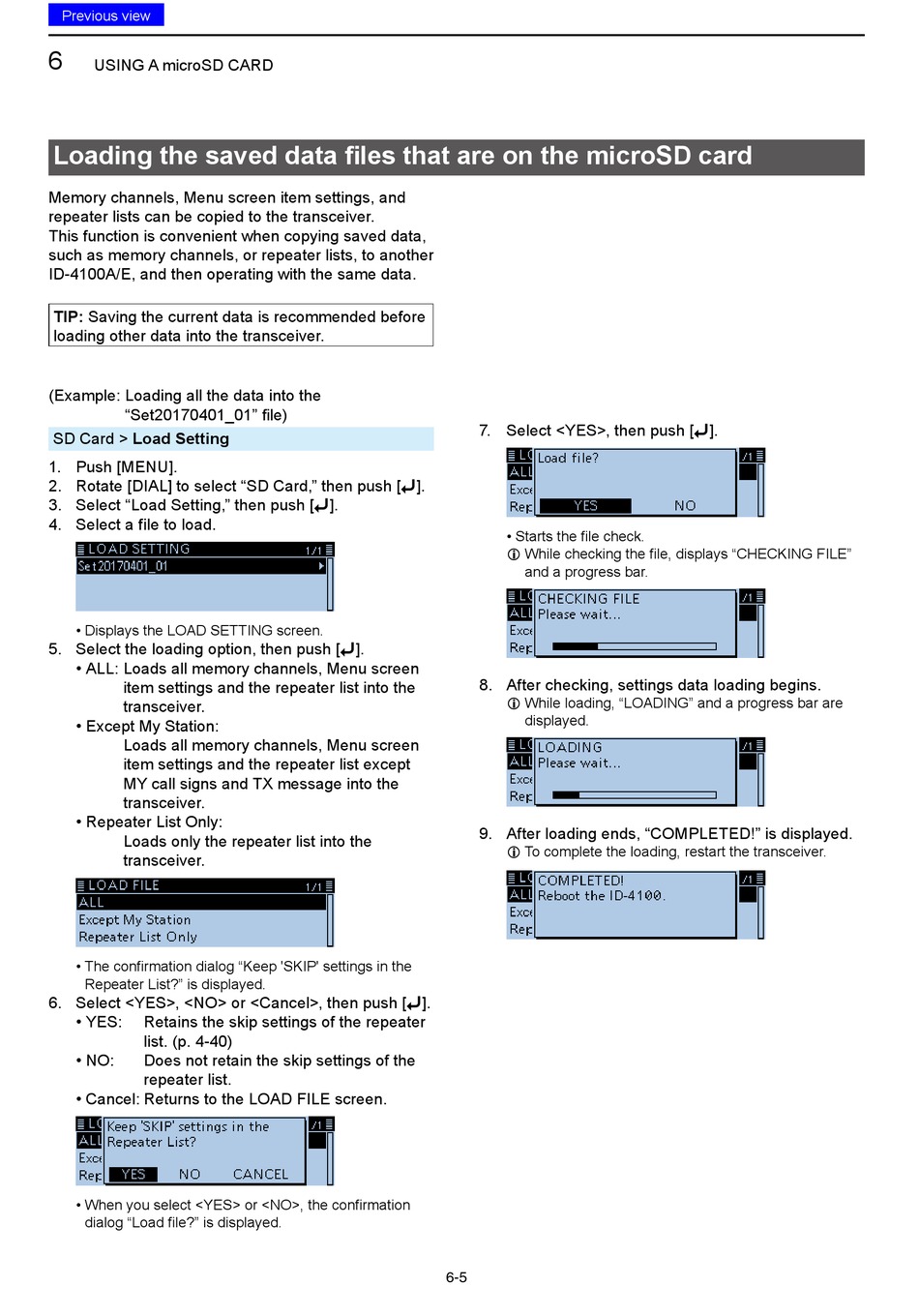

Loading the saved data files that are on the microSD card

Memory channels, Menu screen item settings, and
repeater lists can be copied to the transceiver.
This function is convenient when copying saved data,
such as memory channels, or repeater lists, to another
ID-4100A/E, and then operating with the same data.
TIP: Saving the current data is recommended before
loading other data into the transceiver.
(Example: Loading all the data into the
"Set20170401_01" file)
SD Card > Load Setting
1. Push [MENU].
2. Rotate [DIAL] to select "SD Card," then push [ï].
3. Select "Load Setting," then push [ï].
4. Select a file to load.
• Displays the LOAD SETTING screen.
5. Select the loading option, then push [ï].
• ALL: Loads all memory channels, Menu screen
item settings and the repeater list into the
transceiver.
• Except My Station:
Loads all memory channels, Menu screen
item settings and the repeater list except
MY call signs and TX message into the
transceiver.
• Repeater List Only:
Loads only the repeater list into the
transceiver.
• The confirmation dialog "Keep 'SKIP' settings in the
Repeater List?" is displayed.
6. Select <YES>, <NO> or <Cancel>, then push [ï].
• YES: Retains the skip settings of the repeater
list. (p. 4-40)
• NO: Does not retain the skip settings of the
repeater list.
• Cancel: Returns to the LOAD FILE screen.
• When you select <YES> or <NO>, the confirmation
dialog "Load file?" is displayed.
7. Select <YES>, then push [ï].
• Starts the file check.
L While checking the file, displays "CHECKING FILE"
and a progress bar.
8. After checking, settings data loading begins.
L While loading, "LOADING" and a progress bar are
displayed.
9. After loading ends, "COMPLETED!" is displayed.
L To complete the loading, restart the transceiver.
6-5
