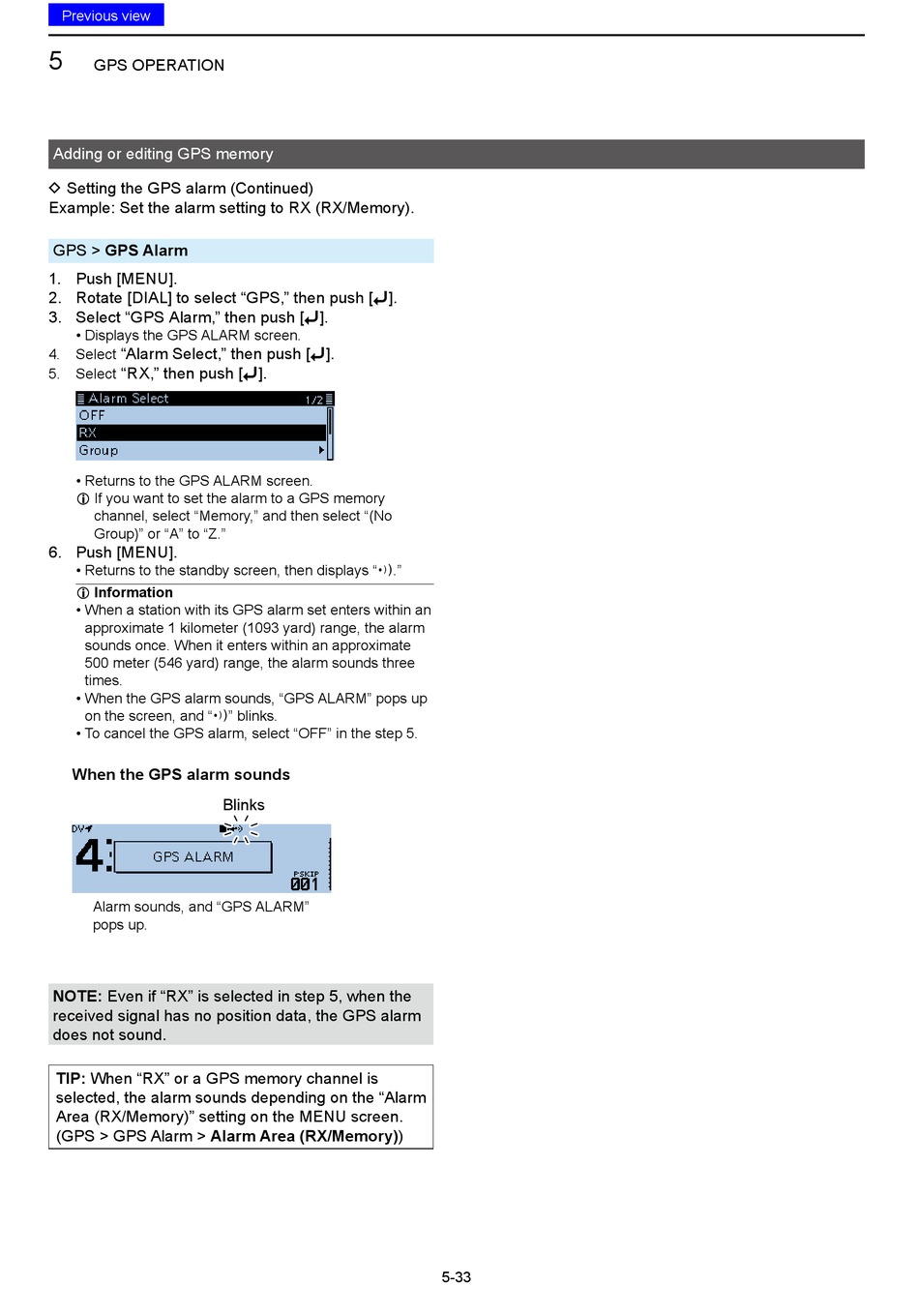

Icom ID-4100A Advanced Manual page 116

Previous view
5
GPS OPERATION
Adding or editing GPS memory
D Setting the GPS alarm (Continued)
Example: Set the alarm setting to RX (RX/Memory).
GPS > GPS Alarm
1. Push [MENU].
2. Rotate [DIAL] to select "GPS," then push [ï].
3. Select "GPS Alarm," then push [ï].
• Displays the GPS ALARM screen.
"Alarm Select," then push [ï].
4. Select
"RX," then push [ï].
5. Select
• Returns to the GPS ALARM screen.
L If you want to set the alarm to a GPS memory
channel, select "Memory," and then select "(No
Group)" or "A" to "Z."
6. Push [MENU].
• Returns to the standby screen, then displays "ì."
Information
L
• When a station with its GPS alarm set enters within an
approximate 1 kilometer (1093 yard) range, the alarm
sounds once. When it enters within an approximate
500 meter (546 yard) range, the alarm sounds three
times.
• When the GPS alarm sounds, "GPS ALARM" pops up
on the screen, and "ì" blinks.
• To cancel the GPS alarm, select "OFF" in the step 5.
When the GPS alarm sounds
Alarm sounds, and "GPS ALARM"
pops up.
NOTE: Even if "RX" is selected in step 5, when the
received signal has no position data, the GPS alarm
does not sound.
TIP: When "RX" or a GPS memory channel is
selected, the alarm sounds depending on the "Alarm
Area (RX/Memory)" setting on the MENU screen.
(GPS > GPS Alarm > Alarm Area (RX/Memory))
Blinks
5-33
