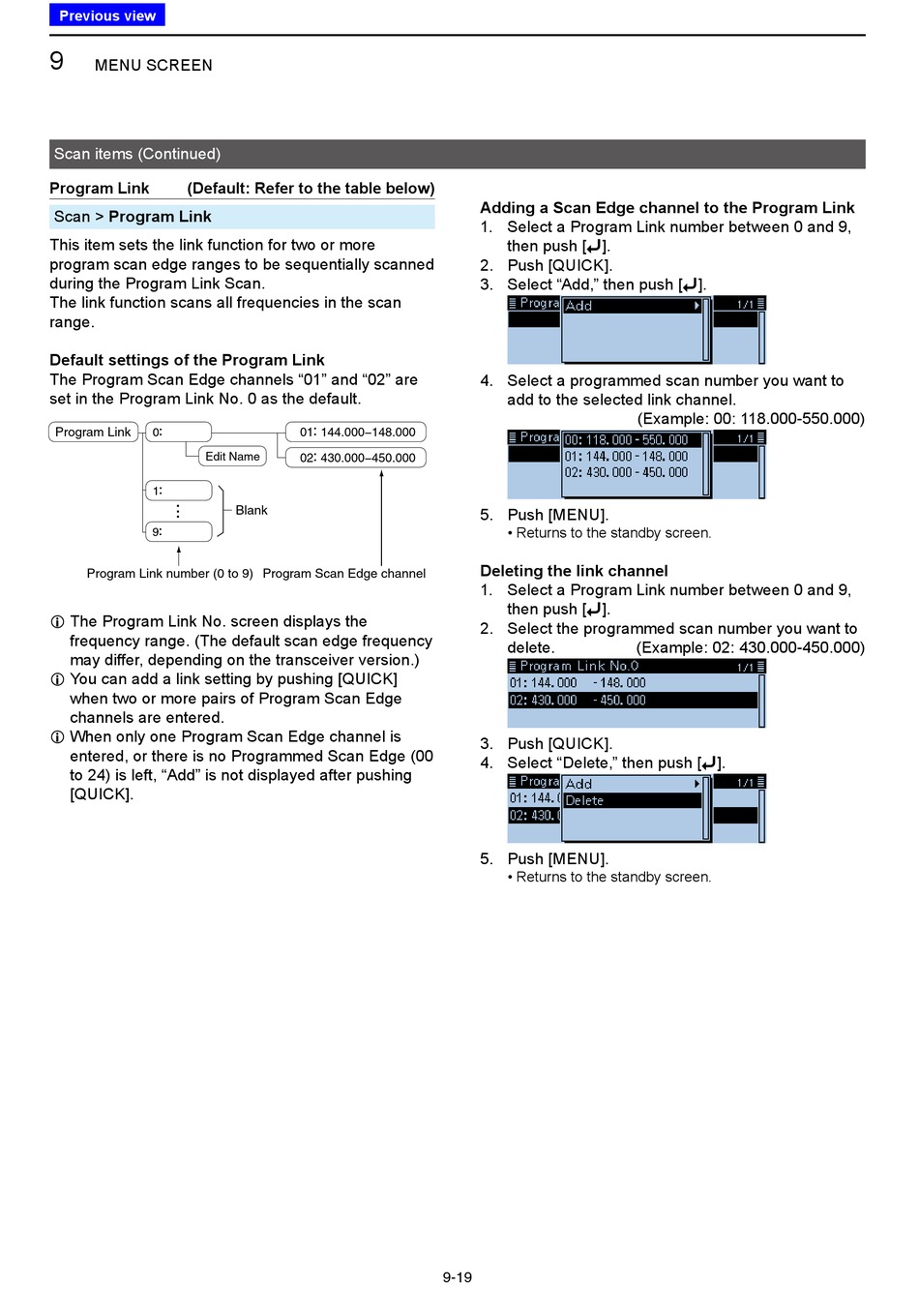

Icom ID-4100A Advanced Manual page 162

Previous view
9
MENU SCREEN
Scan items (Continued)
Program Link (Default: Refer to the table below)
Scan > Program Link
This item sets the link function for two or more
program scan edge ranges to be sequentially scanned
during the Program Link Scan.
The link function scans all frequencies in the scan
range.
Default settings of the Program Link
The Program Scan Edge channels "01" and "02" are
set in the Program Link No. 0 as the default.
0 ：
Program Link
Edit Name
1 ：
9 ：
Program Link number (0 to 9)
L The Program Link No. screen displays the
frequency range. (The default scan edge frequency
may differ, depending on the transceiver version.)
L You can add a link setting by pushing [QUICK]
when two or more pairs of Program Scan Edge
channels are entered.
L When only one Program Scan Edge channel is
entered, or there is no Programmed Scan Edge (00
to 24) is left, "Add" is not displayed after pushing
[QUICK].
01 ： 144.000−148.000
02 ： 430.000−450.000
Blank
Program Scan Edge channel
Adding a Scan Edge channel to the Program Link
1. Select a Program Link number between 0 and 9,
then push [ï].
2. Push [QUICK].
3. Select "Add," then push [ï].
4. Select a programmed scan number you want to
add to the selected link channel.
5. Push [MENU].
• Returns to the standby screen.
Deleting the link channel
1. Select a Program Link number between 0 and 9,
then push [ï].
2. Select the programmed scan number you want to
delete.
3. Push [QUICK].
4. Select "Delete," then push [ï].
5. Push [MENU].
• Returns to the standby screen.
9-19
(Example: 00: 118.000-550.000)
(Example: 02: 430.000-450.000)
