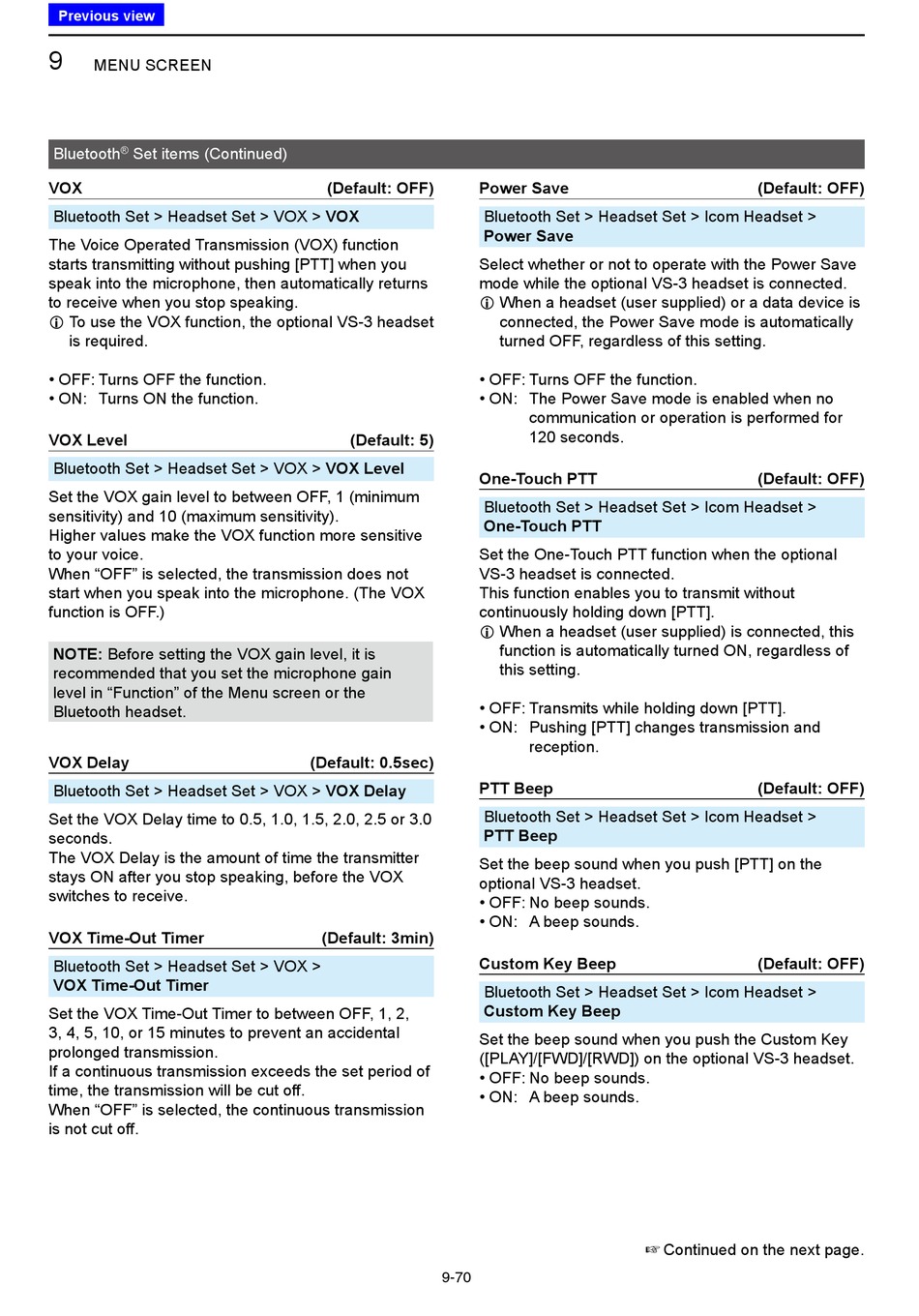

Icom ID-4100A Advanced Manual page 213

Previous view
9
MENU SCREEN
Bluetooth ® Set items (Continued)
VOX
Bluetooth Set > Headset Set > VOX > VOX
The Voice Operated Transmission (VOX) function
starts transmitting without pushing [PTT] when you
speak into the microphone, then automatically returns
to receive when you stop speaking.
L To use the VOX function, the optional VS-3 headset
is required.
• OFF: Turns OFF the function.
• ON: Turns ON the function.
VOX Level
Bluetooth Set > Headset Set > VOX > VOX Level
Set the VOX gain level to between OFF, 1 (minimum
sensitivity) and 10 (maximum sensitivity).
Higher values make the VOX function more sensitive
to your voice.
When "OFF" is selected, the transmission does not
start when you speak into the microphone. (The VOX
function is OFF.)
NOTE: Before setting the VOX gain level, it is
recommended that you set the microphone gain
level in "Function" of the Menu screen or the
Bluetooth headset.
VOX Delay
Bluetooth Set > Headset Set > VOX > VOX Delay
Set the VOX Delay time to 0.5, 1.0, 1.5, 2.0, 2.5 or 3.0
seconds.
The VOX Delay is the amount of time the transmitter
stays ON after you stop speaking, before the VOX
switches to receive.
VOX Time-Out Timer
Bluetooth Set > Headset Set > VOX >
VOX Time-Out Timer
Set the VOX Time-Out Timer to between OFF, 1, 2,
3, 4, 5, 10, or 15 minutes to prevent an accidental
prolonged transmission.
If a continuous transmission exceeds the set period of
time, the transmission will be cut off.
When "OFF" is selected, the continuous transmission
is not cut off.
(Default: OFF) Power Save
Select whether or not to operate with the Power Save
mode while the optional VS-3 headset is connected.
L When a headset (user supplied) or a data device is
• OFF: Turns OFF the function.
• ON: The Power Save mode is enabled when no
(Default: 5)
One-Touch PTT
Set the One-Touch PTT function when the optional
VS-3 headset is connected.
This function enables you to transmit without
continuously holding down [PTT].
L When a headset (user supplied) is connected, this
• OFF: Transmits while holding down [PTT].
• ON: Pushing [PTT] changes transmission and
(Default: 0.5sec)
PTT Beep
Set the beep sound when you push [PTT] on the
optional VS-3 headset.
• OFF: No beep sounds.
• ON: A beep sounds.
(Default: 3min)
Custom Key Beep
Set the beep sound when you push the Custom Key
([PLAY]/[FWD]/[RWD]) on the optional VS-3 headset.
• OFF: No beep sounds.
• ON: A beep sounds.
9-70
Bluetooth Set > Headset Set > Icom Headset >
Power Save
connected, the Power Save mode is automatically
turned OFF, regardless of this setting.
communication or operation is performed for
120 seconds.
Bluetooth Set > Headset Set > Icom Headset >
One-Touch PTT
function is automatically turned ON, regardless of
this setting.
reception.
Bluetooth Set > Headset Set > Icom Headset >
PTT Beep
Bluetooth Set > Headset Set > Icom Headset >
Custom Key Beep
☞ Continued on the next page.
(Default: OFF)
(Default: OFF)
(Default: OFF)
(Default: OFF)
