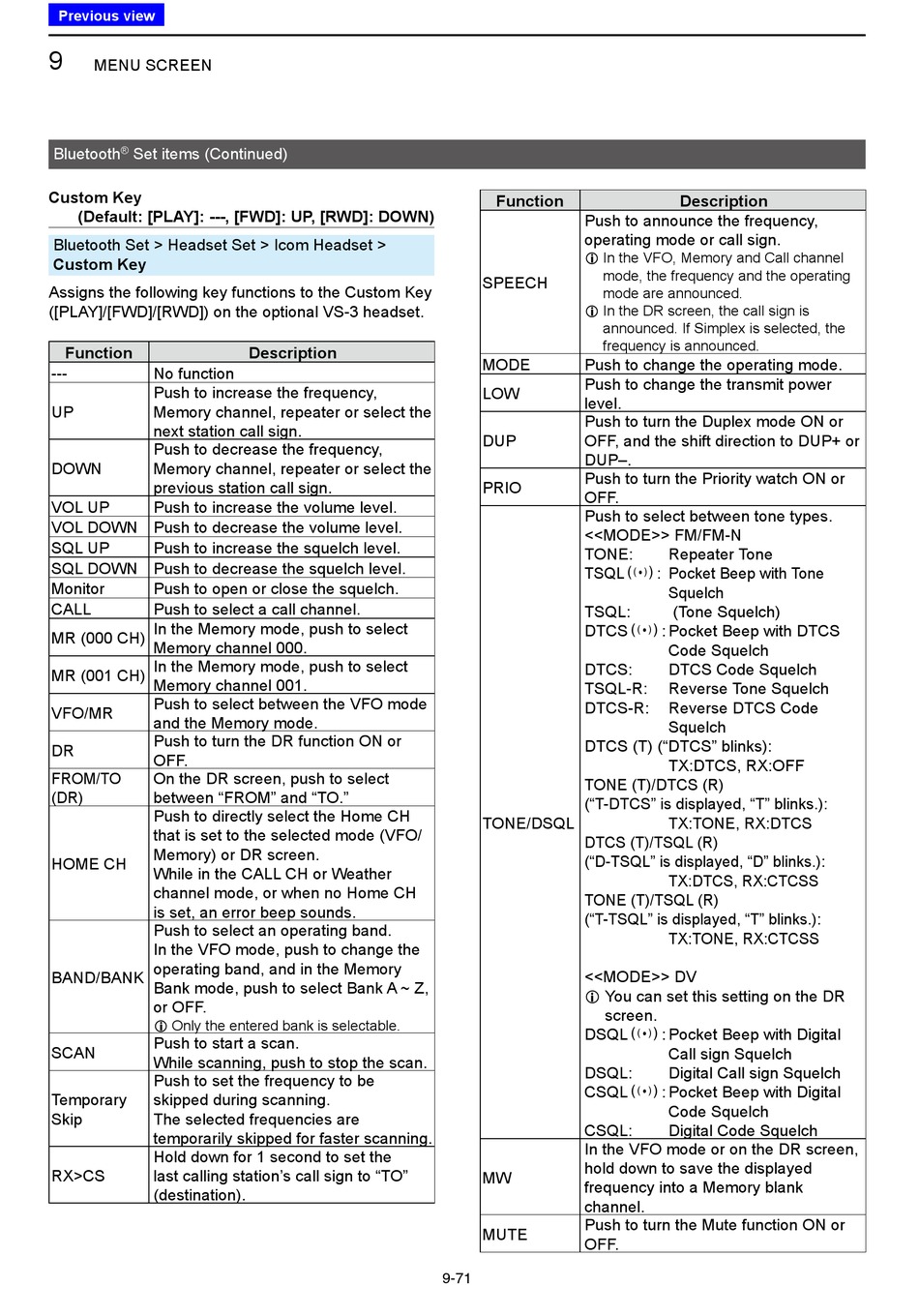

Icom ID-4100A Advanced Manual page 214

Previous view
9
MENU SCREEN
Bluetooth ® Set items (Continued)
Custom Key
(Default: [PLAY]: ---, [FWD]: UP, [RWD]: DOWN)
Bluetooth Set > Headset Set > Icom Headset >
Custom Key
Assigns the following key functions to the Custom Key
([PLAY]/[FWD]/[RWD]) on the optional VS-3 headset.
Function
--- No function
Push to increase the frequency,
UP Memory channel, repeater or select the
next station call sign.
Push to decrease the frequency,
DOWN Memory channel, repeater or select the
previous station call sign.
VOL UP Push to increase the volume level.
VOL DOWN Push to decrease the volume level.
SQL UP Push to increase the squelch level.
SQL DOWN Push to decrease the squelch level.
Monitor Push to open or close the squelch.
CALL Push to select a call channel.
In the Memory mode, push to select
MR (000 CH)
Memory channel 000.
In the Memory mode, push to select
MR (001 CH)
Memory channel 001.
Push to select between the VFO mode
VFO/MR
and the Memory mode.
Push to turn the DR function ON or
DR
OFF.
FROM/TO On the DR screen, push to select
(DR) between "FROM" and "TO."
Push to directly select the Home CH
that is set to the selected mode (VFO/
Memory) or DR screen.
HOME CH
While in the CALL CH or Weather
channel mode, or when no Home CH
is set, an error beep sounds.
Push to select an operating band.
In the VFO mode, push to change the
operating band, and in the Memory
BAND/BANK
Bank mode, push to select Bank A ~ Z,
or OFF.
L Only the entered bank is selectable.
Push to start a scan.
SCAN
While scanning, push to stop the scan.
Push to set the frequency to be
Temporary skipped during scanning.
Skip The selected frequencies are
temporarily skipped for faster scanning.
Hold down for 1 second to set the
RX>CS last calling station's call sign to "TO"
(destination).
Description
Function
Push to announce the frequency,
operating mode or call sign.
L In the VFO, Memory and Call channel
mode, the frequency and the operating
SPEECH
mode are announced.
L In the DR screen, the call sign is
announced. If Simplex is selected, the
frequency is announced.
MODE Push to change the operating mode.
Push to change the transmit power
LOW
level.
Push to turn the Duplex mode ON or
DUP OFF, and the shift direction to DUP+ or
DUP–.
Push to turn the Priority watch ON or
PRIO
OFF.
Push to select between tone types.
<<MODE>> FM/FM-N
TONE:
TSQLS: Pocket Beep with Tone
TSQL:
DTCSS: Pocket Beep with DTCS
DTCS:
TSQL-R:
DTCS-R:
DTCS (T) ("DTCS" blinks):
TONE (T)/DTCS (R)
("T-DTCS" is displayed, "T" blinks.):
TONE/DSQL
DTCS (T)/TSQL (R)
("D-TSQL" is displayed, "D" blinks.):
TONE (T)/TSQL (R)
("T-TSQL" is displayed, "T" blinks.):
<<MODE>> DV
L You can set this setting on the DR
screen.
DSQLS: Pocket Beep with Digital
DSQL:
CSQLS: Pocket Beep with Digital
CSQL:
In the VFO mode or on the DR screen,
hold down to save the displayed
MW
frequency into a Memory blank
channel.
Push to turn the Mute function ON or
MUTE
OFF.
9-71
Description
Repeater Tone
Squelch
(Tone Squelch)
Code Squelch
DTCS Code Squelch
Reverse Tone Squelch
Reverse DTCS Code
Squelch
TX:DTCS, RX:OFF
TX:TONE, RX:DTCS
TX:DTCS, RX:CTCSS
TX:TONE, RX:CTCSS
Call sign Squelch
Digital Call sign Squelch
Code Squelch
Digital Code Squelch
