13

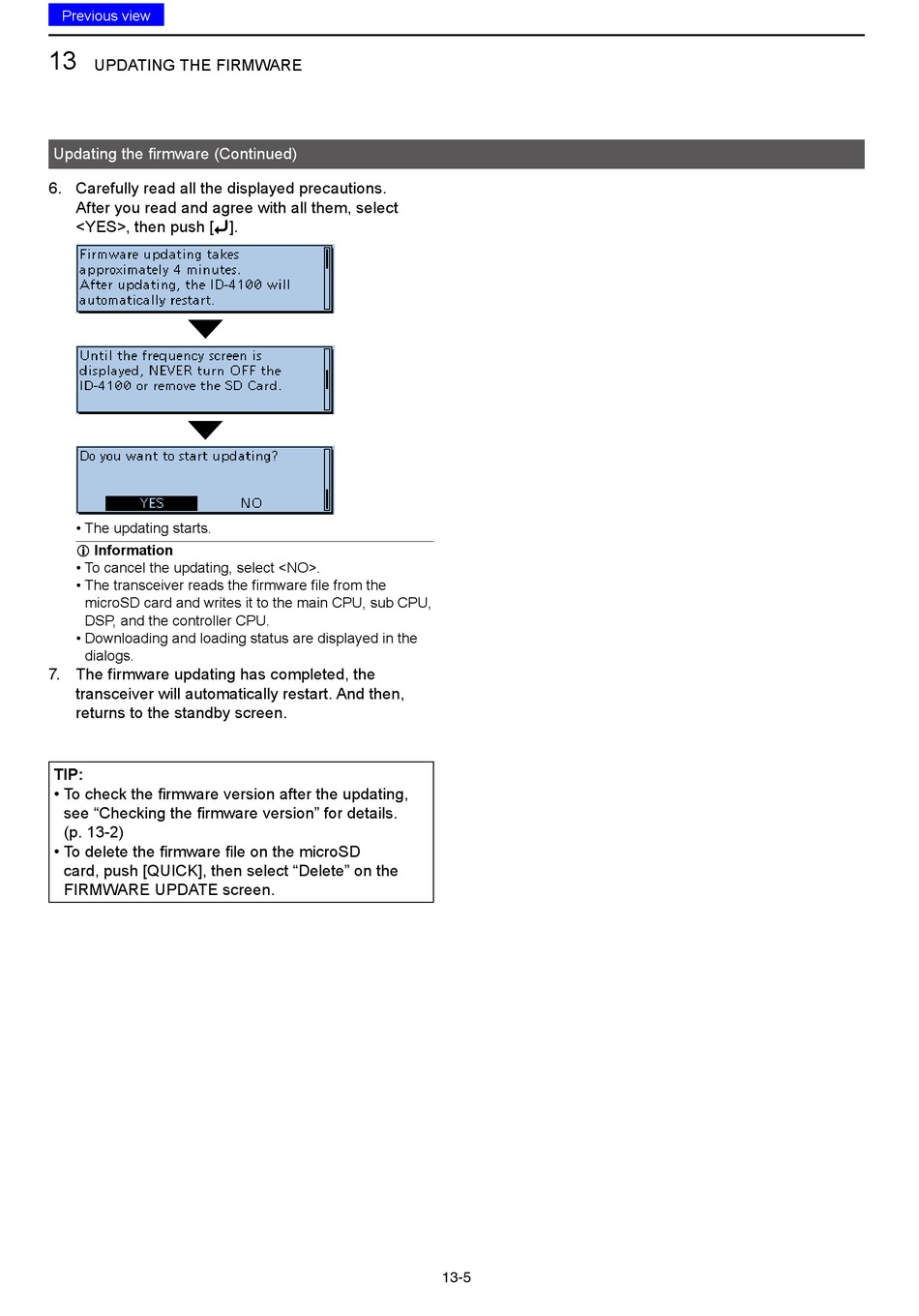

UPDATING THE FIRMWARE
Updating the firmware (Continued)
6. Carefully read all the displayed precautions.
After you read and agree with all them, select
<YES>, then push [ï].
• The updating starts.
Information
L
• To cancel the updating, select <NO>.
• The transceiver reads the firmware file from the
microSD card and writes it to the main CPU, sub CPU,
DSP, and the controller CPU.
• Downloading and loading status are displayed in the
dialogs.
7. The firmware updating has completed, the
transceiver will automatically restart. And then,
returns to the standby screen.
TIP:
• To check the firmware version after the updating,
see "Checking the firmware version" for details.
(p. 13-2)
• To delete the firmware file on the microSD
card, push [QUICK], then select "Delete" on the
FIRMWARE UPDATE screen.
13-5
