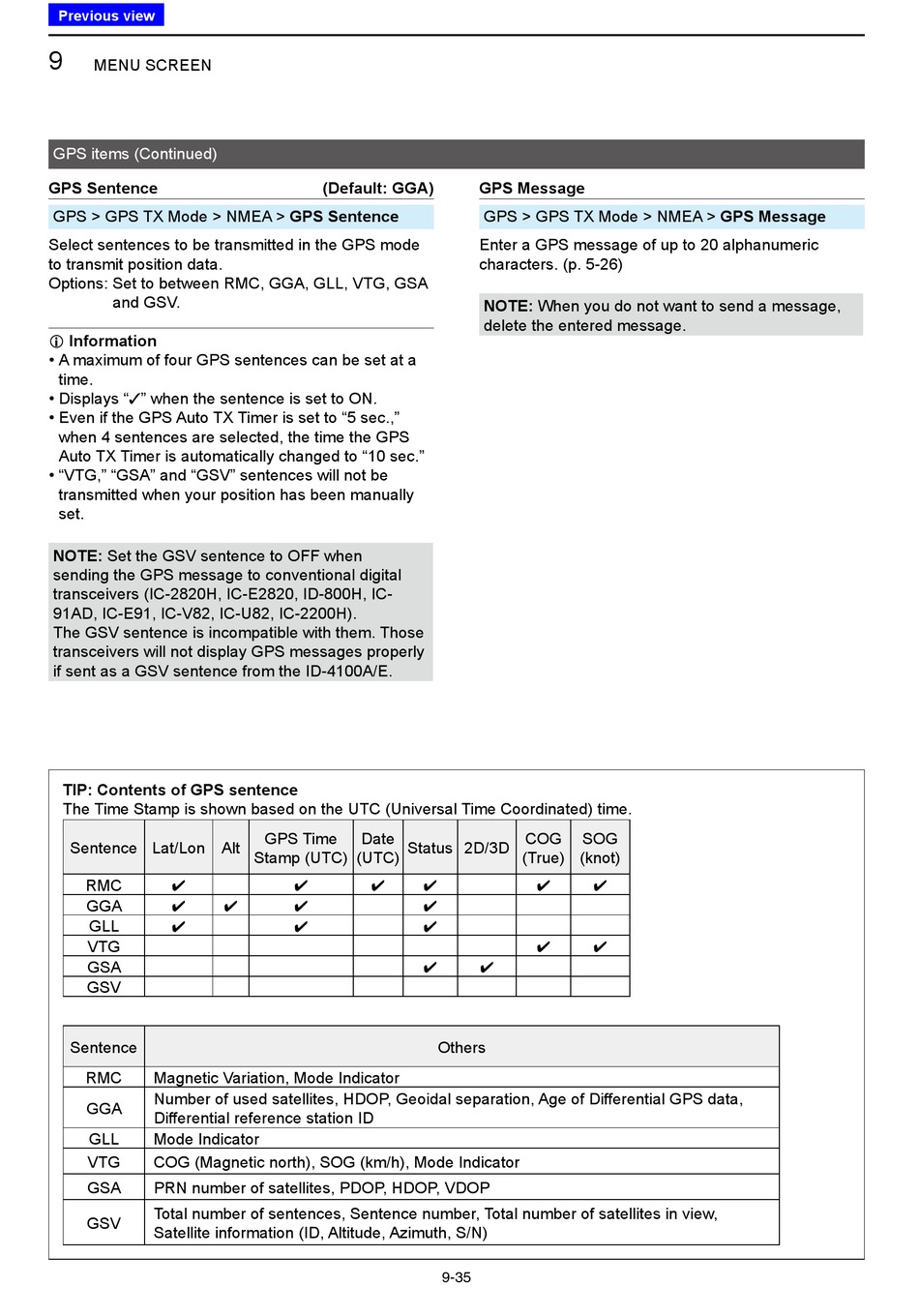

GPS items (Continued)
GPS Sentence
GPS > GPS TX Mode > NMEA > GPS Sentence
Select sentences to be transmitted in the GPS mode
to transmit position data.
Options: Set to between RMC, GGA, GLL, VTG, GSA
and GSV.
Information
L
• A maximum of four GPS sentences can be set at a
time.
• Displays "✓" when the sentence is set to ON.
• Even if the GPS Auto TX Timer is set to "5 sec.,"
when 4 sentences are selected, the time the GPS
Auto TX Timer is automatically changed to "10 sec."
• "VTG," "GSA" and "GSV" sentences will not be
transmitted when your position has been manually
set.
NOTE: Set the GSV sentence to OFF when
sending the GPS message to conventional digital
transceivers (IC-2820H, IC-E2820, ID-800H, IC-
91AD, IC-E91, IC-V82, IC-U82, IC-2200H).
The GSV sentence is incompatible with them. Those
transceivers will not display GPS messages properly
if sent as a GSV sentence from the ID-4100A/E.
TIP: Contents of GPS sentence
The Time Stamp is shown based on the UTC (Universal Time Coordinated) time.
Sentence Lat/Lon Alt
RMC
✔
GGA
✔
GLL
✔
VTG
GSA
GSV
Sentence
RMC Magnetic Variation, Mode Indicator
Number of used satellites, HDOP, Geoidal separation, Age of Differential GPS data,
GGA
Differential reference station ID
GLL Mode Indicator
VTG COG (Magnetic north), SOG (km/h), Mode Indicator
GSA PRN number of satellites, PDOP, HDOP, VDOP
Total number of sentences, Sentence number, Total number of satellites in view,
GSV
Satellite information (ID, Altitude, Azimuth, S/N)
(Default: GGA)
GPS Time Date
Stamp (UTC) (UTC)
✔ ✔
✔ ✔
✔
GPS Message
GPS > GPS TX Mode > NMEA > GPS Message
Enter a GPS message of up to 20 alphanumeric
characters. (p. 5-26)
NOTE: When you do not want to send a message,
delete the entered message.
COG
Status 2D/3D
(True) (knot)
✔ ✔
✔
✔
✔
✔ ✔
