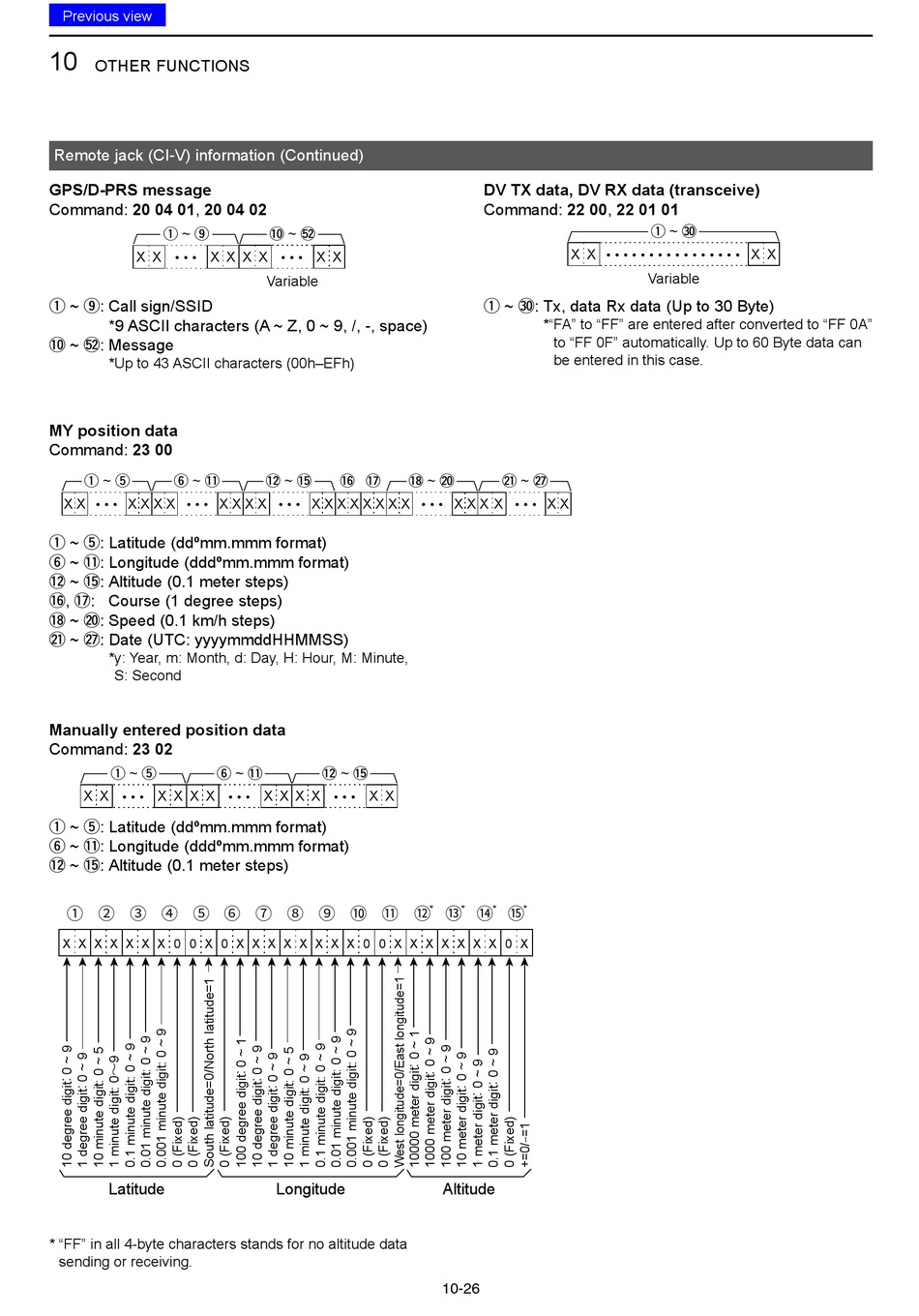

Remote jack (CI-V) information (Continued)
GPS/D-PRS message
Command: 20 04 01, 20 04 02
q ~ o
X X X X
• • •
q ~ o: Call sign/SSID
*9 ASCII characters (A ~ Z, 0 ~ 9, /, -, space)
!0 ~ %2 : Message
*Up to 43 ASCII characters (00h–EFh)
MY position data
Command: 23 00
q ~ t y ~ !1
X X X X X X X X X X
• • • • • •
q ~ t: Latitude (ddºmm.mmm format)
y ~ !1 : Longitude (dddºmm.mmm format)
!2 ~ !5 : Altitude (0.1 meter steps)
!6 , !7 : Course (1 degree steps)
!8 ~ @0 : Speed (0.1 km/h steps)
@1 ~ @7 : Date (UTC: yyyymmddHHMMSS)
* y: Year, m: Month, d: Day, H: Hour, M: Minute,
S: Second
Manually entered position data
Command: 23 02
q ~ t y ~ !1
X X • • • X X X X
q ~ t: Latitude (ddºmm.mmm format)
y ~ !1 : Longitude (dddºmm.mmm format)
!2 ~ !5 : Altitude (0.1 meter steps)
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
X X X X X X X 0 0 X 0 X X X X X X X X 0 0 X X X X X X X 0 X
Latitude
* "FF" in all 4-byte characters stands for no altitude data
sending or receiving.
!0 ~ %2
X X X X
• • •
Variable
!2 ~ !5
!6 !7
X X X X X X X X
• • •
!2 ~ !5
• • • X X X X • • • X X
Longitude
DV TX data, DV RX data (transceive)
Command: 22 00, 22 01 01
X X
q ~ #0 : Tx, data Rx data (Up to 30 Byte)
*" FA" to "FF" are entered after converted to "FF 0A"
to "FF 0F" automatically. Up to 60 Byte data can
be entered in this case.
!8 ~ @0 @1 ~ @7
X X X X X X
• • • • • •
* * * *
Altitude
10-26
q ~ #0
X X
• • • • • • • • • • • • • • • •
Variable
