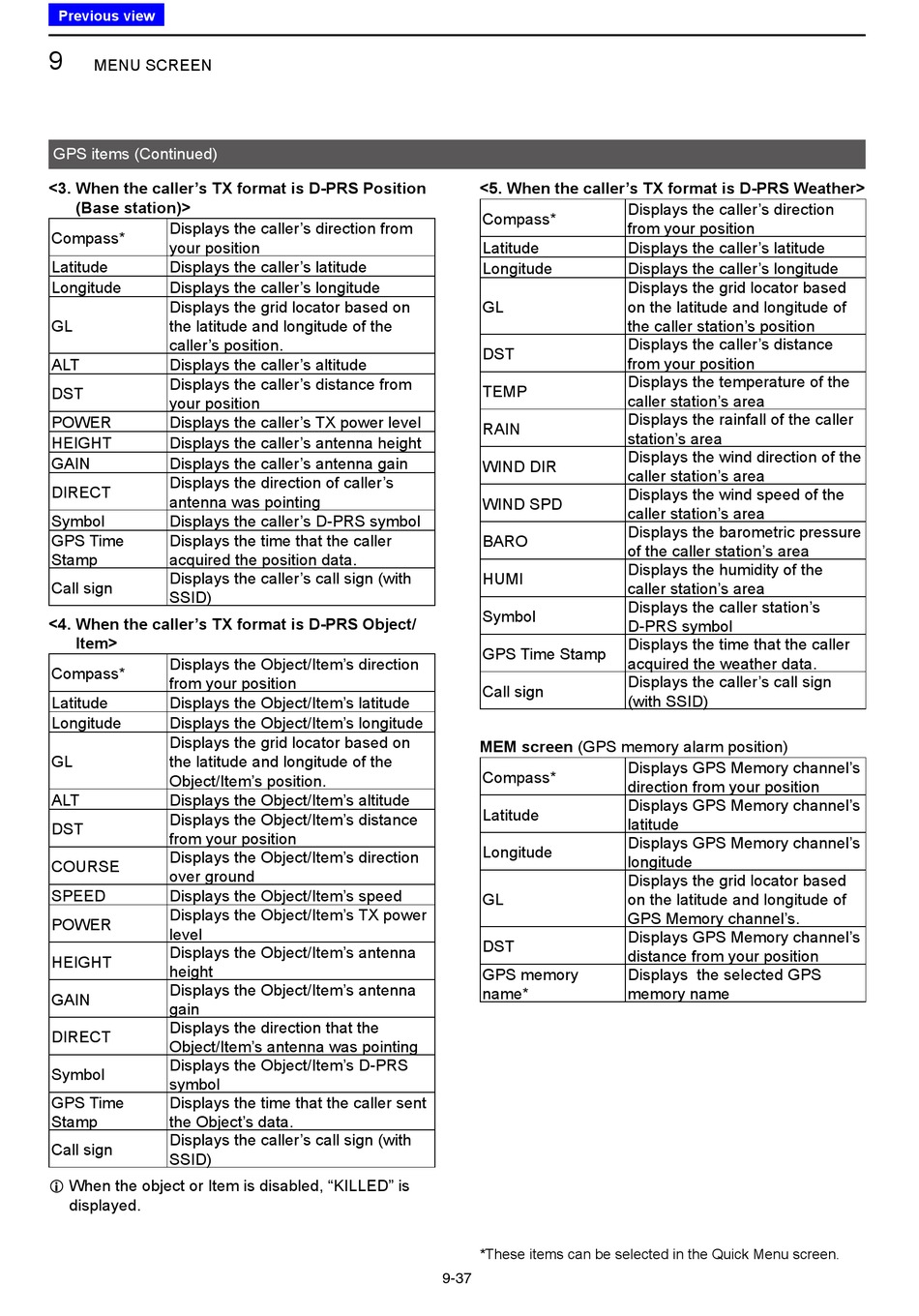

Icom ID-4100A Advanced Manual page 180

Previous view
9
MENU SCREEN
GPS items (Continued)
<3. When the caller's TX format is D-PRS Position
(Base station)>
Displays the caller's direction from
Compass*
your position
Latitude Displays the caller's latitude
Longitude Displays the caller's longitude
Displays the grid locator based on
GL the latitude and longitude of the
caller's position.
ALT Displays the caller's altitude
Displays the caller's distance from
DST
your position
POWER Displays the caller's TX power level
HEIGHT Displays the caller's antenna height
GAIN Displays the caller's antenna gain
Displays the direction of caller's
DIRECT
antenna was pointing
Symbol Displays the caller's D-PRS symbol
GPS Time Displays the time that the caller
Stamp acquired the position data.
Displays the caller's call sign (with
Call sign
SSID)
<4. When the caller's TX format is D-PRS Object/
Item>
Displays the Object/Item's direction
Compass*
from your position
Latitude Displays the Object/Item's latitude
Longitude Displays the Object/Item's longitude
Displays the grid locator based on
GL the latitude and longitude of the
Object/Item's position.
ALT Displays the Object/Item's altitude
Displays the Object/Item's distance
DST
from your position
Displays the Object/Item's direction
COURSE
over ground
SPEED Displays the Object/Item's speed
Displays the Object/Item's TX power
POWER
level
Displays the Object/Item's antenna
HEIGHT
height
Displays the Object/Item's antenna
GAIN
gain
Displays the direction that the
DIRECT
Object/Item's antenna was pointing
Displays the Object/Item's D-PRS
Symbol
symbol
GPS Time Displays the time that the caller sent
Stamp the Object's data.
Displays the caller's call sign (with
Call sign
SSID)
L When the object or Item is disabled, "KILLED" is
displayed.
<5. When the caller's TX format is D-PRS Weather>
Compass*
Latitude
Longitude
GL
DST
TEMP
RAIN
WIND DIR
WIND SPD
BARO
HUMI
Symbol
GPS Time Stamp
Call sign
MEM screen (GPS memory alarm position)
Compass*
Latitude
Longitude
GL
DST
GPS memory
name*
*These items can be selected in the Quick Menu screen.
9-37
Displays the caller's direction
from your position
Displays the caller's latitude
Displays the caller's longitude
Displays the grid locator based
on the latitude and longitude of
the caller station's position
Displays the caller's distance
from your position
Displays the temperature of the
caller station's area
Displays the rainfall of the caller
station's area
Displays the wind direction of the
caller station's area
Displays the wind speed of the
caller station's area
Displays the barometric pressure
of the caller station's area
Displays the humidity of the
caller station's area
Displays the caller station's
D-PRS symbol
Displays the time that the caller
acquired the weather data.
Displays the caller's call sign
(with SSID)
Displays GPS Memory channel's
direction from your position
Displays GPS Memory channel's
latitude
Displays GPS Memory channel's
longitude
Displays the grid locator based
on the latitude and longitude of
GPS Memory channel's.
Displays GPS Memory channel's
distance from your position
Displays the selected GPS
memory name
