12

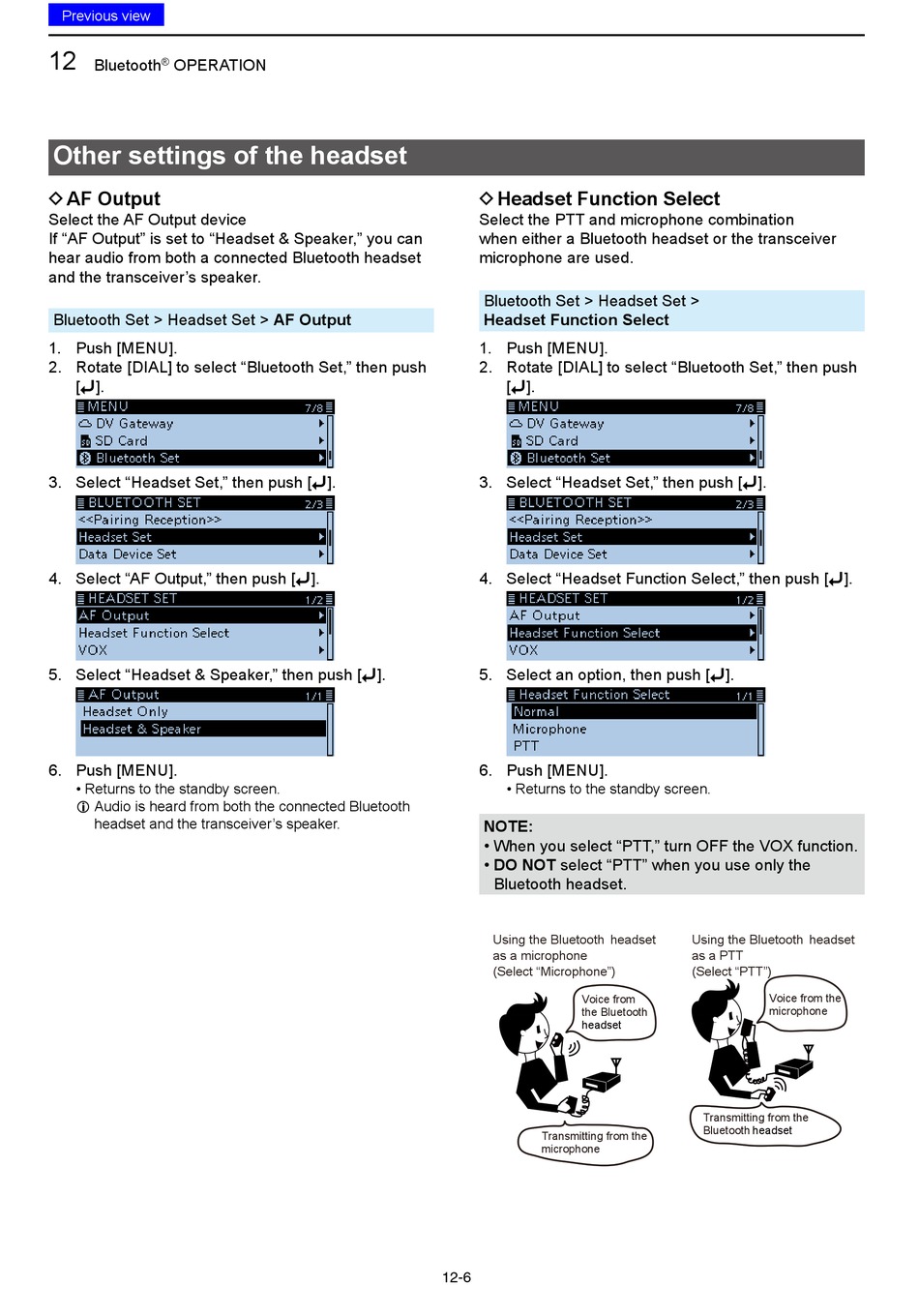

Bluetooth ® OPERATION

Other settings of the headset

D AF Output

Select the AF Output device
If "AF Output" is set to "Headset & Speaker," you can
hear audio from both a connected Bluetooth headset
and the transceiver's speaker.
Bluetooth Set > Headset Set > AF Output
1. Push [MENU].
2. Rotate [DIAL] to select "Bluetooth Set," then push
[ï].
3. Select "Headset Set," then push [ï].
4. Select "AF Output," then push [ï].
5. Select "Headset & Speaker," then push [ï].
6. Push [MENU].
• Returns to the standby screen.
L Audio is heard from both the connected Bluetooth
headset and the transceiver's speaker.

D Headset Function Select

Select the PTT and microphone combination
when either a Bluetooth headset or the transceiver
microphone are used.
Bluetooth Set > Headset Set >
Headset Function Select
1. Push [MENU].
2. Rotate [DIAL] to select "Bluetooth Set," then push
[ï].
3. Select "Headset Set," then push [ï].
4. Select "Headset Function Select," then push [ï].
5. Select an option, then push [ï].
6. Push [MENU].
• Returns to the standby screen.
NOTE:
• When you select "PTT," turn OFF the VOX function.
• DO NOT select "PTT" when you use only the
Bluetooth headset.
Using the Bluetooth headset
as a microphone
(Select "Microphone")
Voice from
the Bluetooth
headset
Transmitting from the
microphone
12-6
Using the Bluetooth headset
as a PTT
(Select "PTT")
Voice from the
microphone
Transmitting from the
Bluetooth headset
