1

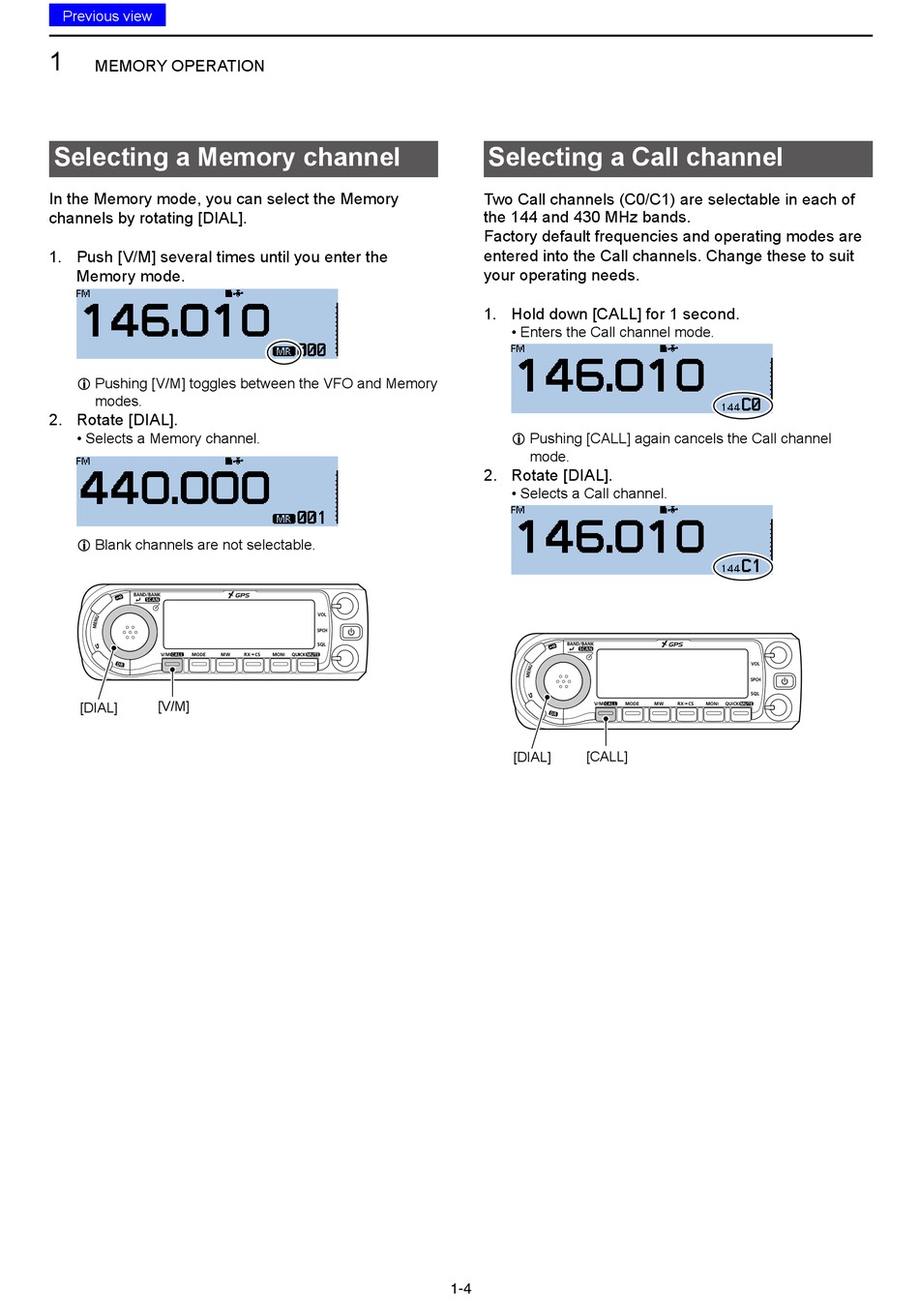

MEMORY OPERATION
Selecting a Memory channel
In the Memory mode, you can select the Memory
channels by rotating [DIAL].
1. Push [V/M] several times until you enter the
Memory mode.
L Pushing [V/M] toggles between the VFO and Memory
modes.
2. Rotate [DIAL].
• Selects a Memory channel.
L Blank channels are not selectable.
[V/M]
[DIAL]
Selecting a Call channel
Two Call channels (C0/C1) are selectable in each of
the 144 and 430 MHz bands.
Factory default frequencies and operating modes are
entered into the Call channels. Change these to suit
your operating needs.
1. Hold down [CALL] for 1 second.
• Enters the Call channel mode.
L Pushing [CALL] again cancels the Call channel
mode.
2. Rotate [DIAL].
• Selects a Call channel.
[DIAL] [CALL]
1-4
