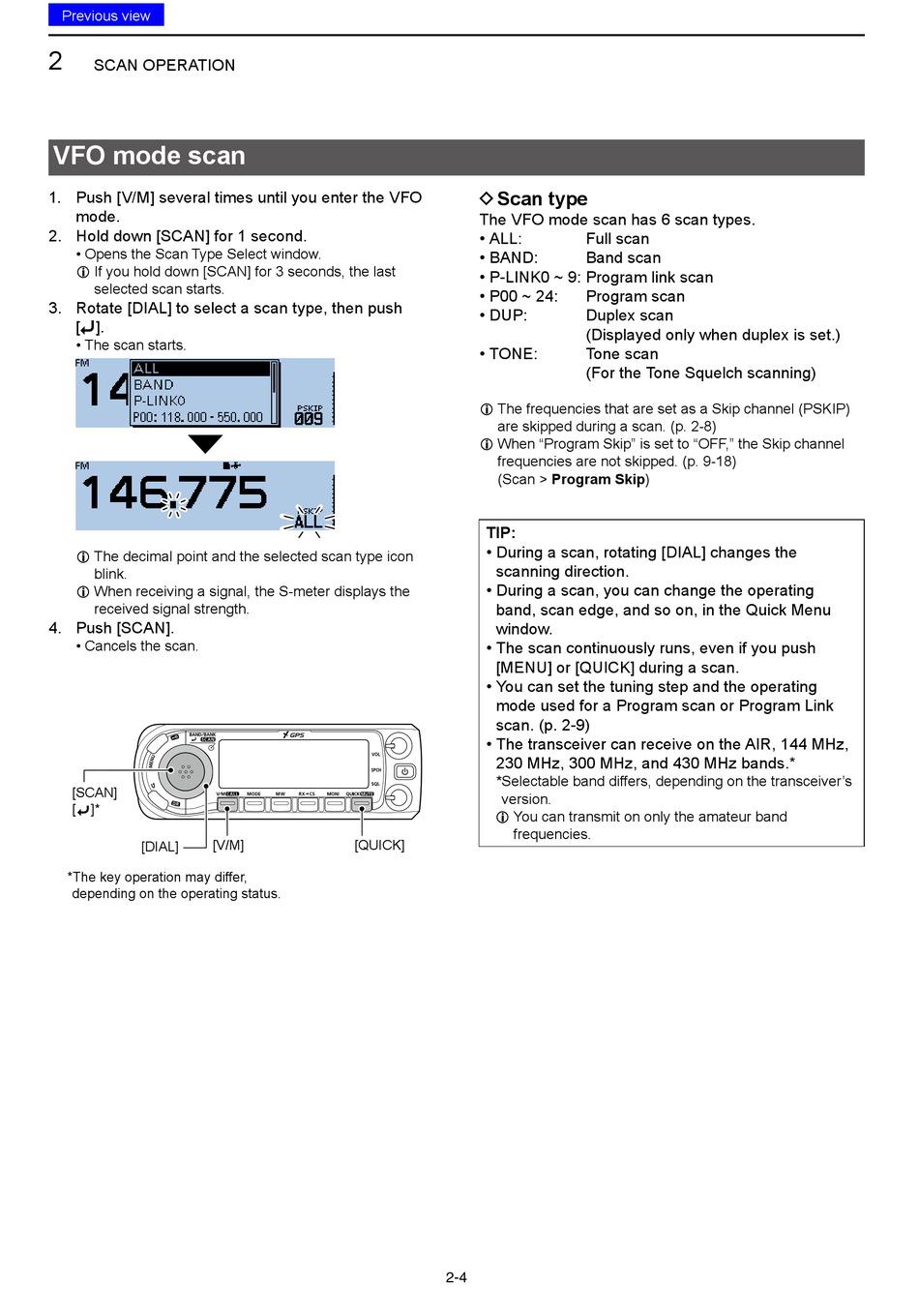

Icom ID-4100A Advanced Manual page 23

Previous view
2
SCAN OPERATION
VFO mode scan
1. Push [V/M] several times until you enter the VFO
mode.
2. Hold down [SCAN] for 1 second.
• Opens the Scan Type Select window.
L If you hold down [SCAN] for 3 seconds, the last
selected scan starts.
3. Rotate [DIAL] to select a scan type, then push
[ï].
• The scan starts.
L The decimal point and the selected scan type icon
blink.
L When receiving a signal, the S-meter displays the
received signal strength.
4. Push [SCAN].
• Cancels the scan.
[SCAN]
[ ]*
[V/M]
[DIAL]
*The key operation may differ,
depending on the operating status.
D Scan type
The VFO mode scan has 6 scan types.
• ALL:
• BAND:
• P-LINK0 ~ 9: Program link scan
• P00 ~ 24:
• DUP:
• TONE:
L The frequencies that are set as a Skip channel (PSKIP)
are skipped during a scan. (p. 2-8)
L When "Program Skip" is set to "OFF," the Skip channel
frequencies are not skipped. (p. 9-18)
(Scan > Program Skip)
TIP:
• During a scan, rotating [DIAL] changes the
scanning direction.
• During a scan, you can change the operating
band, scan edge, and so on, in the Quick Menu
window.
• The scan continuously runs, even if you push
[MENU] or [QUICK] during a scan.
• You can set the tuning step and the operating
mode used for a Program scan or Program Link
scan. (p. 2-9)
• The transceiver can receive on the AIR, 144 MHz,
230 MHz, 300 MHz, and 430 MHz bands.*
* Selectable band differs, depending on the transceiver's
version.
L You can transmit on only the amateur band
frequencies.
[QUICK]
2-4
Full scan
Band scan
Program scan
Duplex scan
(Displayed only when duplex is set.)
Tone scan
(For the Tone Squelch scanning)
