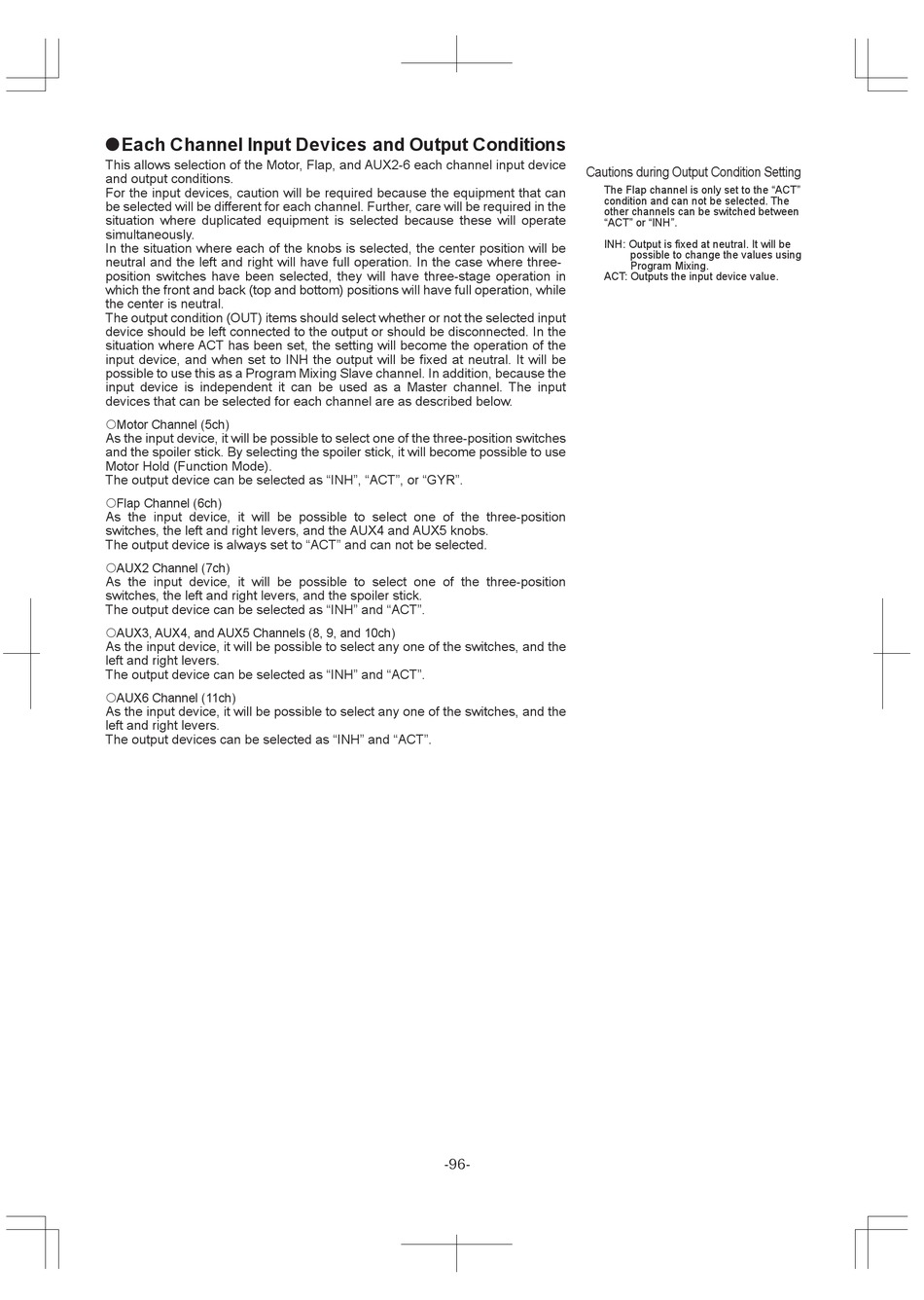

JR ProPo DSX11 Operation Manual page 98

Each Channel Input Devices and Output Conditions
This allows selection of the Motor, Flap, and AUX2-6 each channel input device
and output conditions.
For the input devices, caution will be required because the equipment that can
be selected will be different for each channel. Further, care will be required in the
situation where duplicated equipment is selected because these will operate
simultaneously.
In the situation where each of the knobs is selected, the center position will be
neutral and the left and right will have full operation. In the case where three-
position switches have been selected, they will have three-stage operation in
which the front and back (top and bottom) positions will have full operation, while
the center is neutral.
The output condition (OUT) items should select whether or not the selected input
device should be left connected to the output or should be disconnected. In the
situation where ACT has been set, the setting will become the operation of the
input device, and when set to INH the output will be fixed at neutral. It will be
possible to use this as a Program Mixing Slave channel. In addition, because the
input device is independent it can be used as a Master channel. The input
devices that can be selected for each channel are as described below.
Motor Channel (5ch)
As the input device, it will be possible to select one of the three-position switches
and the spoiler stick. By selecting the spoiler stick, it will become possible to use
Motor Hold (Function Mode).
The output device can be selected as "INH", "ACT", or "GYR".
Flap Channel (6ch)
As the input device, it will be possible to select one of the three-position
switches, the left and right levers, and the AUX4 and AUX5 knobs.
The output device is always set to "ACT" and can not be selected.
AUX2 Channel (7ch)
As the input device, it will be possible to select one of the three-position
switches, the left and right levers, and the spoiler stick.
The output device can be selected as "INH" and "ACT".
AUX3, AUX4, and AUX5 Channels (8, 9, and 10ch)
As the input device, it will be possible to select any one of the switches, and the
left and right levers.
The output device can be selected as "INH" and "ACT".
AUX6 Channel (11ch)
As the input device, it will be possible to select any one of the switches, and the
left and right levers.
The output devices can be selected as "INH" and "ACT".
Cautions during Output Condition Setting
The Flap channel is only set to the "ACT"
condition and can not be selected. The
other channels can be switched between
"ACT" or "INH".
INH: Output is fixed at neutral. It will be
possible to change the values using
Program Mixing.
ACT: Outputs the input device value.
