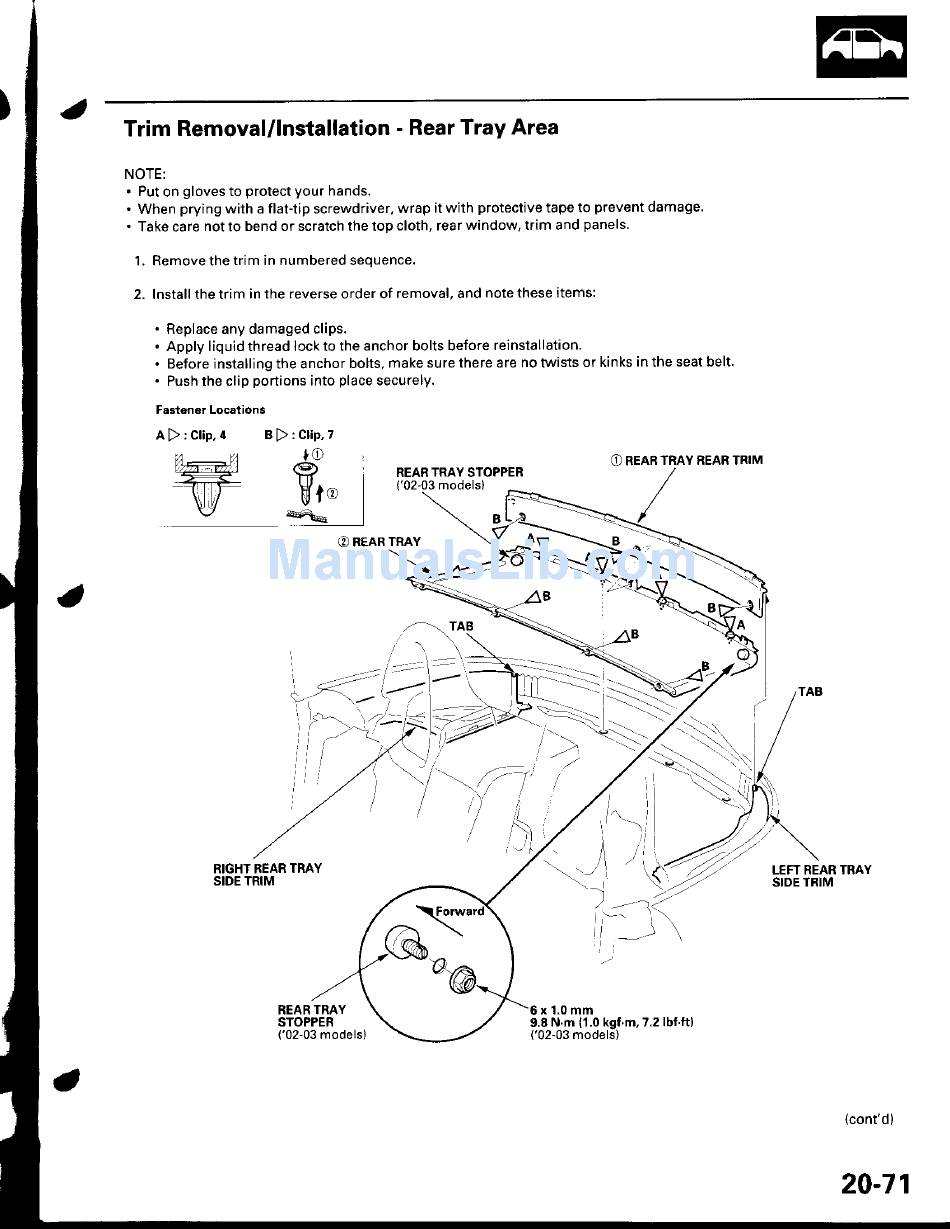

Trim Removal/lnstallation - Rear Tray Area
NOTE:
. Put on gloves to protect your hands.
' When prying with a flat-tip screwdriver. wrap it with protective tape to prevent damage.
. Take care not to bend or scratch the top cloth, rear window, trim and panels.
1 , R e m o v e t h e t r i m i n n u m b e r e d s e q u e n c e .
2. lnstallthe trim in the reverse order of removal, and note these items:
. Replace any damaged clips.
. Apply liquid thread lock to the anchor bolts before reinstallation.
. Before installing the anchor bolts, make sure there are no twists or kinks in the seat belt.
. Push the clip portions into place securely.
Fast6ner Locations
B > : C l i p , 7
l C l
/@l
H
V f o
€r\e
1
,
i
'>-----
i -'
\
.
.
-
I
- ' L -
A > : C l i p , a
a _
'#!
l-f
REAR TRAY STOPPER
('02-03 models)
@ REAR TRAY
REAR TRAY
STOPPER
('02-03 models)
x 1 . 0 m m
9.8 N.m {1.0 kgf.m,7.2lbf.ft}
('02-03 models)
(cont'd)
O REAR TRAY REAR TRIM
20-71
