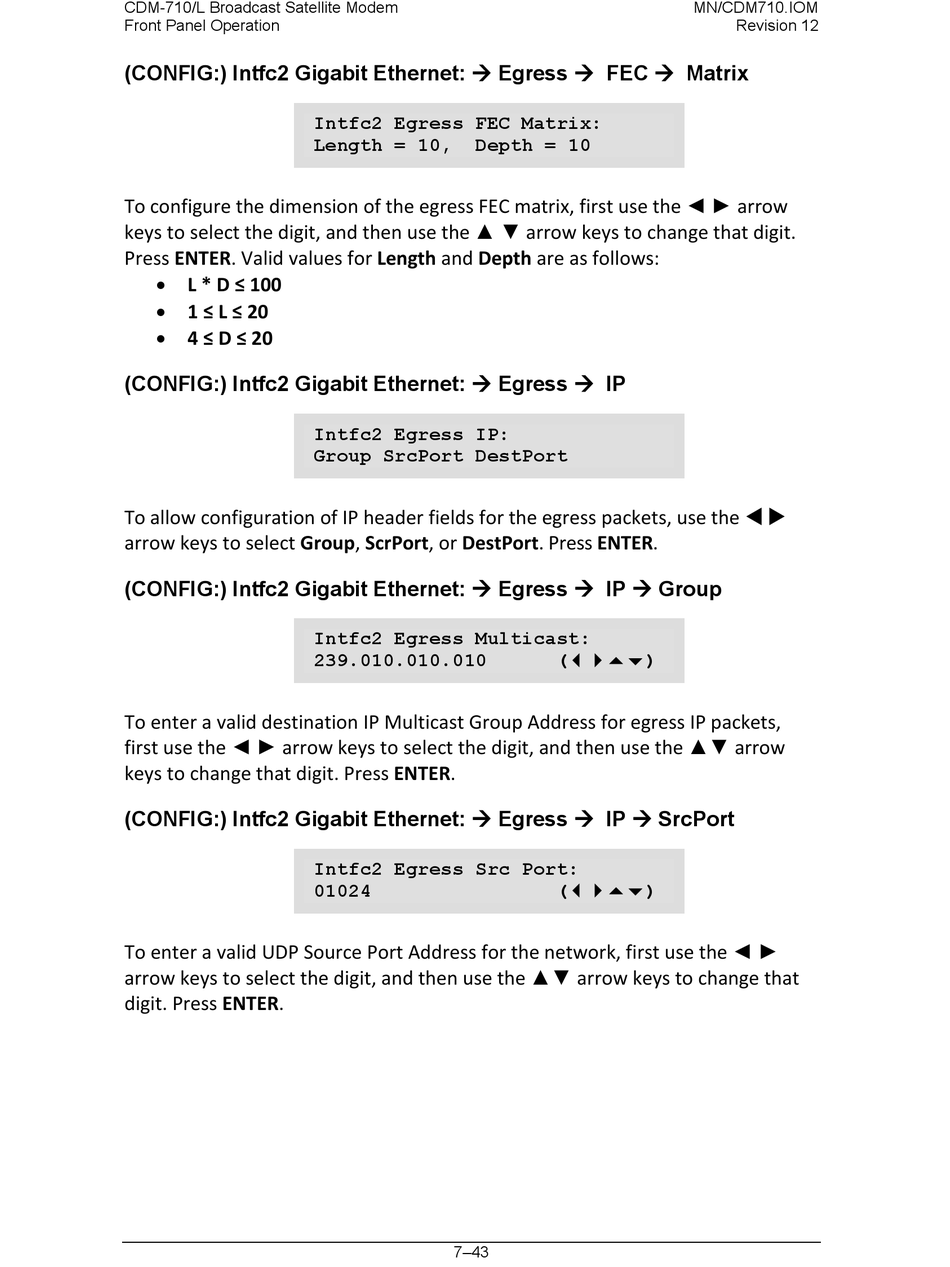

Comtech EF Data CDM-710 Installation And Operation Manual page 149

CDM-710/L Broadcast Satellite Modem
Front Panel Operation
(CONFIG:) Intfc2 Gigabit Ethernet:  Egress  FEC  Matrix
To configure the dimension of the egress FEC matrix, first use the ◄ ► arrow
keys to select the digit, and then use the ▲ ▼ arrow keys to change that digit.
Press ENTER. Valid values for Length and Depth are as follows:
• L * D ≤ 100
• 1 ≤ L ≤ 20
• 4 ≤ D ≤ 20
(CONFIG:) Intfc2 Gigabit Ethernet:  Egress  IP
To allow configuration of IP header fields for the egress packets, use the  
arrow keys to select Group, ScrPort, or DestPort. Press ENTER.
(CONFIG:) Intfc2 Gigabit Ethernet:  Egress  IP  Group
To enter a valid destination IP Multicast Group Address for egress IP packets,
first use the ◄ ► arrow keys to select the digit, and then use the ▲▼ arrow
keys to change that digit. Press ENTER.
(CONFIG:) Intfc2 Gigabit Ethernet:  Egress  IP  SrcPort
To enter a valid UDP Source Port Address for the network, first use the ◄ ►
arrow keys to select the digit, and then use the ▲▼ arrow keys to change that
digit. Press ENTER.
Intfc2 Egress FEC Matrix:
Length = 10, Depth = 10
Intfc2 Egress IP:
Group SrcPort DestPort
Intfc2 Egress Multicast:
239.010.010.010
Intfc2 Egress Src Port:
01024
7–43
MN/CDM710.IOM
()
()
Revision 12
