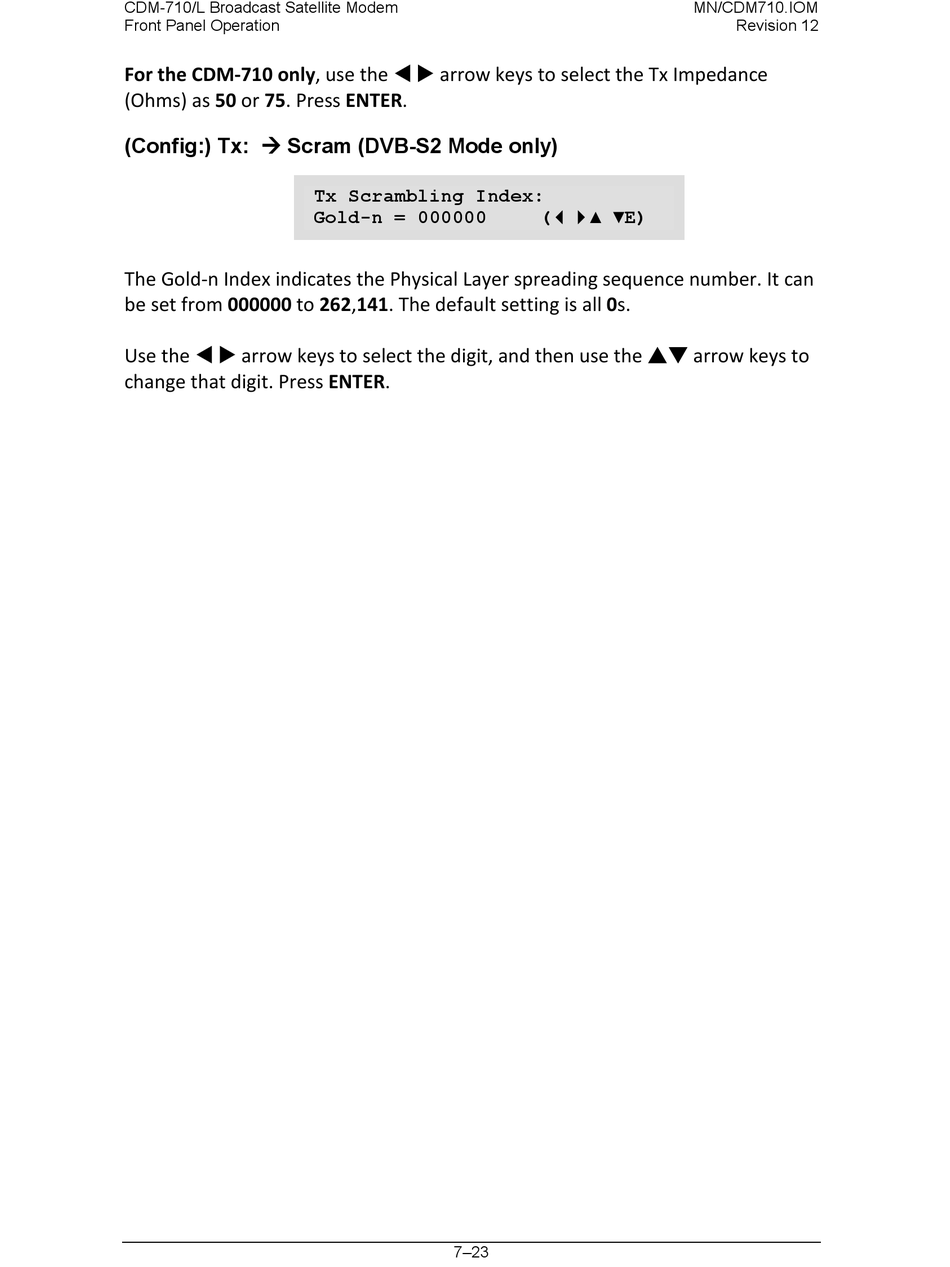

CDM-710/L Broadcast Satellite Modem
Front Panel Operation
For the CDM-710 only, use the arrow keys to select the Tx Impedance
(Ohms) as 50 or 75. Press ENTER.
(Config:) Tx: Scram (DVB-S2 Mode only)
The Gold-n Index indicates the Physical Layer spreading sequence number. It can
be set from 000000 to 262,141. The default setting is all 0s.
Use the arrow keys to select the digit, and then use the arrow keys to
change that digit. Press ENTER.
Tx Scrambling Index:
Gold-n = 000000
7–23
MN/CDM710.IOM
(▲ ▼E)
Revision 12
