CDM-710/L Broadcast Satellite Modem
Front Panel Operation

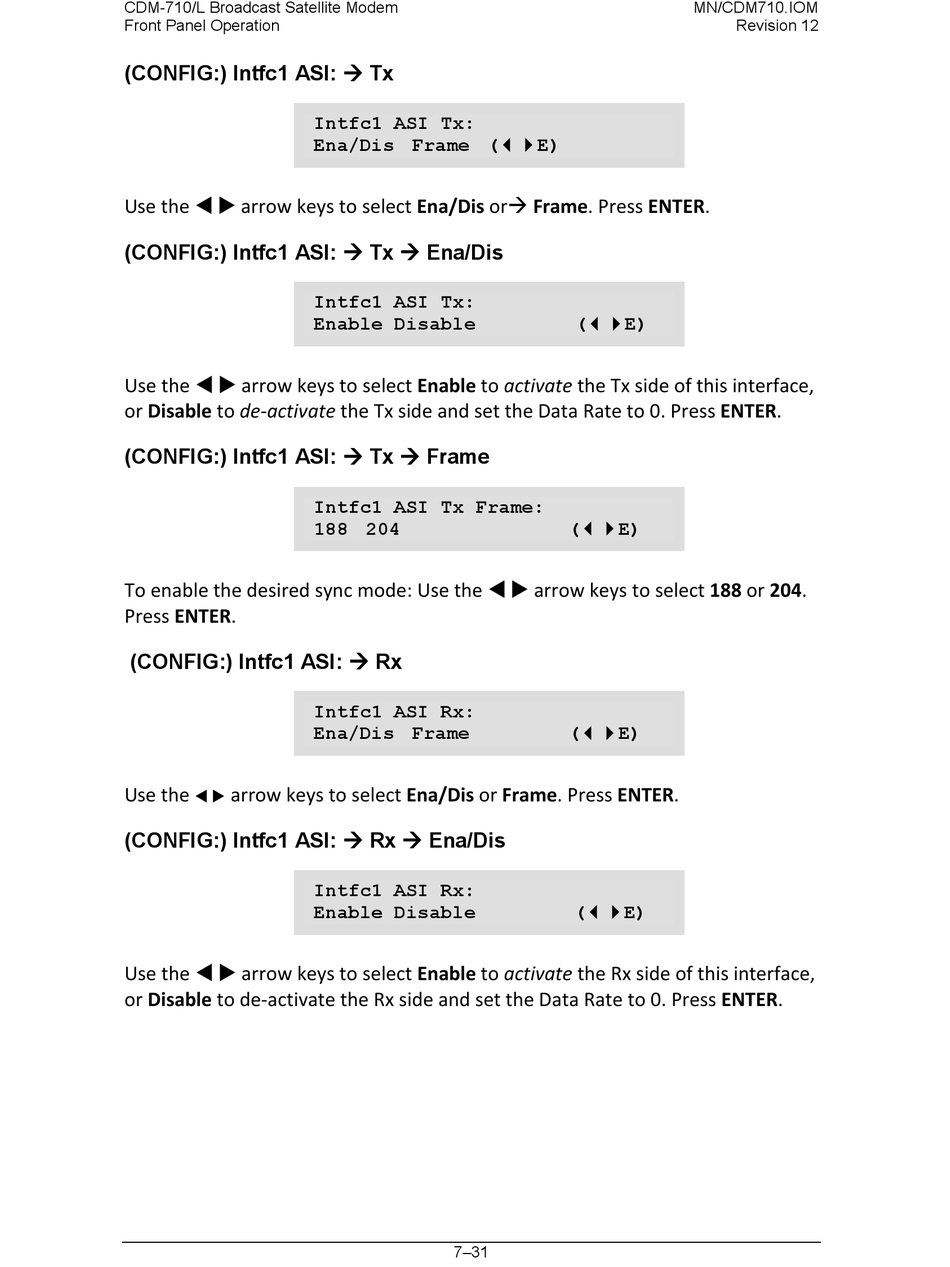

(CONFIG:) Intfc1 ASI:  Tx
Use the   arrow keys to select Ena/Dis or Frame. Press ENTER.
(CONFIG:) Intfc1 ASI:  Tx  Ena/Dis
Use the   arrow keys to select Enable to activate the Tx side of this interface,
or Disable to de-activate the Tx side and set the Data Rate to 0. Press ENTER.
(CONFIG:) Intfc1 ASI:  Tx  Frame
To enable the desired sync mode: Use the   arrow keys to select 188 or 204.
Press ENTER.
(CONFIG:) Intfc1 ASI:  Rx
Use the arrow keys to select Ena/Dis or Frame. Press ENTER.
 
(CONFIG:) Intfc1 ASI:  Rx  Ena/Dis
Use the   arrow keys to select Enable to activate the Rx side of this interface,
or Disable to de-activate the Rx side and set the Data Rate to 0. Press ENTER.
Intfc1 ASI Tx:
Ena/Dis Frame (E)
Intfc1 ASI Tx:
Enable Disable
Intfc1 ASI Tx Frame:
188 204
Intfc1 ASI Rx:
Ena/Dis Frame
Intfc1 ASI Rx:
Enable Disable
7–31
MN/CDM710.IOM
Revision 12
