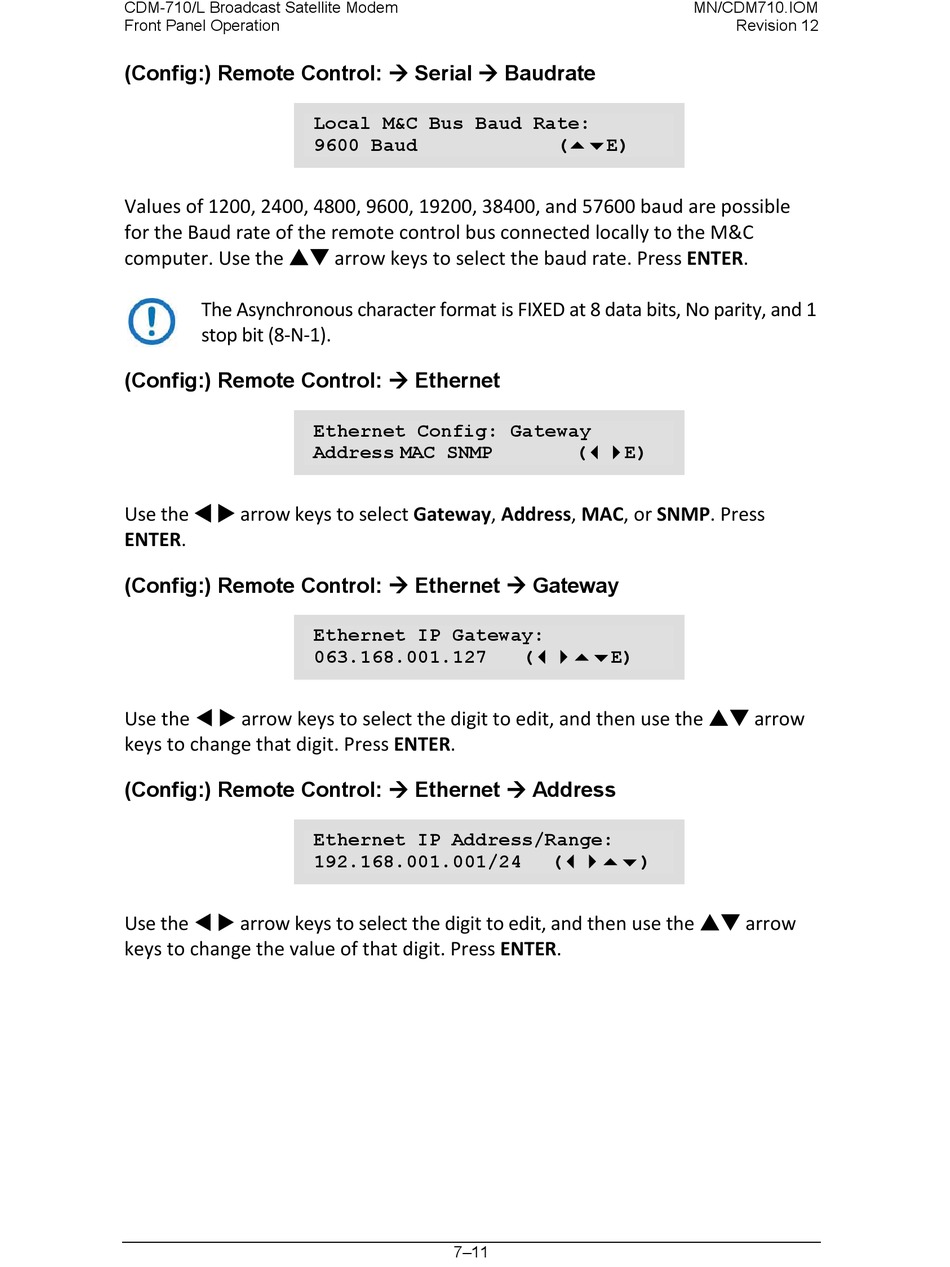

Comtech EF Data CDM-710 Installation And Operation Manual page 117

CDM-710/L Broadcast Satellite Modem
Front Panel Operation
(Config:) Remote Control:  Serial  Baudrate
Values of 1200, 2400, 4800, 9600, 19200, 38400, and 57600 baud are possible
for the Baud rate of the remote control bus connected locally to the M&C
computer. Use the  arrow keys to select the baud rate. Press ENTER.
The Asynchronous character format is FIXED at 8 data bits, No parity, and 1
stop bit (8-N-1).
(Config:) Remote Control:  Ethernet
Use the   arrow keys to select Gateway, Address, MAC, or SNMP. Press
ENTER.
(Config:) Remote Control:  Ethernet  Gateway
Use the   arrow keys to select the digit to edit, and then use the  arrow
keys to change that digit. Press ENTER.
(Config:) Remote Control:  Ethernet  Address
Use the   arrow keys to select the digit to edit, and then use the  arrow
keys to change the value of that digit. Press ENTER.
Local M&C Bus Baud Rate:
9600 Baud
Ethernet Config: Gateway
Address MAC SNMP
Ethernet IP Gateway:
063.168.001.127
Ethernet IP Address/Range:
192.168.001.001/24
7–11
MN/CDM710.IOM
(E)
(E)
(E)
()
Revision 12
