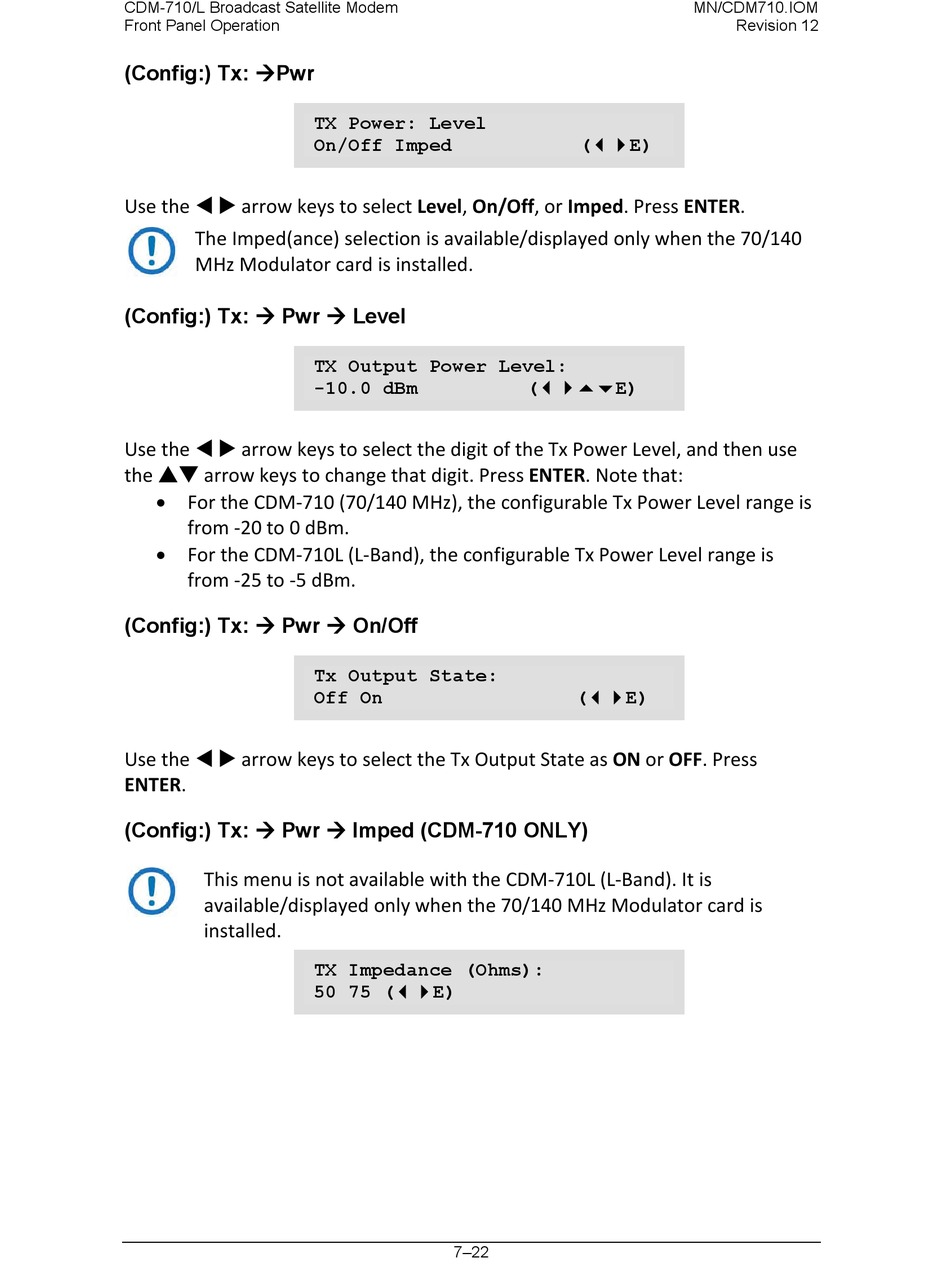

CDM-710/L Broadcast Satellite Modem
Front Panel Operation
(Config:) Tx: Pwr
Use the   arrow keys to select Level, On/Off, or Imped. Press ENTER.
The Imped(ance) selection is available/displayed only when the 70/140
MHz Modulator card is installed.
(Config:) Tx:  Pwr  Level
Use the   arrow keys to select the digit of the Tx Power Level, and then use
the  arrow keys to change that digit. Press ENTER. Note that:
• For the CDM-710 (70/140 MHz), the configurable Tx Power Level range is
from -20 to 0 dBm.
• For the CDM-710L (L-Band), the configurable Tx Power Level range is
from -25 to -5 dBm.
(Config:) Tx:  Pwr  On/Off
Use the   arrow keys to select the Tx Output State as ON or OFF. Press
ENTER.
(Config:) Tx:  Pwr  Imped (CDM-710 ONLY)
This menu is not available with the CDM-710L (L-Band). It is
available/displayed only when the 70/140 MHz Modulator card is
installed.
TX Power: Level
On/Off Imped
TX Output Power Level:
-10.0 dBm
Tx Output State:
Off On
TX Impedance (Ohms):
50 75 (E)
7–22
MN/CDM710.IOM
(E)
(E)
(E)
Revision 12
