CDM-710/L Broadcast Satellite Modem
Appendix B

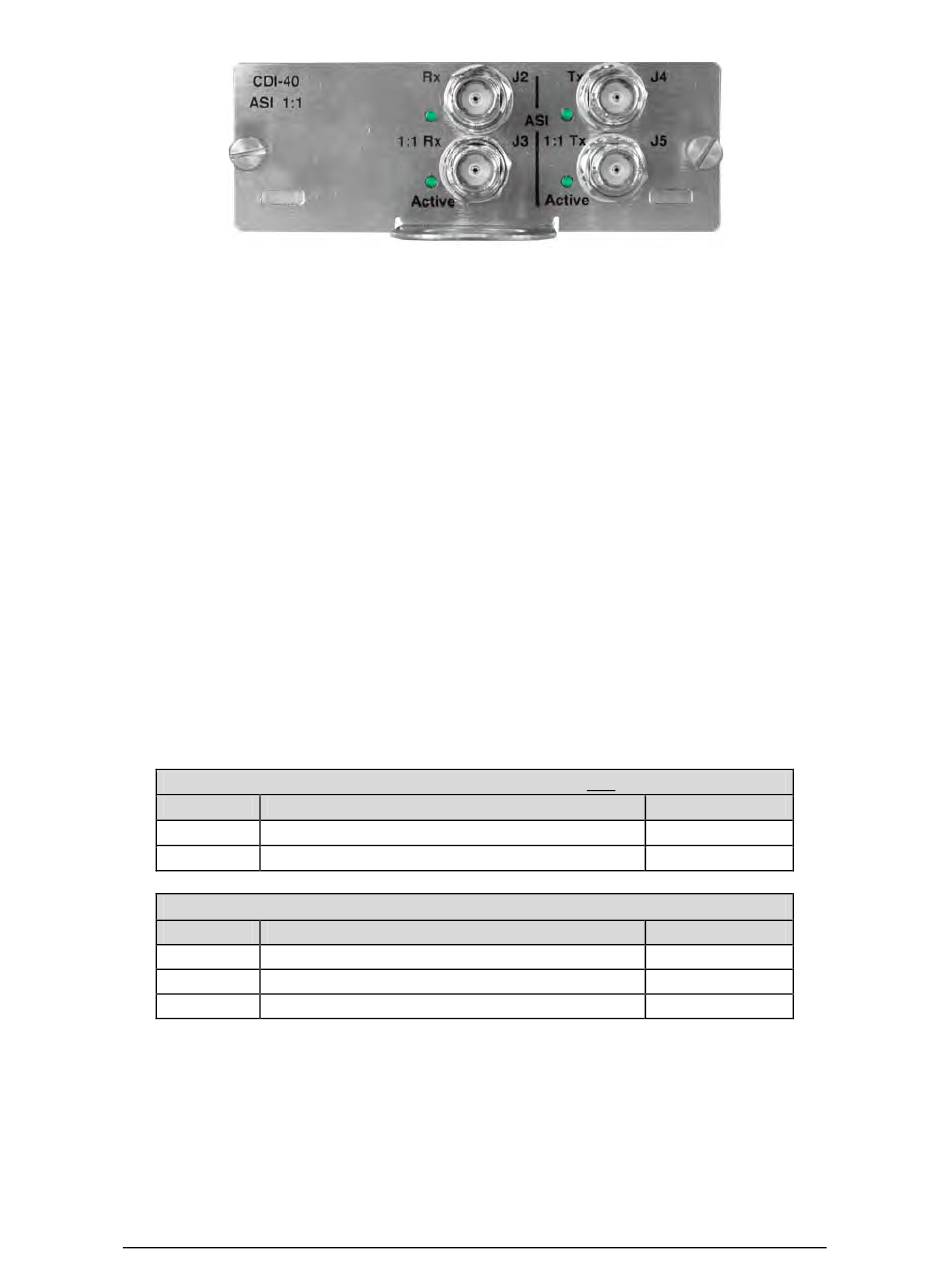

Figure B-4. CDI-40 Rear Panel View (PL/10883-4 Shown)

For the PL/10883-3 Module (standard non-redundant applications):
• Tx-ONLY 1:1 Redundancy – Rx output ('Rx | J2' and '1:1 Rx | J3') is the
standard ASI level.
• Full duplex (Rx/Tx) 1:N Redundancy – Rx output ('Rx | J2' and '1:1 Rx |
J3') is the standard ASI level.
For the PL/10883-4 Module (standard non-redundant applications, excluding '1:1
Rx | J3'):
• Tx only, Rx only or full duplex (Tx and Rx) 1:1 redundancy (see Sect.
B.3.4).
o Rx output 'Rx | J2' is standard ASI level
o Rx output '1:1 Rx | J3' is higher so the standard level is delivered
after a 3 dB combiner (see Sect. B.3.4).
• Full duplex 1:N redundancy (excluding '1:1 Rx | J3').
B.2.1 CDI-40 Connector Pinouts
The CDI-40 ASI Interface connector pinouts are as follows:
PL/10881-3 CDI-40 ASI Interface for Tx-ONLY 1:1 or non-1:1 Applications
Connector Description
J2, J3 Rx Data, BNC Female
J4, J5 Tx Data, BNC female
PL/10881-4 CDI-40 ASI Interface for 1:1 Applications
Connector Description
J2, Rx Data, BNC Female
J3 Rx Data, BNC Female, 1:1 Redundant (High-Level)
J4, J5 Tx Data, BNC female
B–4
MN/CDM710.IOM
Revision 12
Signal Direction
Output
Input
Signal Direction
Output
Output
Input
