CDM-710/L Broadcast Satellite Modem
Appendix D
• CReflashV#_#.zip (the CReflash FTP Utility archive file, where #_# is
utility version).
• CReflash_readme_GBEI1.pdf (the GBEI firmware update procedure
instructions).
8. Confirm availability of the files in the temporary folder.
D.4.2.1 Steps to Run the CReflash FTP Upload Utility
Do these steps:
1. From the temporary folder – Extract the contents of the CReflashV#_#.zip
file. Make sure the "CReflash.exe" utility is accessible in your temporary
file location.

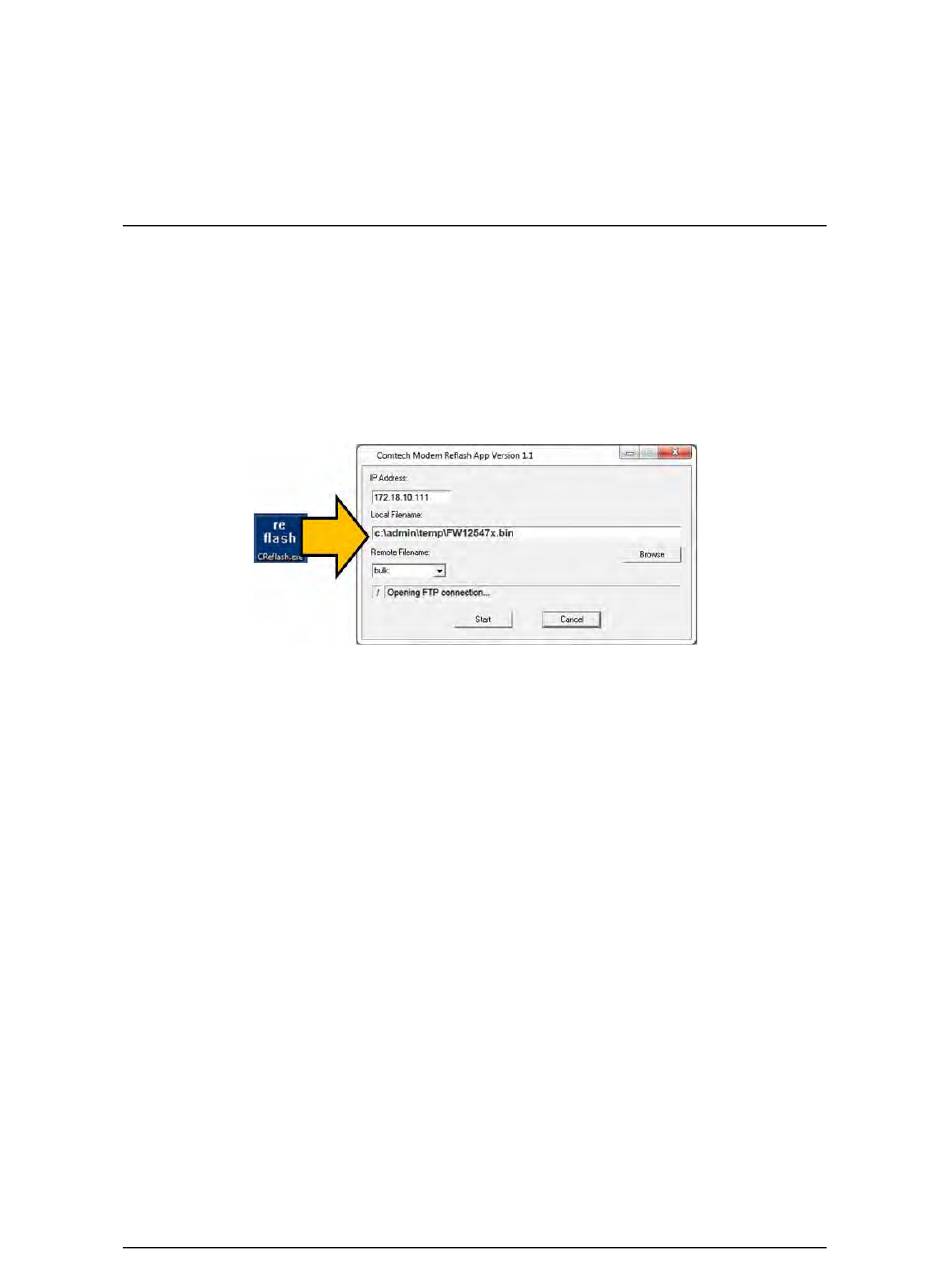

2. Locate, and then double-click, the "CReflash.exe" filename or icon. The
CReflash utility opens:
3. Enter your upload parameters information into CReflash:
a. Left-click in the "IP Address:" text box, and enter the IP Address
assigned to the GBEI.
b. Left-click in the "Local Filename:" text box. Then, click [Browse]
and navigate to the temporary folder created earlier. Click on the
firmware "FW12547x.bin" filename, and then click [Open]. The
filename will appear in the "Local Filename:" text box.
c. Make sure the"Remote Filename" drop-down list remains set to
"bulk:".
4. Click [Start] to begin the upload process. If the information was correctly
entered into CReflash, the utility displays an animated progress bar at the
bottom of the window, along with a series of messages:
• "Opening FTP connection..."
• "Sending data file to modem:"
• "Writing FLASH: # of #"
• "Success!"
