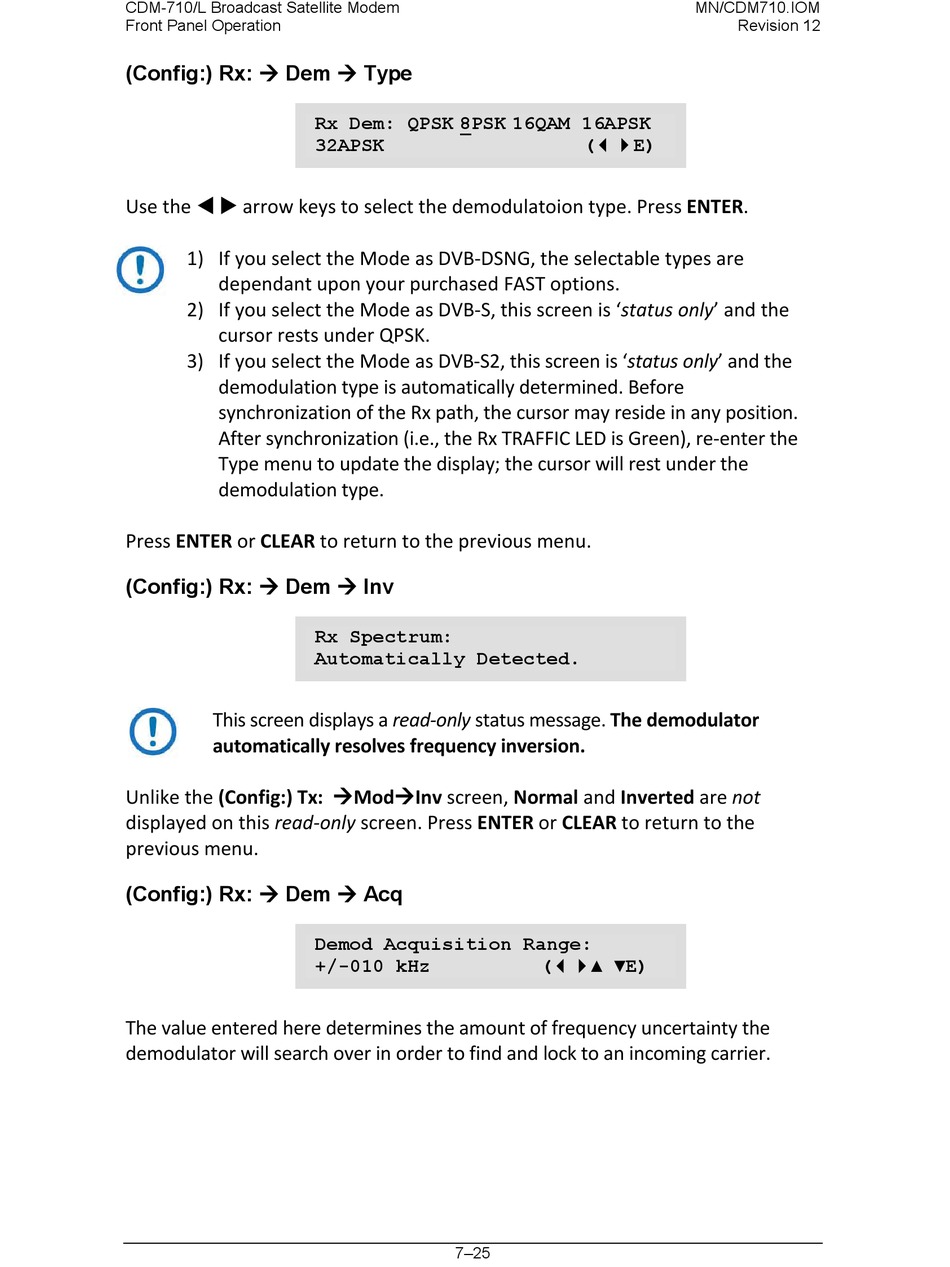

Comtech EF Data CDM-710 Installation And Operation Manual page 131

CDM-710/L Broadcast Satellite Modem
Front Panel Operation
(Config:) Rx:  Dem  Type
Use the   arrow keys to select the demodulatoion type. Press ENTER.
1) If you select the Mode as DVB-DSNG, the selectable types are
dependant upon your purchased FAST options.
2) If you select the Mode as DVB-S, this screen is 'status only' and the
cursor rests under QPSK.
3) If you select the Mode as DVB-S2, this screen is 'status only' and the
demodulation type is automatically determined. Before
synchronization of the Rx path, the cursor may reside in any position.
After synchronization (i.e., the Rx TRAFFIC LED is Green), re-enter the
Type menu to update the display; the cursor will rest under the
demodulation type.
Press ENTER or CLEAR to return to the previous menu.
(Config:) Rx:  Dem  Inv
This screen displays a read-only status message. The demodulator
automatically resolves frequency inversion.
Unlike the (Config:) Tx: ModInv screen, Normal and Inverted are not
displayed on this read-only screen. Press ENTER or CLEAR to return to the
previous menu.
(Config:) Rx:  Dem  Acq
The value entered here determines the amount of frequency uncertainty the
demodulator will search over in order to find and lock to an incoming carrier.
Rx Dem: QPSK 8PSK 16QAM 16APSK
32APSK
Rx Spectrum:
Automatically Detected.
Demod Acquisition Range:
+/-010 kHz
7–25
MN/CDM710.IOM
(E)
(▲ ▼E)
Revision 12
