RJ-45 Connector
007-4566-001

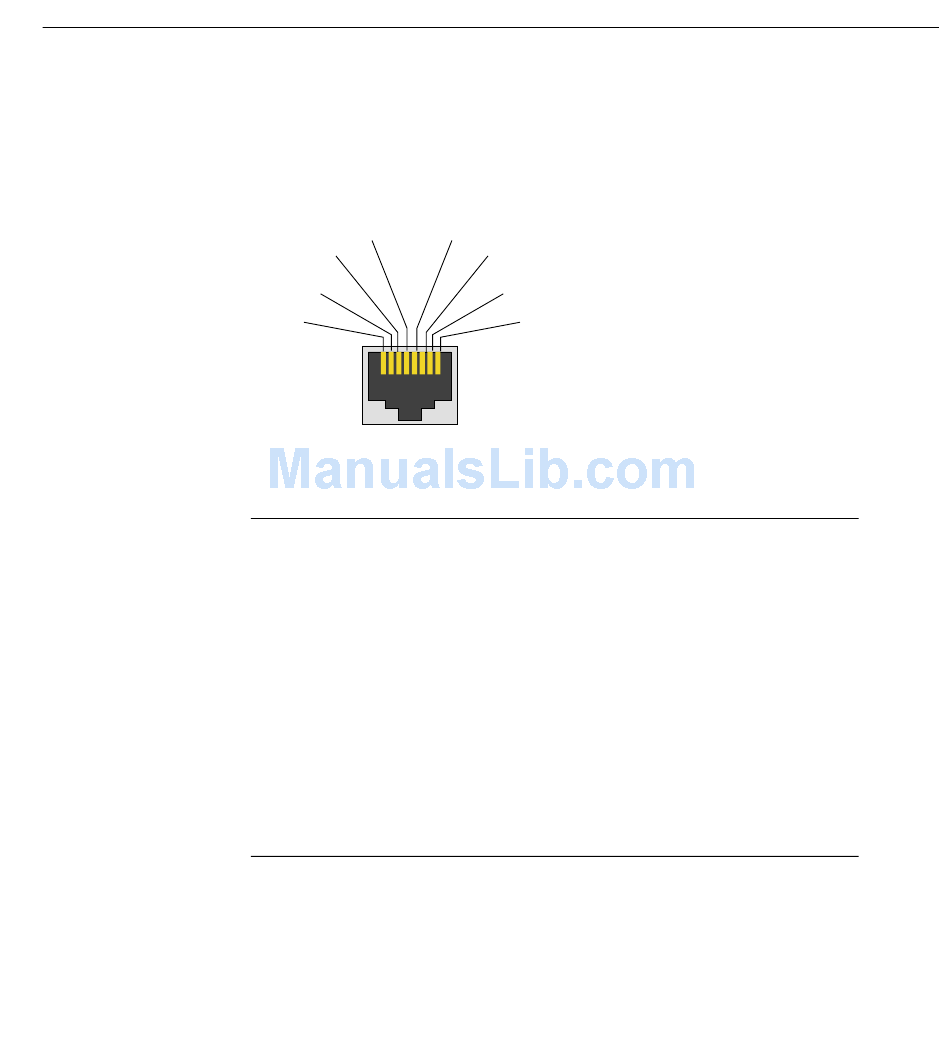

Figure A-8 shows the pin locations for the RJ-45 connector on the IO9 PCI card and the
L2 controller. Table A-21 shows the pin assignments for the RJ-45 connector.
Pin 4
Pin 3
Pin 2
Pin 1
Figure A-8 RJ-45 Connector Pin Assignments
Table A-21 Ethernet Connector Pin Assignments
10/100BaseT
Ethernet Pinouts
Pin Assignment
1 Transmit +
2 Transmit –
3 Receive +
4 Not used
5 Not used
6 Receive –
7 Not used
8 Not used
Pin 5
Pin 6
Pin 7
Pin 8
1000BaseT
Ethernet Pinouts
Pin
1
2
3
4
5
6
7
8
Non-proprietary I/O Port Specifications
Assignment
Transmit/Receive 0+
Transmit/Receive 0–
Transmit/Receive 1+
Transmit/Receive 2+
Transmit/Receive 2–
Transmit/Receive 1–
Transmit/Receive 3+
Transmit/Receive 3–
229
