USB Type B Connector

234
Figure A-12 shows the USB type B connector that is used for the USB L1 port of the
compute module and the MPX module, and the L1 port on the NUMAlink module.
Table A-25 lists the pin assignments.
4 3
1 2

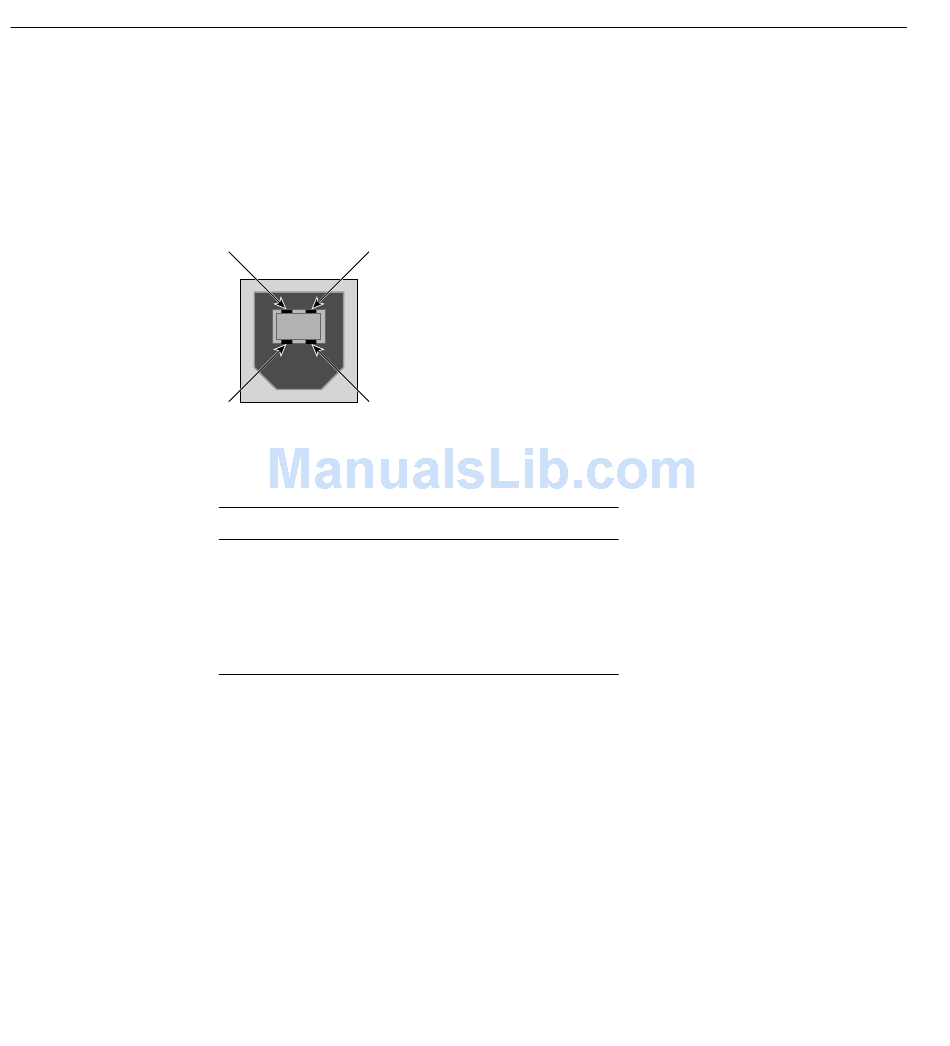

Figure A-12 Pin Number Locations for USB Type B Connector
Pin Assignments for USB Type B Connector
Table A-25
Signal Color
VCC Red
-Data White
+Data Green
Ground Black
Pin Number
1
2
3
4
