Figure 2-2 Base Compute Module Connected To An Expansion Compute; Module - Silicon Graphics Origin 350 User Manual

2: System Overview
Ethernet port
SCSI port
Serial ports
RTI port
RTO port
70
may or may not contain an IO9 PCI card and the devices and connector ports the
IO9 card supports.
Note: Each system requires one IO9 PCI card; this required card resides in the base
compute module. The system can contain additional IO9 cards that reside in the
expansion compute modules; these cards are required only when you want
additional SCSI hard disk drives, DVD-ROMs, and/or the connectors the IO9 card
supports.
For more information about the compute module (base compute module and system
expansion compute module), see "Compute Module" on page 83.
Base compute module
L2
CPU
CPU
L2
3.2 GB/s
1.6 GB/s
1.6 GB/s
L2
CPU
2.4 GB/s
CPU
L2
PCI bus 2 slot 2
PCI bus 2 slot 1
PCI bus 1 slot 2
PCI bus 1 slot 1
DVD-ROM
IO9
SCSI port
USB port
L1 control
Console port

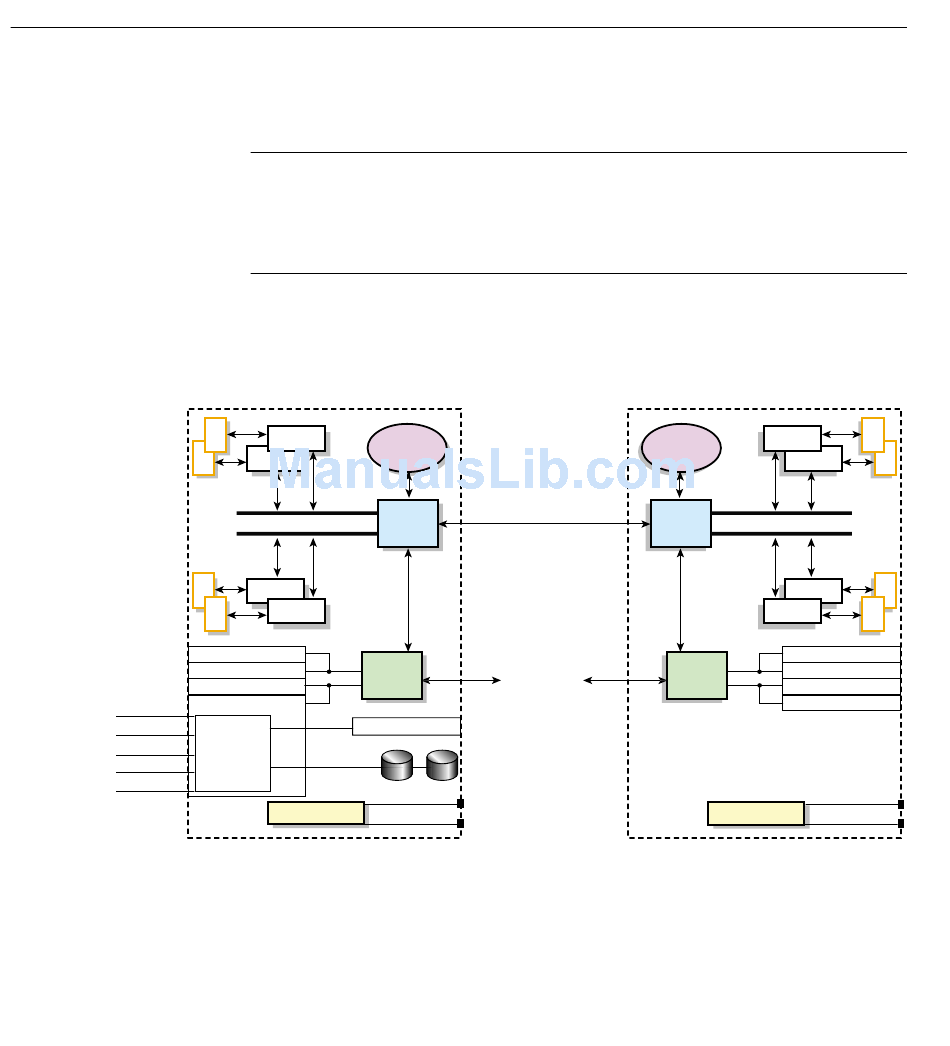

Figure 2-2 Base Compute Module Connected to an Expansion Compute Module
Memory/
Directory
NUMAlink 3 channel
3.2 GB/s full-duplex
(1.6 GB/s each direction)
Bedrock
Xtown2 channel
2.4 GB/s full-duplex
(1.2 GB/s each direction)
PIC
Two disks
Expansion compute module
CPU
Memory/
Directory
CPU
3.2 GB/s
1.6 GB/s
Bedrock
1.6 GB/s
CPU
2.4 GB/s
CPU
PCI bus 2 slot 2
PCI bus 2 slot 1
PIC
PCI bus 1 slot 2
PCI bus 1 slot 1
USB port
L1 control
Console port
007-4566-001
L2
L2
L2
L2
