Installing Clip Nuts in Rack Rails

007-4566-001
Clip nuts secure the modules to the rack. To install the clip nuts, slide the clip nuts over
the fifth hole of the selected 2U of space on each of the front rails. See Figure 1-18 for
details.
8
7
6
5
4
3
2
1

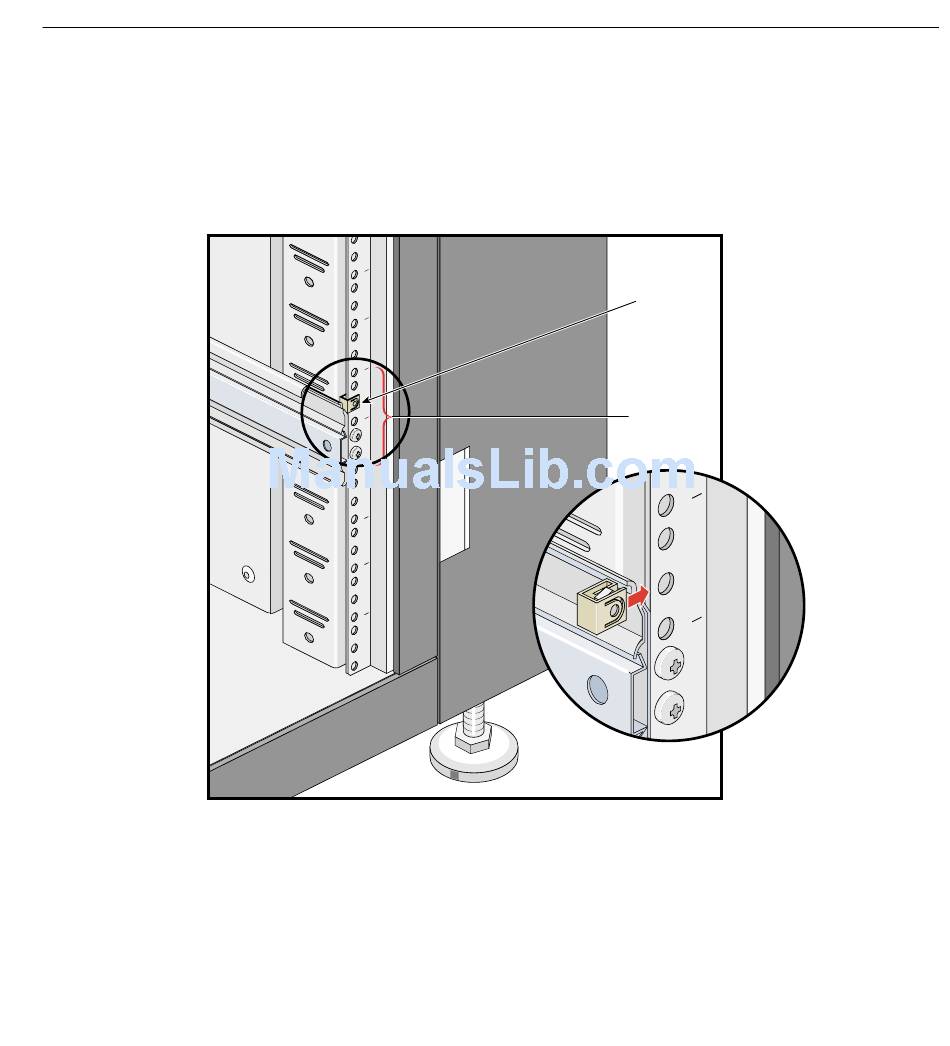

Figure 1-18 Installing Clip Nuts in Rack Rails
Installing the Server System in a Rack
5th hole
2U space
