Rack; Figure 2-24 Unit Numbering Within Rack - Silicon Graphics Origin 350 User Manual

Rack

Expansion compute module
Expansion compute module
NUMAlink module
Expansion compute module
Base compute module
007-4566-001
The Origin 350 server system supports two rack types: a short rack and a tall rack. The
racks are measured in standard units (U); one U is equal to 1.75 in. (4.45 cm). The short
rack is a 17U rack and the tall rack is a 39U rack (see Figure 2-24).
The components within the rack are identified by the lowest U number that they occupy.
For example, the NUMAlink modules shown in Figure 2-24 are identified as U8 in the
short rack and U20 in the tall rack.
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1

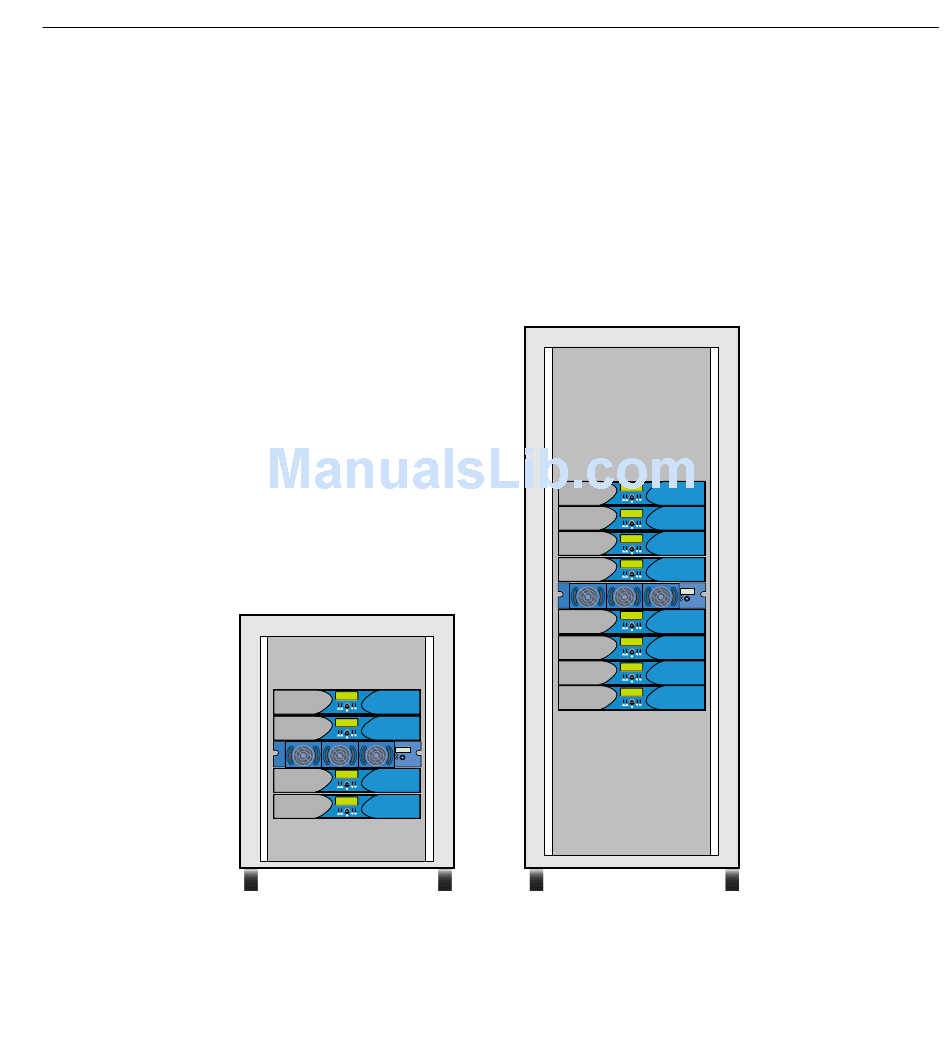

Figure 2-24 Unit Numbering within Rack
