PS/2 Connectors

007-4566-001
Figure A-13 shows the pin locations for the PS/2 keyboard and mouse connectors
located on the base compute module. Table A-26 lists the pin assignments.
3
5
1
2
6
4

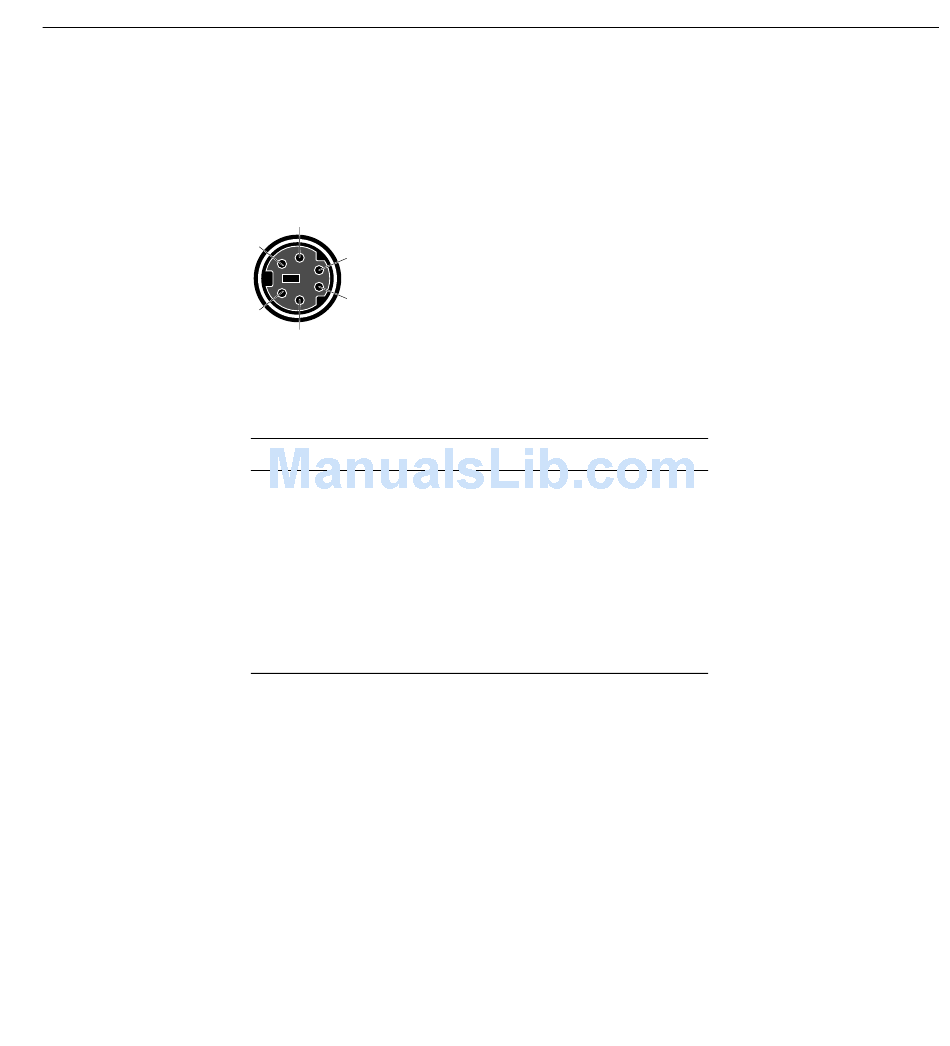

Figure A-13 Pin Number Locations for the PS/2 Keyboard and Mouse Connectors
Table A-26 Pin Assignments for the PS/2 Connectors
Pin Assignment
1 Keyboard/Mouse Data
2 Reserved
3 Ground
4 Keyboard/Mouse Data (+5 V)
5 Keyboard/Mouse clock
6 Reserved
Non-proprietary I/O Port Specifications
235
